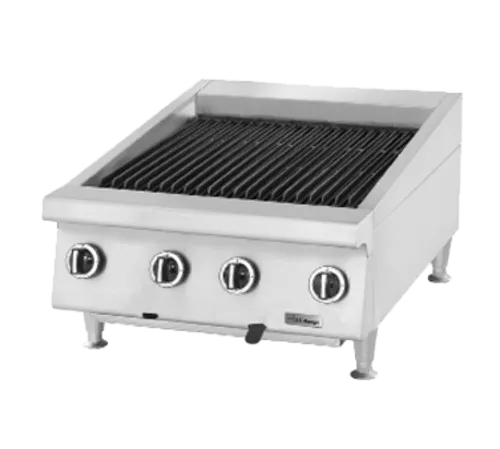

Garland US Range Garland/US Range UTBG24-NR24 23.63" Gas Countertop Heavy Duty Radiant Charbroiler with Manual Control - 72,000 BTU
SKU#: UTBG24-NR24
1/2
Free Freight?
Quick Ship
$4,275.00
Contact us for details
Product Protection
Starting at
- Free after installation performance check
- NOTE! Backguard is required.
- Please see specification sheet for installation clearance requirements
Garland US Range UTBG24-NR24 Specifications
Total BTU | 56000 - 104000 |
---|---|
Installation Type | Countertop |
Burner Style | Grates |
Power Type | Natural or Propane Gas |
With Griddle | No |
Heating Source | Radiant |
Burner Type | Variable hi/lo valve per burners |
Brand | Garland/US Range |
Certifications | NSF |
Number of Burners | 4 |
Control Type | Manual |
BTU | 72,000 BTU |
BTU per Burner | 18,000 BTU |
Controls | Manual |
Heat | Gas |
Usage | Heavy Duty |
Width (in) | 23.63 |
Height (in) | 13 |
Depth (in) | 32 |
Weight | 283.00 |
Additional Information on Garland US Range UTBG24-NR24
gar1090f.pdf parts-manual.pdf garland-performance-check.pdf garland-us-range-utbg24-nr24.specsheet.pdf
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Garland US Range UTBG24-NR24 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Garland US Range UTBG24-NR24 Description
Charbroiler, countertop, gas, 24" W, heavy-duty, non-adjustable cast iron grates, 21-3/16” D broiling grid, (1) variable hi/lo valve per burner, manual controls, crumb tray, reversible cast iron broiler racks in 3” W sections, stainless steel front, sides, back & 3-1/2" front rail, 4" adjustable legs, 72,000 BTU (US Range), CSA, NSF
Charbroiler, countertop, gas, 24" W, heavy-duty, non-adjustable cast iron grates, 21-3/16” D broiling grid, (1) variable hi/lo valve per burner, manual controls, crumb tray, reversible cast iron broiler racks in 3” W sections, stainless steel front, sides, back & 3-1/2" front rail, 4" adjustable legs, 72,000 BTU (US Range), CSA, NSF
Standard Features:
US Range gas radiant broilers are available with adjustable or non-adjustable cooking racks, in five nominal imperial widths from 24”(600mm) to 60”(1500mm) and with model UTBG72-NR72 only 72”(1800mm), 13” (330mm) high and 32” (814mm) deep. Reversible cast iron grates in 3” (76mm) wide sections overall cooking area depth 21 1/2” (546 mm). One 18,000 BTU burner with individual valve control per 6” of broiler width. Large stainless steel catch tray, stainless steel front, sides, and back.
Standard Features:
- 4” SS adjustable legs
- SS front, sides and back
- SS large capacity crumb tray
- 21-1/2” (546mm) broiling grid depth
- One two position hi/lo valve control for each burner
- 2-position adjustable broiler grates or fixed-position nonadjustable grates
- SS front rail; 4” (102mm) deep overall with 3 1/2” (89mm) top work surface
- Reversible cast iron broiler racks in 3” wide sections with 1/8” and 3/16” brand marks
- One cast iron radiant over a 18,000 BTU stainless steel burner for every 6” of broiler width
- 3/4” NPT gas regulator on all 24” to 60” wide models with “T” gas manifold connection for straight through rear or flush-mount gas connections
- 1” NPT gas regulator for GTBG72-NR72 model only. Has “T” gas manifold connection for straight through or nearly flush-mount gas connections
- SS spatter-guard
- Broiler grate cleaning tool
- Stainless stand with solid top and holding shelves, and adjustable feet
- Stainless stand with solid top and holding shelves, and casters, (locking front)
- Removable wire holding shelf for spatter guards available for 24” and 36” models
- Set of reversible cast iron broiler racks with 4 brand marks per 3” section. Brand 3/16” wide.
- SS skirt for dais/counter surface mounting. The stainless steel skirt will reduce overall unit height by 1 3/4” (44.45mm)
- Fajita broiling grate: 9” wide, replaces 3 standard grate sections on the left or right end of the broiler. Limit one per broiler
- Removable stainless steel attachment condiment rail with universal 1/9 or 1/3 food pan cut outs (pans supplied by others)
US Range gas radiant broilers are available with adjustable or non-adjustable cooking racks, in five nominal imperial widths from 24”(600mm) to 60”(1500mm) and with model UTBG72-NR72 only 72”(1800mm), 13” (330mm) high and 32” (814mm) deep. Reversible cast iron grates in 3” (76mm) wide sections overall cooking area depth 21 1/2” (546 mm). One 18,000 BTU burner with individual valve control per 6” of broiler width. Large stainless steel catch tray, stainless steel front, sides, and back.
