Glastender C-IBA-24 CHOICE Underbar Ice Bin
C-IBA-24
Photo of the Glastender C-IBA-24 CHOICE Underbar Ice Bin
| Specs | |
|---|---|
| Brand | Glastender |
| Width (in) | 24.00 |
| Height (in) | 30.00 |
| Depth (in) | 19.00 |
| Weight | 70.00 |
You May Also Need
Additional Information

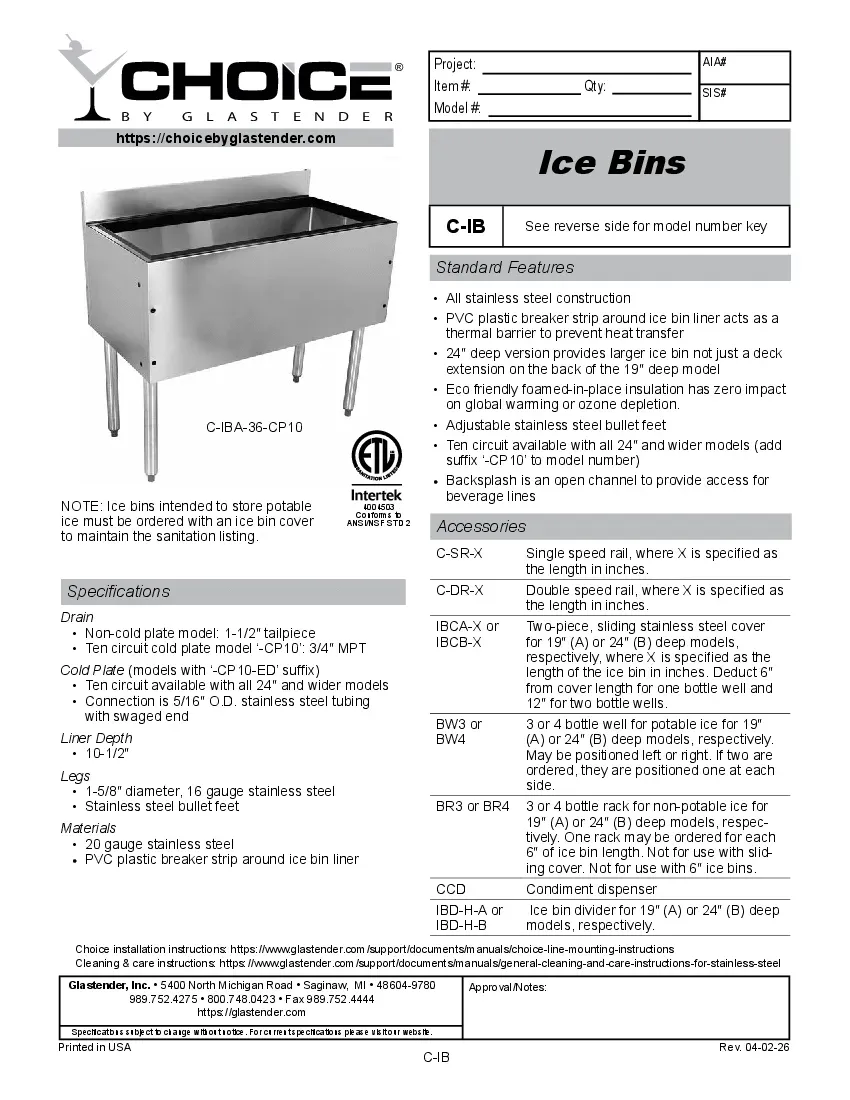

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Description
CHOICE Underbar Ice Bin, 24"W x 19"D, 67-lb. ice capacity, backsplash with open channel for beverage line access, 10-1/2" deep bin liner, PVC plastic breaker strip around ice bin liner, stainless steel construction, adjustable thermoplastic bullet feet, ETL-Sanitation (NOTE: Made to order, not returnable) Standard Features:
- All stainless steel construction
- Adjustable thermoplastic bullet feet
- CFC free foamed-in-place insulation
- Backsplash is an open channel to provide access for beverage lines
- Ten circuit available with all 24″ and wider models (add suffix ‘-CP10’ to model number)
- PVC plastic breaker strip around ice bin liner acts as a thermal barrier to prevent heat transfer
- 24″ deep version provides larger ice bin not just a deck extension on the back of the 19″ deep model
- NOTE: Ice bins intended to store potable ice must be ordered with an ice bin cover to maintain the sanitation listing.
Accessories
- Condiment dispenser
- Single speed rail, where X is specified as the length in inches.
- Double speed rail, where X is specified as the length in inches.
- Ice bin divider for 19ʺ (A) or 24ʺ (B) deep models, respectively.
- 3 or 4 bottle well for potable ice for 19ʺ (A) or 24ʺ (B) deep models, respectively. May be positioned left or right. If two are ordered, they are positioned one at each side.
- 3 or 4 bottle rack for non-potable ice for 19ʺ (A) or 24ʺ (B) deep models, respectively. One rack may be ordered for each 6ʺ of ice bin length. Not for use with sliding cover. Not for use with 6ʺ ice bins.
- Two-piece, sliding stainless steel cover for 19ʺ (A) or 24ʺ (B) deep models, respectively, where X is specified as the length of the ice bin in inches. Deduct 6ʺ from cover length for one bottle well and 12ʺ for two bottle wells.
Specifications
- Liner Depth
- 10-1/2″
- Legs
- Thermoplastic bullet feet
- 1-5/8″ diameter, 16 gauge stainless steel
- Materials
- 20 gauge stainless steel
- PVC plastic breaker strip around ice bin liner
- Drain
- Non-cold plate model: 1-1/2″ tailpiece
- Ten circuit cold plate model ‘-CP10’: 3/4″ MPT
- Cold Plate (models with ‘-CP10-ED’ suffix)
- Ten circuit available with all 24″ and wider models
- Connection is 5/16″ O.D. stainless steel tubing with swaged end
