Glastender IBA-24-ED Extra Deep Underbar Ice Bin
IBA-24-ED

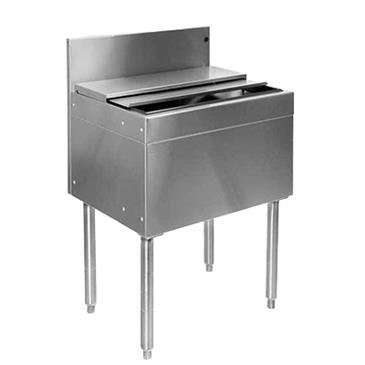

Photo of the Glastender IBA-24-ED Extra Deep Underbar Ice Bin
| Specs | |
|---|---|
| Brand | Glastender |
| Width (in) | 24.00 |
| Height (in) | 37.00 |
| Depth (in) | 19.00 |
| Weight | 80.00 |
You May Also Need
Additional Information
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Description
Extra Deep Underbar Ice Bin, 24"W x 19"D, 92 lbs. ice capacity, 7"H backsplash, 14-1/2" deep bin liner, ABS plastic breaker strip around ice bin liner, includes sliding stainless steel bin cover, stainless steel construction, stainless steel legs with adjustable stainless steel bullet feet, ETL-Sanitation Standard Features:
- Sliding stainless steel cover
- All stainless steel construction
- Adjustable stainless steel bullet feet
- CFC free foamed-in-place insulation
- One-piece, seamless top and backsplash
- Available in 6″ incremental lengths from 6″ to 48″
- Extra deep version is optional (add suffix ‘-ED’ to model number)
- Ten circuit available with all 24″ and wider models (add suffix ‘-CP10’ to model number )
- 24″ deep version provides larger ice bin not just a deck extension on the back of the 19″ deep model
- Tubing chase available centered in backsplash of 12″ and larger models. Specify accessory model #TC-BS.
- PVC plastic breaker strip around ice bin liner: creates 5/16″ raised edge around liner, acts as thermal barrier to prevent heat transfer, and makes the cover slide easier.
Specifications
- Liner Depth
- 10-1/2″ standard
- 14-1/2″ for extra deep models
- Legs
- Stainless steel bullet feet
- 1-5/8″ diameter 16 gauge stainless steel
- Ice Capacity
- “A” depth standard = 2.79 lbs X length
- “B” depth standard = 3.54 lbs X length
- “A” depth extra deep = 3.85 lbs X length
- “B” depth extra deep = 4.89 lbs X length
- Materials
- 20 gauge stainless steel
- PVC plastic breaker strip around opening of ice bin liner
- Drain
- Non-cold plate model: 1-1/2″ tailpiece
- 2-3/8″ by 4″ hole centered in backsplash
- Ten circuit cold plate model ‘-CP10’: 3/4″ MPT Tubing Chase in Backsplash (Optional)
- Cover
- Ten circuit available with all 24″ and wider models
- Connection is 5/16″ O.D. stainless steel tubing with swaged end
- Two-piece sliding cover, 20 gauge stainless steel, included with all models Cold Plate (Models with ‘-CP10’ suffix)
