Jade Range JMRH-36B Commercial Range, 36" W with (1) 36" Charbroiler and Modular Base - 90,000 BTU
MPN#: JMRH-36B

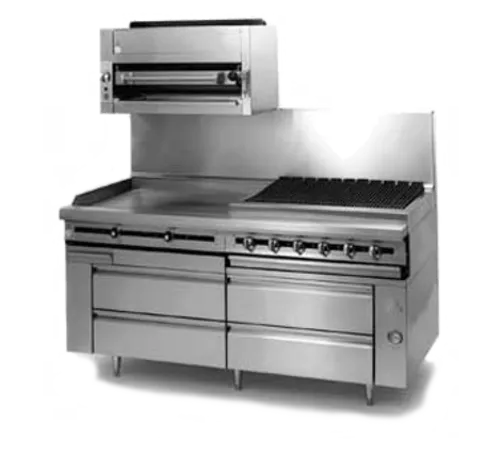

Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$9,095.44
Product Protection
Starting at
Warranty
NOTE: See model "WARRANTY SHEET" for more warranty information
One year parts & NO labor warranty on international orders
Two years part & labor warranty - Includes Five year warranty parts on oven door (parts only) & Ten year warranty on range frame (parts only), standard
Jade Range JMRH-36B Accessories
Jade Range R-36 Titan™ High Back Riser
$1,223.66
Jade Range R-48 Titan™ High Back Riser
$1,421.90
Jade Range R-54 Titan™ High Back Riser
$1,562.32
Jade Range R-60 Titan™ High Back Riser
$1,699.20
Jade Range R-72 Titan™ High Back Riser
$1,909.24
Jade Range DR-36 Titan™ Flue Riser
$1,962.34
Jade Range DR-48 Titan™ Flue Riser
$2,218.40
Jade Range DR-54 Titan™ Flue Riser
$2,551.16
Jade Range DR-60 Titan™ Flue Riser
$2,737.60
Jade Range DR-72 Titan™ Flue Riser
$2,999.56
Jade Range SR-36 Titan™ Short Back Riser
$1,040.76
Jade Range SR-42 Titan™ Short Back Riser
$1,234.28
Jade Range SR-48 Titan™ Short Back Riser
$1,273.22
Jade Range SR-60 Titan™ Short Back Riser
$1,399.48
Jade Range SR-72 Titan™ Short Back Riser
$1,545.80
Description
Jade Range JMRH-36B Description
Titan™ Heavy Duty Range, gas, 36", modular, charbroiler, cast iron radiants & grate, infinite manual controls, (2) drip trays, stainless steel 6" plate shelf, front, sides, stub back & tray bed, 90,000 BTU, CSAus, NSF
Titan™ Heavy Duty Commercial Gas Range, 36", modular, charbroiler, cast iron radiants & grate, infinite manual controls, (2) drip trays, stainless steel 6" plate shelf, front, sides, stub back & tray bed, 90,000 BTU, CSAus, NSF
Standard Features:
- Stainless steel tray bed
- Stainless steel 6" plate shelf
- Heavy duty cast iron burner radiants
- Stainless steel gas tubing throughout
- 14 gauge all welded body construction
- Variable size multi-point gas connection
- 12 gauge all welded firebox construction
- One 15,000 BTU/hr. burner every 6" broiler
- Stainless steel front, top, sides and stub back
- Back and bottom finished with heat resistant black paint
- Two separate 14 gauge steel drip pans to control flare ups
- Infinite control manual gas valves at each burner for precise heat control
- 3/4" gas regulator (shipped loose, must be installed for proper operation)
- Heavy duty cast iron top grates with built-in grease guides that channel away excess fat and reduce flaring
Available Options
- Stainless steel sides
- Fish grate (round bars)
- Stainless steel high riser
- Stainless steel double high riser
- Stainless steel tubular high shelf
- Cap and cover manifold: Left & Right
- Stainless steel tubular double high shelf
- Common plate shelf with Item(s) Model(s)
Accessories
- 1" gas pressure regulator (specify gas type)
- 1-1/4" gas pressure regulator (specify gas type)
- 6" casters, front two locking (5" diameter wheel)
- 36" flex hose with quick disconnect (3/4" connection)
- 48" flex hose with quick disconnect (3/4" connection)
Options
Q & A
Jade Range JMRH-36B Specifications
| Control Type | Infinite Manual |
|---|---|
| Installation Type | Modular |
| Range Base Style | Modular Base |
| Brand | Jade Range |
| Certifications | NSF |
| BTU | 90,000 BTU |
| Range Configuration | (1) 36" Charbroiler |
| Width (in) | 36.00 |
| Height (in) | 36.50 |
| Depth (in) | 36.25 |
| Weight | 350.00 |
Additional Information on Jade Range JMRH-36B
Compare Jade Range JMRH-36B to Other Products
Rating
Price
Width (in)
Depth (in)
Height (in)
Installation Type
Range Base Style
Range Configuration
Quantity of Burners
BTU
Price
$9,095.44 36.00
36.25
36.50
Modular
Modular Base
(1) 36" Charbroiler
90,000 BTU
Price
$12,277.00 36
38
42
Freestanding
Standard Oven
(1) 18" Griddle & (1) 18" Hot Top
120,000 BTU
Price
$12,277.00 36
38
42
Freestanding
Standard Oven
(1) 36" Griddle
130,000 BTU
Price
$12,277.00 36
38
42
Freestanding
Standard Oven
(1) 18" Griddle
2 Burners
150,000 BTU
Price
$9,129.00 36
37.5
13.5
Modular
Modular Base
(1) 36" Charbroiler
96,000 BTU
Price
$9,081.28 36.00
38.00
36.50
Modular
Modular Base
(2) 18" French Hot Tops
60,000 BTU
