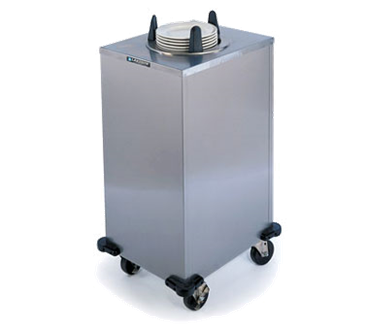

Lakeside Manufacturing Manufacturing 6112 Dish Dispenser

Made in USA
Lakeside Manufacturing Manufacturing 6112 Dish Dispenser
Regularly Stocked
Free Freight
Price $2,102

You will earn 2,102 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $52.72/mo.

Request a Quote

  • There is a $375 min. order requirement from this manufacturer

BrandLakeside Manufacturing
Made inUSA
Dish Diameter11.3 - 12.3 Inches
Voltage120 Volts
Wattage900 Watts
Width (in)22.50
Height (in)40.00
Depth (in)18.50
You May Also Need

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Dish Dispenser, heated, cabinet style, enclosed base, mobile, (1) self-leveling dish dispensing tubes, 11-1/4" to 12-1/4" diameter dish size, stainless steel construction, 4" Lake-GlideĀ® swivel casters (2) with brakes, 6' coiled cord with NEMA 5-15P, NSF, UL, Made in USA
Standard Features:
Easy Field Adjustment For Plate Dispensing Height Without Tools
  • Benefits
    • Reduce breakage
    • Easy to clean and sanitize
    • Rolls to where dispensing is needed
  • Features
    • All welded stainless steel construction
    • Separate thermostatic heat controls for each dispenser
    • Dispensers are field adjustable for dispensing level without tools
  • Casters
    • Heavy-duty 4” plate-mount, 2 each with brake
Optional Accessories:
  • Perimeter bumper
  • 208/240 VAC 60HZ
  • Stainless steel dish covers
  • Push handle, vertical one-piece
  • 220 VAC 50Hz (not available on four stack models)
Mobile Cabinet: Mobile cabinets shall be of all-welded stainless steel construction. Cabinets shall have 18-gauge top and 20-gauge sides and bottom and shall include bottom corner bumpers. Cabinet bottom shall have center clean out hole. Casters shall be 4” (102 mm) diameter extra-load swivel (two with locking brake). Unit shall feature a heavy-duty independent undercarriage frame of galvanized steel to which casters shall be mounted. Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into mobile cabinet top openings. Dispensers shall hang from cabinet opening by an 18-gauge flange ring, and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage, to provide adjustment without tools for different weight dishes. Each dispenser shall have a vertical stacking capacity of 25” (635 mm).
Heating Unit: Unit shall be 120 VAC 60 Hz and shall have 6’ (1829 mm) coiled power supply cord with 5-15P NEMA plug (5-20P on Models 6409 and 6410) for 120 VAC. Cabinet shall have interior mounted electrical junction box with twist-lock receptacles for individual power to each dispenser. Dispenser tubes shall be fully enclosed in 22-gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100° F (38° C) and 175° F (79° C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Cabinet and dispenser tubes shall be UL listed.
Perimeter bumper


Two-pole with ground pin plug



This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.



UL has tested representative samples of this product and determined that the product meets specific, defined requirements.

Customer Reviews

There are no reviews yet for this product.
