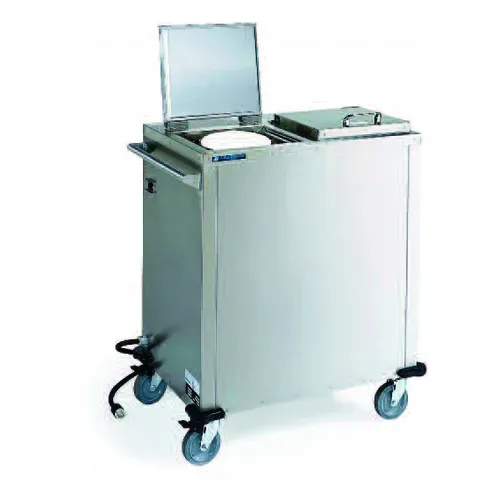

Lakeside Manufacturing 7511 Stainless Steel Enclosed Base 2 Stack Heated Mobile Plate Dish Dispenser for 7" to 10-1/4" Dishes
MPN#: 7511
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$7,261.98
Login or add to cart to see our price!
Attention!
Order before 6/30/2025 to avoid price increases!
Order before 6/30/2025 to avoid price increases!
Product Protection
Starting at
Description
Lakeside Manufacturing 7511 Description
Convection Heated Plate Dispenser, enclosed base, mobile, (2) self-leveling platforms, maximum plate size 10-1/4" diameter, stainless steel construction, 5" swivel casters (2) with brakes, 6' cord & plug, NSF, UL, Made in USA
Convection Heated Plate Dispenser, enclosed base, mobile, (2) self-leveling platforms, maximum plate size 10-1/4" diameter, stainless steel construction, 5" swivel casters (2) with brakes, 6' cord & plug, NSF, UL, Made in USA
Standard Features:
Efficient Heating for High Volume Applications
- Push handle for easy mobility.
- Accommodates plates ranging from 7” to 10-1/4” diameter.
- Dispenser cabinet is insulated for efficiency and energy savings.
- Heats dishes quickly, evenly, and safely with even converted air flow.
- Self-leveling dispensers are removable for convenient cleaning and adjustment.
- Maneuvers easily on four each, 5” Lake-Glide® casters - all swivel, 2 with brake.
Specifications:
CABINET: Exterior shall be constructed on 18-gauge 300 Series stainless steel. Inner wall of cabinet shall be constructed of .063 high-strength aluminum. All sides and top of cabinet shall be insulated with fiberglass for heat retention and energy efficiency. Cabinet lids shall feature hat channel design that does not require a gasket. The heating system shall be thermostatically controlled, using forced air with a 3200-watt element to heat the cabinet interior compartment. Unit shall be 208/220 VAC, 60 Hz and shall feature a 6´ (1829 mm) long 20 amp power cord with NEMA 6-20P plug. Cabinet shall be mounted on four 5” extra-load swivel casters (two with brake) with non-marking cushion tread wheel. Unit shall be UL and NSF listed.
DISPENSERS: Self-leveling dispensers shall be constructed of stainless steel with self-lubricating bearings that ride over vertical guide rods to prevent carriage binding. Self-leveling tension shall be adjusted without tools by hooking or unhooking tension springs from the carriage. Carriage shall have a vertical movement of 24” (610 mm), and shall accommodate a 27” (686 mm) high stack of plates that are between 7” and 10-1/4” in diameter. Dispensers shall feature lift-out handles for easy removal from cabinet for cleaning and adjustment.
Options
Q & A
Lakeside Manufacturing 7511 Specifications
| Model | Cabinet |
|---|---|
| Base Style | Enclosed |
| Heat Type | Heated |
| Series | Lake-GlideВ® |
| Dispenser Type | Platter Dispenser |
| Cube | 24 |
| Brand | Lakeside Manufacturing |
| Made in | USA |
| Number of Compartments | 2 |
| Certifications | NSF |
| Type | Mobile |
| Dish Diameter | 7" to 10-1/4" |
| Material | Stainless Steel |
| Voltage | 208 - 220 Volts |
| Wattage | 3,200 Watts |
| Width (in) | 23.75 |
| Height (in) | 42.75 |
| Depth (in) | 33.38 |
| Weight | 260.00 |
