Lakeside Manufacturing Manufacturing 8205 Dish Dispenser

Made in USA
Lakeside Manufacturing Manufacturing 8205 Dish Dispenser
Free Freight
Retail Price $2,312
Price $2,184

FINANCEFOR $54.77/mo.

  • There is a $375 min. order requirement from this manufacturer
BrandLakeside Manufacturing
Made inUSA
Dish Diameter5.1 - 5.8 Inches
Temperature Range100 - 175 Degrees F
Voltage120 Volts
Wattage600 Watts
Width (in)35.50
Height (in)38.31
Depth (in)17.75
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

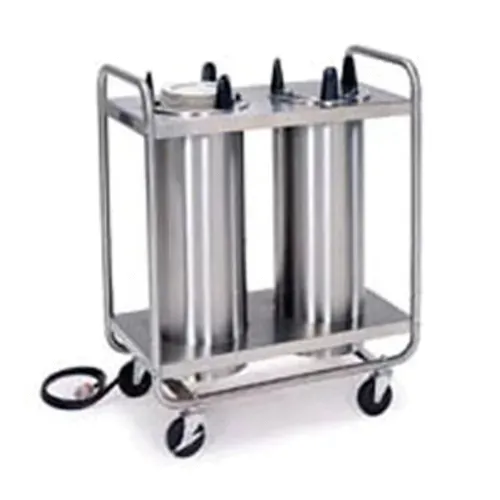

Dish Dispenser, heated, open tubular frame, mobile, (2) self-leveling dish dispensing tubes, Easy-Glideā„¢ design, maximum dish size 5-3/4" diameter, stainless steel construction, 4" swivel casters (2) with brakes, 6' cord with NEMA 5-15P, NSF, UL listed
Standard Features:
Economical Tubular Frame Design
  • 4” Lake-Glide® casters - all swivel, 2 each with brake.
  • Easy-Glide ™ design provides quiet, nonstick operation.
  • Easy field adjustment for plate height, no tools required.
  • High-strength easy-to-clean stainless steel tubular frame.
  • Each heated dispenser features its own thermostatic control.
  • Height adjustment springs detach and attach from inside the dispenser. No need to remove dispenser from mobile unit.
Optional Accessories:
  • 220 VAC 50 Hz
  • 208/240 VAC 60Hz
  • Stainless steel dispenser covers
  • Round corner bumpers (set of four)
Mobile Frame: Mobile frame shall be of 18-gauge wall stainless steel 1” tubing. Tubing frame shall be of "U-frame" design with bottom tie bars for extra strength. Units shall have 18-gauge top and bottom shelves to provide dispenser tube stability. Top and bottom shelves shall be bolted to tubular frame. Casters shall be 4” (102 mm) diameter extra-load swivel stem type (two with locking brake). Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into mobile unit top and bottom shelf openings. Dispensers shall be fully enclosed in 22-gauge stainless steel, shall hang from top shelf opening by an 18-gauge flange ring, and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage without tools to provide adjustment for different weight dishes. Each dispenser shall have a vertical stacking capacity of 25” (635 mm).
Heating System: Unit shall be 120 VAC 60 Hz and shall have 6’ (1829 mm) power supply cord with 5-15P (5-20P on Models 8409 and 8410) NEMA plug for 120 VAC. Mobile frame shall have electrical junction box mounted under bottom shelf, with hard wired power cable to each dispenser. Dispenser tubes shall have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100°F (38°C) and 175°F (79°C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40°F (22°C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Mobile tubular frame and dispenser tubes shall be UL listed.
