Lakeside Manufacturing Manufacturing S6211 Dish Dispenser

Made in USA
Lakeside Manufacturing Manufacturing S6211 Dish Dispenser
Regularly Stocked
Free Freight
Price $3,348

You will earn 3,348 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $83.97/mo.

  • There is a $375 min. order requirement from this manufacturer

BrandLakeside Manufacturing
Made inUSA
Dish Diameter9.5 - 10.3 Inches
Temperature Range100 - 175 Degrees F
Voltage120 Volts
Wattage900 Watts
Width (in)36.50
Height (in)39.88
Depth (in)20.75
Length (in)36 1/2
Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

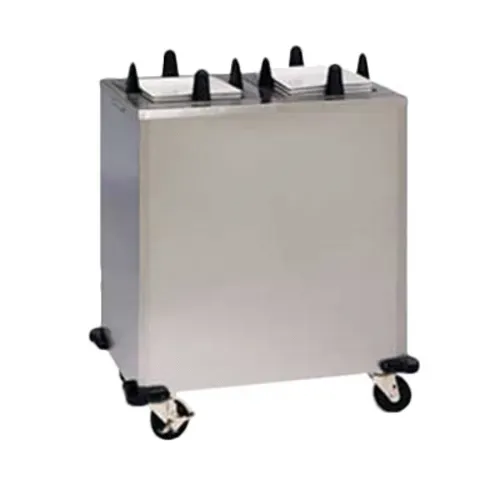

Dish Dispenser, heated mobile, (2) self-leveling dish dispensing tubes, Easy-Glideā„¢ design, square plate size 10-1/2" to 11-1/4", stainless steel construction, 4" casters (2) with brakes, 6'coiled cord with NEMA L5-15P, NSF, UL, Made in USA
Standard Features:
Easy Field Adjustment For Plate Dispensing Height Without Tools.
  • All-welded stainless steel construction.
  • Models available to fit square plates from 5” to 12”.
  • Corner bumpers protect cabinet, furniture, and doors.
  • Easy-Glide™ design provides quiet, non-stick operation.
  • 4” Lake-Glide® casters - all swivel, 2 with brake, extra-load.
Optional Accessories:
  • 220 VAC 50Hz
  • 208/240 VAC 60Hz
  • Bottom perimeter bumper
  • 8” (203 mm) vertical one-piece push handle
Mobile Cabinet: Mobile cabinets shall be of all-welded stainless steel construction. Cabinets shall have 18-gauge top and 20-gauge sides and bottom and shall include bottom corner bumpers. Cabinet bottom shall have center clean out hole. Casters shall be 4” (102 mm) diameter extra-load swivel (two with locking brake). Unit shall feature a heavy-duty independent undercarriage frame of galvanized steel to which casters shall be mounted. Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into mobile cabinet top openings. Dispensers shall hang from cabinet opening by an 14-gauge flange rim, and feature four each 18-gauge vertical side supports welded to 18-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 20-gauge removable dish platform. Dispensers shall feature flange mounted extension springs on two sides, which are detachable from the dish carriage, to provide adjustment without tools for different weight dishes. Each dispenser shall have a vertical stacking capacity of 25” (635 mm).
Heated Models Only: Unit shall be 120 VAC 60 Hz and shall have 6’ (1829 mm) coiled power supply cord with L5-15P NEMA plug for 120 VAC. Cabinet shall have interior mounted electrical junction box with twistlock receptacles for individual power to each dispenser. Dispenser tubes shall be fully enclosed in 22-gauge stainless steel, and have a circular bottom mounted 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100° F (38° C) and 175° F (79° C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Cabinet and dispenser tubes shall be UL listed.
Perimeter bumper
