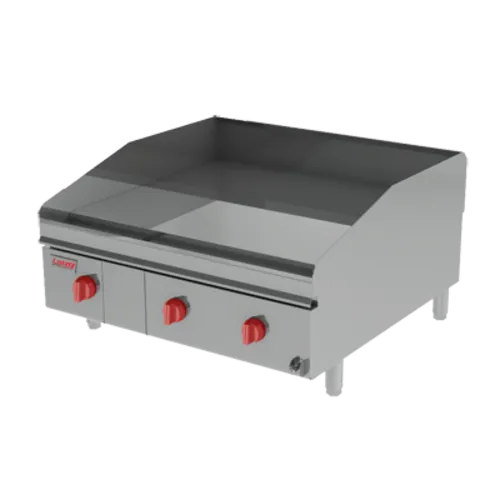

Lang Manufacturing 224ZTD LG Series 24'' Countertop Gas Griddle with Thermostatic Controls - 70,000 BTU
MPN#: 224ZTD
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Description
Lang Manufacturing 224ZTD Description
LG Series Commercial Griddle, gas, countertop, 24" W x 30" D cooking surface, 1" thick smooth steel griddle plate, 220° - 550° F embeded elctric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" stainless steel legs with 1-5/8" adjustment, 70,000 BTU, 120v/60/1-ph, NEMA 5-15P, cETLus, ETL-Sanitation
LG Series Commercial Countertop Griddle, gas, countertop, 24" W x 30" D cooking surface, 1" thick smooth steel griddle plate, 220° - 550° F embeded elctric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" stainless steel legs with 1-5/8" adjustment, 70,000 BTU, 120v/60/1-ph, NEMA 5-15P, cETLus, ETL-Sanitation (more commercial grills, commercial restaurant ranges, and cooking equipment available)
Construction Features:
Construction Features:
- Double wall base construction
- Heat shield provided below burners
- Aluminized burner system spaced every 12”
- 4” adjustable legs provided [Stand option available]
- 1” thick precision machined, polished steel cooking surface
- Full front 3-1/2” wide X 1” deep stainless steel grease trough
- Continuously bottom welded 5-1/2” high rear & side splash shields
- One or two (48”, 60” & 72” models) drops provided to one or two grease drawers
Performance Features
- Thick griddle plate reduces hot & cold spots and retains heat
- Double wall construction and heat shells reduce side, back and bottom clearances
- Highly polished surface and continuously welded splash and grease trough speed cleanup
- Electronic spark ignition, double wall construction and heats shields increase operating efficiency
Control Package (Specify one)
- ACCU-TEMP™ Thermostat Controls [-T]
- Snap-action thermostats
- Electronic ignition, griddle-ON switch
- 200˚ and 550˚F temperature control range
- Independent temperature control every 12”
- SELECTRONIC™ Solid State Controls [-S]
- 175˚ to 450˚F temperature control
- Control for every 12” of cook surface
- RTD probe reacts to a 1˚F temperature change
- Area sensitive Resistance Temperature Detector system
Q & A
Certifications
Lang Manufacturing 224ZTD Certifications
5-15P
Two-pole with ground pin plug
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Lang Manufacturing 224ZTD Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 56000 - 104000 |
| Installation Type | Countertop |
| Series | LG Series |
| Power Type | Natural or Propane Gas |
| Construction | Stainless Steel |
| Cooking Surface Material | Stainless Steel |
| With Griddle | Yes |
| Certifications | 5-15P, ETL, ETL-Sanitation |
| Number of Burners | 3 |
| Control Type | Thermostatic |
| BTU | 70,000 BTU |
| Heat | Gas |
| Usage | Standard Duty |
| Voltage | 120 Volts |
