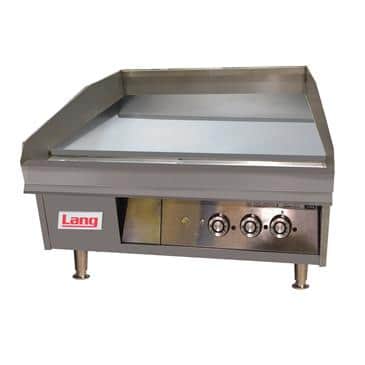

Lang Manufacturing 236T LG Series 36'' Countertop Gas Griddle with Thermostatic Controls - 81,000 BTU
SKU#: 236T
1/6
Free Freight?
Quick Ship
$8,580.00
Calculate
Product Protection
Starting at
Lang Manufacturing 236T Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 56000 - 104000 |
| BTU | 81,000 BTU |
| Installation Type | Countertop |
| Series | LG Series |
| Power Type | Natural or Propane Gas |
| Construction | Stainless Steel |
| Cooking Surface Material | Stainless Steel |
| With Griddle | Yes |
| Brand | Lang Manufacturing |
| Certifications | 5-15P |
| Number of Burners | 3 |
| Control Type | Thermostatic |
| Heat | Gas |
| Usage | Standard Duty |
| Voltage | 120 Volts |
| Width (in) | 36 |
| Height (in) | 16.4 |
| Depth (in) | 30.4 |
| Weight | 420.00 |
Additional Information on Lang Manufacturing 236T
middleby-financial-flyer.pdf
buying-guide.pdf
installation-operation.pdf
warranty-sheet.pdf
lang-manufacturing-236t.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Lang Manufacturing 236T Certifications
5-15P
Two-pole with ground pin plug
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
Lang Manufacturing 236T Description
LG Series Commercial Griddle, countertop, gas, 36"W x 23"D cooking surface, 1" thick steel griddle plate, 200° - 450° F embedded electric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4" adjustable stainless steel legs, 81,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL, NSF
LG Series Commercial Countertop Griddle, gas, 36" W x 23" D cooking surface, 1" thick steel griddle plate, 200° - 450° F embedded electric snap-action thermostats with pilot safety, welded steel frame with stainless steel exterior, 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 8 qt. stainless steel grease drawer, 4"stainless steel legs with 1-5/8" adjustment, 81,000 BTU, 120V/60/1-ph, NEMA 5-15P, UL EPH, cULus (more commercial grills, commercial restaurant ranges, and cooking equipment available)
Standard Features:
Standard Features:
- 27,000 BTU per 12" section of griddle
- Both types of thermostat allow independent control of each 12" (305 mm) section of griddle
- Standard electronic snap-action thermostats for precise control between 200°F (93°C) and 450°F (232°C)
- 5.5" (140 mm) rear and side splash guard and a 3.5" (89 mm) by one 1" (25 mm) grease trough for easy cleanup
- 1" (25 mm) thick griddle surface with internal sensors 3/16" (5 mm) from the surface for instant response and fast recovery.
- Optional solid state controls with surface control to +/-4°F (+/-2.2°C) of set point and operate between 175°F (79°C) and 450°F (232°C)
Options & Accessories
- Chrome griddle plate
- Steel stand with legs or casters
- Clamshell hood - up to one per 12" (305mm) of griddle surface
- Custom grooved plate, 12" or 24" (305 or 610 mm) from either side
