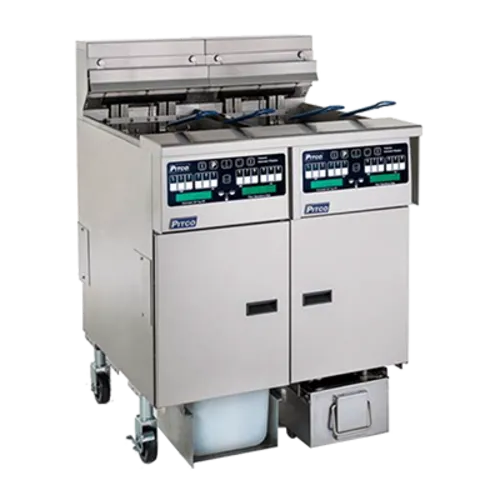

Pitco SELV14T-C/FD Solstice Reduced Oil Volume Fryer
Calculate
Pitco SELV14T-C/FD Specifications
| Number of Fry Pots | 2 |
|---|---|
| Brand | Pitco Frialator |
| Certifications | CE |
| Capacity | 30 Lb |
| Heat | Electric |
| Voltage | 208 Volts |
| Wattage | 17.0 Kilowatts |
| Width (in) | 15.63 |
| Height (in) | 45.75 |
| Depth (in) | 34.38 |
Additional Information on Pitco SELV14T-C/FD
pitco-frialator-selv14t-c-fd.specsheet.pdf
middleby-financial-flyer.pdf
installation-operation.pdf
pitco-selv14t-c-fd.specsheet.pdf
warranty-sheet.pdf
brochure.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Pitco SELV14T-C/FD Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Pitco SELV14T-C/FD Description
If you’re looking for a size-efficient Floor Model Electric Fryer that has twin fry tanks the Frialator SELV14T-C/FD Solstice Reduced Oil Volume Fryer is an easy pick. Each fry tank offers 6.8” x 14.8” of cooking area and is made from stainless steel with an extra smooth peened finish. Each fry tank holds 15 lbs of oil
12 different menu items can be easily cooked in this fryer with a simple to use interface. The programmable Intellifry 12 computer makes consistent frying as easy as pushing a button. For more automation, this fryer has an automatic basket lift option that will remove food from the fryer on time every time. The kitchen staff is kept safe by a high-temperature safety switch which will turn off automatically if the temperature rises above a safe limit.
To extend the amount of time oil can be used, this fryer comes with the Solstice Filter system. This filtration system is located under the unit in a stainless steel drawer. To make moving the drawer easy, it comes with wheels at the rear. A 4.5 GPM filter pump makes sure the two-step filtration process is fast. This makes oil filtration more usable in busy kitchens without suffering much downtime. The filter used by this system is a large 10” x 20-½” filter envelope.
Oil lost from absorption into food is easily replaced with a simple push of a button. A 35 lb Jug in Box holds extra oil for topping off eliminating the need for heavy oil jugs to be lugged through a busy kitchen.
The front, sides, tank, and door are made from durable stainless steel that is easy to clean and maintain. Frying oil is efficiently heated by the immersion-type heating elements that feature a high-temperature alloy sheath and contactors that are free from mercury. This fryer uses 17 kW/hr of power and can be ordered in several different voltage configurations to fit the needs of your kitchen.
Standard Features:
- Intellifry Computer, 12 products.
- Mercury-free heating contractors.
- Tank - Stainless Steel Construction.
- Cabinet - stainless steel front, door, & sides.
- 9” (22.9 cm) adjustable legs for leveling fryer.
- 1-1/4” (3.2cm) full port drain valve for fast draining.
- Easy lift out immersion elements for easy clean up.
- Push button frypot oil replenishment system. 35 Lb JIB holder1 and low JIB indicator.
- Cooks like a 50 lb fryer with just 30 lbs of oil. Uses standard baskets. Provides full 4” cook depth.
- FILTER SOON production monitor, tracks cooking activity per frypot, and indicates when filtration is needed.
- 4.5 gpm (17.0 LPM) filter pump.
- Filter pan lid is self-storing and out of the way.
- Filtered oil return fitting assists cleaning frypot bottom.
- Filter pan is stainless steel. Rear wheels ease handling.
- Large, 10.0” x 20.5” filter envelope for fast filtering all day.
- Simple two step filtration process makes filtering easy and fast. Under 5 minutes in most circumstances.
- Extra large 3” (7.6 cm) drain lines with unique curved design drain spout virtually eliminates splashing. Spout swivels for ease of oil disposal.
- 1- Fryer crumb scoop
- 1- Filter shovel scoop
- 1- Drain clean out rod
- 1- Fryer cleaning brush
- X- twin size fry baskets (2 / frypot)
- 1- 10.0” x 20.5” Filter media starter pack
- X -Removable basket hangers (1 / frypot)
- Tank covers
- Automatic frypot oil level control system
- Computer controlled auto filtration system
- Work shelves, Consult factory for availability
- Assorted basket configurations, consult factory
- Automatic Basket Lifts, P6072145 Baskets Only
- BNB Dump Station, see BNB spec sheet for details
- 9” (22.8 cm) adjustable casters ease moving equipment for cleaning
- 6’ (183 cm) NEMA 15-60P cordset (14 KW and 17KW 208V &240V 3 phase only). 1 per fryer.
- Filter System Options: Paperless filter, Frypot flush hose and Waste Oil Management hook up.
- (Requires 2 or more Commercial Deep Fryers in a system for internal JIB storage. Assumes: Oil to be filtered is >180°F, that the filter media is not excessively covered with sediment, and is changed at recommended intervals.)
Pitco reduced oil volume/high output frying systems are designed and engineered for operators who need to reduce operating costs and maintain high production. Operators benefit immediately with a 40% reduction in oil on the first fill up, and at every oil change after that. Time between oil changes is significantly extended due to the low initial fill volume. As with all “low oil” fryers, oil filtration occasionally during operation is a key to maximizing oil life to the greatest degree possible. The FILTER SOON feature is production based and takes the guesswork out of when to filter, and it is easy to customize to your menu. Proven PITCO Solstice filter system is fast and simple to use. Whenever business levels permit, filtering and reheating can be accomplished in under 5 minutes*. A fast and easy push button frypot top off feature reduces the need for staff to carry heavy jugs through the kitchen. The top off feature integrates a typical 35 lb. oil JIB (Jug In Box) as an on board fresh oil supply1. A “jug low” warning indicator, and easy JIB changes are user friendly features. Add auto filtration option for additional operational benefits.
