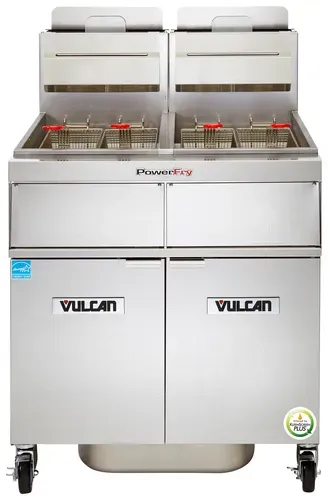

Vulcan 2TR65AF PowerFry3™ (2) 65-70 lb. Fryers Gas Floor Fryer with Solid State Controls and KleenScreen PLUS® Filtration System, 120 Volts - 160,000 BTU
Energy Star ?Chat Now
Calculate
Vulcan 2TR65AF Specifications
| Filtration System | KleenScreen PLUS® Filtration System |
|---|---|
| Series | PowerFry3™ |
| Control Type | Solid State |
| Cabinet | Stainless Steel |
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Fry Pot | Stainless Steel |
| Made in | USA |
| Battery | 2 |
| Certifications | NSF |
| Basket | Twin |
| Basket Lifts | No |
| BTU | 160,000 BTU |
| Exterior Finish | Stainless Steel Front & Sides |
| Controls | Solid State |
| Capacity | (2) 65-70 lb. Fryers |
| Voltage | 120 Volts |
| Width (in) | 42 |
| Height (in) | 47.25 |
| Depth (in) | 30.13 |
| Weight | 696.00 |
Additional Information on Vulcan 2TR65AF
parts-catalog.pdf
installation-operation.pdf
service-manual.pdf
sell-sheet.pdf
parts-list.pdf
owner-s-manual.pdf
vulcan-2tr65af.specsheet.pdf
brochure.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 2TR65AF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 2TR65AF Description
The 2TR65AF PowerFry3™ Fryer from Vulcan is a dual fryer system with 65-70 lb capacity Commercial Deep Fryers designed to keep up with a commercial kitchen’s demands while saving operators on operational costs with an energy-efficient gas-fired system and a filtration system. These deep fryers are ENERGYSTAR® qualified and some of the most energy-efficient models you can find on the market. The variety of Floor Model Gas Fryers offered by Vulcan are designed from the ground up to provide operators with a wide range of options to best fit their needs.
At the heart of this fryer is the ThreePass™ heat transfer system which looks like the exhaust header on a high-performance car. The bends on the gas tube provide more surface area for heat transfer without needing to burn additional gas in the process. The groundbreaking design of the heat transfer system yields this fryer with 72% thermal efficiency and 60% cooking efficiency. To maintain the oil temperature at idle this fryer only uses 40,000 BTU/hr and to extend the life of oil the SoftStart™ ignition system lowers the burn rate to 5,083 BTU/hr to gradually apply heat.
To easily set the frying temperature, this fryer has a simple solid state analog knob behind the door with a range from 200° to 390°F. This fryer features users selectable fat melt modes and electronic ignition.
The stainless steel mesh KleenScreen PLUS® filtration system in this fryer system is housed inside an 18 gauge stainless steel filter vessel. For additional filtration efficiency optional KleenScreen PLUS® envelopes are available to filter out particles down to .5 microns. Filtration is done as quickly as possible with a ⅓ HP motor that circulates oil at a rate of 8 GPM.
The cabinet and fry tank are made from stainless steel for durability while making it easy to clean. The 6” casters included with this fryer make it easy to move around for maintenance and cleaning. The casters are also adjustable to make sure the fryer is always level. A tank brush, twin fry baskets with plastic coated handles, and a clean-out rod are also included.
To power this fryer it needs 80,000 BTU/hr of gas input and a 120v NEMA 5-15P cord and plug are included.
Standard Features:
- Hi-limit shut-off.
- 80,000 BTU/hr. input.
- Stainless steel cabinet.
- Electronic matchless ignition.
- Tank brush and clean-out rod.
- 1 1⁄4" port ball type drain valve.
- One year limited parts and labor warranty.
- Set of four 6" adjustable (2 locking) casters.
- Twin fry baskets with plastic coated handles.
- Maintains idle temperature setting with only 5,049 BTU/hr. to save energy.
- Stainless steel fry tank, 65 - 70 lb. capacity. Includes 10 year limited tank warranty.
- Energy saving SoftStart™ ignition system extends oil life while requiring lower BTU’s.
- Energy Efficient ThreePass™ heat transfer system yielding 60.0% cooking efficiency and 72% Thermal Efficiency. ENERGY STAR® qualified.
- FRYMATE-VX15 add-on frymate.
- 3⁄4" Flexible gas hose with quick disconnect.
- Set of twin baskets - 9 1⁄4"w x 13 1⁄4"d x 6"h.
- 10" high stainless steel removable splash guard.
- Single large basket - 18 3⁄4"w x 13 1⁄4"d x 5 1⁄2"h.
- Stainless steel tank cover - doubles as a work surface top.
- Connecting Kit(s) - Connects two fryers together (brackets, grease strip and hardware included).
- Second year extended limited parts and labor warranty
65 - 70 lbs. capacity free standing gas fryer, Vulcan-Hart Model No. (1TR65A) (1TR65D) (1TR65C). 80,000 BTU/hr. input. Stainless steel cabinet. Set of four 6" adjustable casters (2 locking). Stainless steel fry tank with ThreePass™ heat transfer system. Energy Star® qualified. SoftStart™ ignition system using 40,000 BTU/hr. to extend oil life during start up. Idle rate of 5,049 BTU/hr. to maintain cooking temperature. 1 1⁄4" port ball type drain valve. Twin fry baskets with plastic coated handles. Solid state analog knob control, digital, or programmable computer control systems all standard with electronic matchless ignition. Tank brush and clean-out rod included. CSA design certified. NSF listed.
