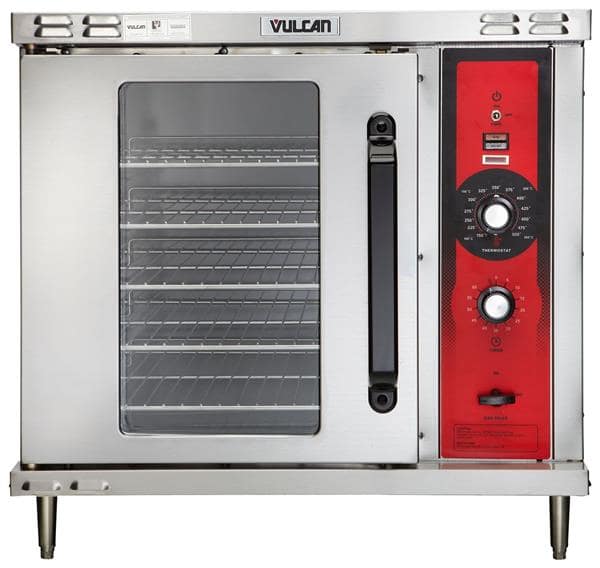

Vulcan GCO2D Single Deck Gas Convection Oven with Touchscreen Contols, 120 Volts
SKU#: GCO2D
1/3
Calculate
- Please see specification sheet for installation clearance requirements
Vulcan GCO2D Specifications
| Total BTU | 25000 - 53000 |
|---|---|
| Installation Type | Freestanding |
| Deck | Single |
| Oven Interior Style | Standard Depth |
| Control Type | Touchscreen |
| Brand | Vulcan |
| Made in | USA |
| Power Type | Gas |
| Size | Half |
| Interior Finish | Porcelain |
| BTU | 25,000 BTU |
| Controls | Solid State |
| Door Construction | Solid/Glass |
| Timer | 60 Minute |
| Door Type | Independent |
| Material | Stainless Steel |
| Voltage | 120 Volts |
| Width (in) | 30 |
| Height (in) | 30.63 |
| Depth (in) | 28.25 |
| Weight | 266.00 |
Additional Information on Vulcan GCO2D
parts-catalog.pdf
parts-list.pdf
owner-s-manual.pdf
warranty-sheet.pdf
vulcan-gco2d.specsheet.pdf
service-manual.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan GCO2D Description
Commercial Oven, Convection, gas, single-deck, half-size, solid state controls, electronic spark ignition, 60 minute timer, 150° to 500°F temperature range, single speed fan, (5) oven racks, door with window, porcelain interior, stainless steel door, sides, top & back enclosure panel, 1/2 HP, 25,000 BTU+
Oven, Convection, gas, single-deck, half-size, solid state controls, electronic spark ignition, 60 minute timer, 150° to 500°F temperature range, single speed fan, (5) oven racks, door with window, porcelain interior, stainless steel door, sides, top & back enclosure panel, 1/2 HP, 25,000 BTU, Commercial Convection Ovens
Standard Features:
- 25,000 BTU/hr. input.
- 1⁄2 H.P. single speed fan motor.
- Electronic spark ignition system.
- 4" adjustable chrome plated legs.
- Stainless steel oven door gaskets.
- Cool to the touch oven door handle.
- Oven interior liners are porcelain on steel.
- One year limited parts and labor warranty.
- Stainless steel door with double pane window.
- 60 minute electric timer with time expired buzzer.
- Nine position rack guide with five nickel plated racks.
- Oven cool switch for rapid cool down when door is open.
- Stainless steel front, sides, top and rear enclosure panel.
- Solid state temperature control adjusts from 200° to 500°F.
- Manual shut-off valve and gas pressure regulator. 3⁄4" gas connection required.
- Requires 120/60/1 power supply. 8 amps total draw. Furnished with cord and plug.
Options
- Rack hanger.
- Additional oven racks.
- Second year extended limited parts and labor warranty
- Set of four 13 1⁄2" stainless steel legs with casters and stack set.
- Set of four 13 1⁄2" stainless steel legs with adjustable feet and stack set.
- Stainless steel stand with adjustable stainless steel legs with feet and nine position rack storage. Legs are adjustable from 23 3⁄4" to 24 3⁄4".
- Stainless steel stand with adjustable stainless steel legs with casters and nine position rack storage. Legs are adjustable from 28" to 29 1⁄8".
Specifications
Half size gas convection oven, Model No. GCO2D, manufactured by Vulcan-Hart. Porcelain enamel on steel oven interior measures 15 1⁄4"w x 21"d x 20"h. Furnished with nine position nickel plated rack guides and five nickel plated racks measuring 143⁄8" x 207⁄8". Heated by 25,000 BTU/hr. gas burner. Electronic spark ignition system. Stainless steel front, sides, top and rear enclosure panel. Insulation applied to the top, rear, both sides, bottom and door. Stainless steel door with double pane window. Solid state temperature controls adjustable from 200° to 500°F. 60 minute electrical timer with continuous sounding buzzer. Single speed 1⁄2 H.P. permanently lubricated oven blower-motor. Requires 120/60/1 power supply. 8 amps total draw. Furnished with cord and plug. CSA design certified for use in the U.S. and Canada. NSF listed.
