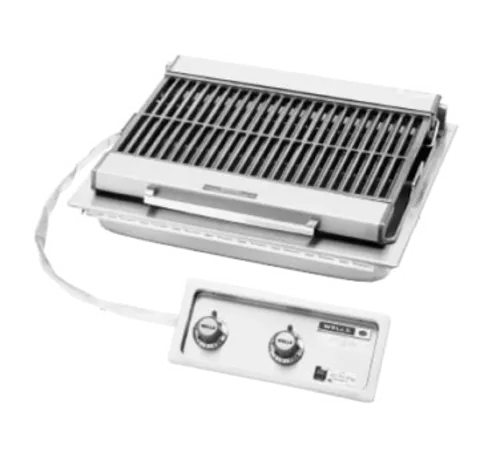

Wells B-406 Charbroiler
MPN#: B-406
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Free Freight?
Quick Ship
$5,751.00
Product Protection
Starting at
Wells B-406 Accessories
Wells 21707 Broiler Grate
$399.00
Wells 20202 Grease Pan
$399.00
Description
Wells B-406 Description
Charbroiler, built-in, electric, cast iron grate, 25" wide, stainless steel construction, with grease pan and scraper/brush, RU, NSF-4
Commercial Charbroiler, built-in, electric, cast iron grate, 25" wide, stainless steel construction, with grease pan and scraper/brush, RU, NSF-4
Standard Features:
- Each unit is provided with a grate scraper/brush.
- A one-year warranty against defects covers parts and labor.
- A terminal block is provided for field connection to the main power supply.
- Wellslok allows for quick and easy installation in stainless steel countertops.
- Each individual control regulates one half of the grid surface for cooking versatility.
- Lift-out, drawn drip pan with handles and removable cast iron grate allow fast and easy cleaning.
- Element frame assembly has a spring-loaded support rod to secure elements when in a raised position.
- The B-406 Broiler is Underwriters Laboratories, Inc. Recognized and meets NSF International standards.
- Controls are recessed in a one-piece, drawn, stainless steel panel to help prevent accidental temperature changes.
- Temperature is regulated by two infinite controls with a positive-off position and signal lights to indicate a power-on condition
- Each self-cleaning element is positioned between the broiler grate ribs to protect against direct food contact and spatula abrasion. The elements also provide dual heating action (conductive and radiant).
- Broiler Grate
- Wire Broiler Brush
- Grease Pan, replacement
Options
Q & A
Wells B-406 Specifications
| Installation Type | Drop In |
|---|---|
| Heating Source | Radiant |
| Brand | Wells |
| Made in | USA |
| Number of Burners | 2 |
| Certifications | NSF |
| Power Type | Electric |
| Control Type | Infinite |
| Heat | Electric |
| Usage | Heavy Duty |
| Voltage | 208 Volts |
| Width (in) | 24.75 |
| Depth (in) | 23.5 |
| Weight | 68 |
Additional Information on Wells B-406
Wells B-406 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
