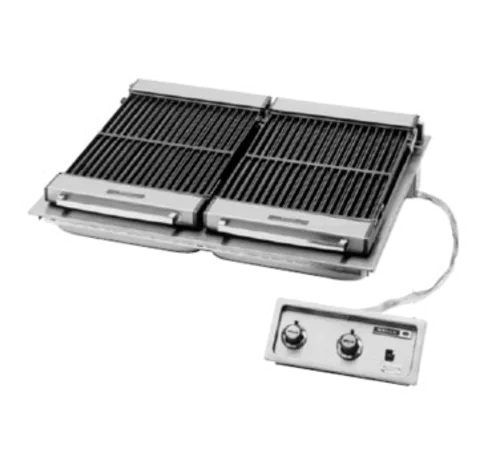

Wells B-506 Charbroiler

Wells B-506 Charbroiler

B-506
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$9,155.00
$7,543.59

You will earn 9155 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$162.11
* The above amount may vary depending on the applicant's credit history.

Wells B-506 Specifications

Installation TypeDrop In
Heating SourceRadiant
BrandWells
Made inUSA
Number of Burners2
CertificationsNSF
Power TypeElectric
Control TypeInfinite
HeatElectric
UsageHeavy Duty
Voltage208 Volts
Width (in)36.5
Depth (in)29.5
Weight142

Wells B-506 Certifications

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Wells B-506 Description

Charbroiler, built-in, electric, cast iron grate, 36" wide, stainless steel construction, with grease pan and scraper/brush, RU, NSF-4

Commercial Charbroiler, built-in, electric, cast iron grate, 36" wide, stainless steel construction, with grease pan and scraper/brush, RU, NSF-4

Standard Features:
  • Each unit is provided with a grate scraper/brush.
  • A one-year warranty against defects covers parts and labor.
  • A terminal block is provided for field connection to the main power supply.
  • Each individual control regulates one half of the grid surface area for cooking versatility.
  • Lift-out, drawn drip pans with handles and removable cast iron grates allow fast and easy cleaning.
  • The B-506 Broiler is Underwriters Laboratories, Inc. Recognized and meets NSF International standards.
  • Each element frame assembly has a spring-loaded support rod to secure element when in a raised position.
  • Controls are recessed in a one-piece, drawn, stainless steel panel to help prevent accidental temperature changes.
  • Temperature is regulated by two infinite controls with a positive-off position and signal lights to indicate a power-on condition.
  • Self-cleaning elements are positioned between the broiler grate ribs to guard against direct food contact and spatula abrasion. The elements also provide dual heating action (conductive and radiant).

Options for Wells B-506

What is included
  • Voltage/Phase Note: Note: Must specify voltage and phase
  • Warranty: One year warranty on cast iron grates, burners & burner shields, standard
  • Voltages: 208v/60/1-ph or 3-ph, 10.8kW, field wired (field convertible)

Wells B-506 Accessories

Wells 21708 Wire Broiler Brush 21708
$29.00
Wells 21706 Broiler Grate 21706
$425.00

Wells B-506 Parts

All Wells B-506 Parts
