The Ultimate Garland Range Buying Guide

In140 years of service, Garland has shaped commercial cooking performance with powerful commercial ranges designed with various top and base configurations to keep up with every demand. If you are looking for your next Garland range, find the perfect one with this guide.

1 - Select Gas (Natural Gas or LP) or Electric.

2 - Determine whether you need Restaurant or Heavy-Duty. U Series, GF Series, and X Series models are suited for medium-duty needs. Cuisine and Master units are made for heavy-duty operations.

3 - Decide on the amount of space you can dedicate. Note that your hood should overlap the two sides of your cooking battery by at least 6”. Island hoods require 12” all around. There are also distance requirements between some equipment and combustibles.


Gas Restaurant Ranges
(up to 33,000 BTUH per burner)

Go to size (inches):
24 | 36 | 48 | 60

Go to size (inches):
36 | 60


Heavy-Duty Gas Ranges
(up to 35,000 BTUH per burner)

Go to size (inches):
12 | 17 | 18 | 34 | 36 | 48

Go to size (inches):
18 | 36


GAS RESTAURANT RANGES

24" WIDE RESTAURANT GAS RANGES

X Series 24" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

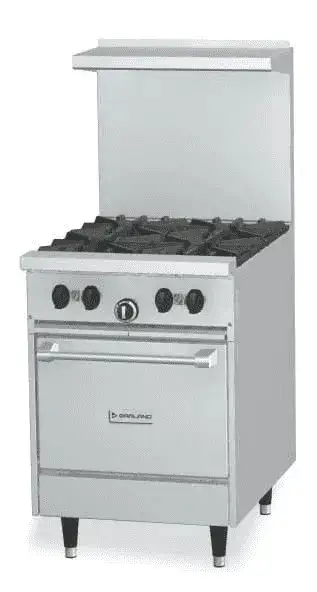

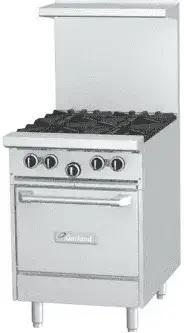

(Image shows X24-4L)

Range Size: 23.63"W x 33.5"D x 57"H

Burner Rating: 30,000 BTUH

Model

Base

Top

X24-4L

145,000 BTU

Space Saver Oven

4 Open Burners

X24-4S

120,000 BTU

Storage Base

4 Open Burners

U Series 24" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U24-4L)

Range Size: 24"W x 57"H x 34.5"D

Burner Rating: 32,000 BTUH

Model

Base

Top

U24-4L

160,000 BTU

Space Saver Oven

4 Open Burners

U24-4S

128,000 BTU

Storage Base

4 Open Burners

U24-2G12L

114,000 BTU

Space Saver Oven

4 Open Burners

U Series 24" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U24-4L)

Range Size: 24"W x 57"H x 34.5"D

Burner Rating: 32,000 BTUH

Model

Base

Top

U24-2G12S

Storage Base

12" Griddle

2 Open Burners

U24-G24L

Space Saver Oven

12" Griddle

2 Open Burners

U24-G24S

Storage Base

12" Griddle

2 Open Burners

G Series 24" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G24-4L)

Range Size: 24"W x 57"H x 34.5"D

Modular Size: 24"W x 25"H x 34.5"D

Burner Rating: 33,000 BTUH

Model

Base

Top

G24-4L

164,000 BTUH

Space Saver Oven

4 Starfire-Pro Open Burners

G24-4S

132,000 BTUH

Storage Base

4 Starfire-Pro Open Burners

G24-4T

132,000 BTUH

Modular

4 Starfire-Pro Open Burners

G Series 24" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G24-2G12L)

Range Size: 24"W x 57"H x 34.5"D

Modular Size: 24"W x 25"H x 34.5"D

Burner Rating: 33,000 BTUH

Model

Base

Top

G24-2G12L

116,000 BTUH

Space Saver Oven

12" Griddle

2 Starfire-Pro Open Burners

G24-2G12S

84,000 BTUH

Storage Base

12" Griddle

2 Starfire-Pro Open Burners

G24-2G12T

84,000 BTUH

Modular

12" Griddle

2 Starfire-Pro Open Burners

G Series 24" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G24-G24L)

Range Size: 24"W x 57"H x 34.5"D

Modular Size: 24"W x 25"H x 34.5"D

Model

Base

Top

G24-G24L

68,000 BTUH

Space Saver Oven

24" Griddle

G24-G24S

36,000 BTUH

Storage Base

24" Griddle

G24-G24T

36,000 BTUH

Modular

24" Griddle

36" WIDE RESTAURANT GAS RANGES

X Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

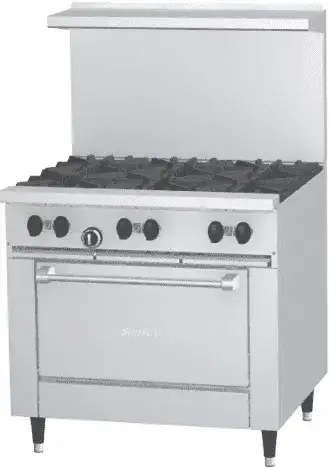

(Image shows X36-6R)

Range Size: 35.44"W x 57"H x 33.5"D

Burner Rating: 26,000-30,000 BTUH

Model

Base

Top

X36-6R

230,000 BTUH

Standard Oven

6 Open Burners

X36-6S

180,000 BTUH

Storage Base

6 Open Burners

X Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

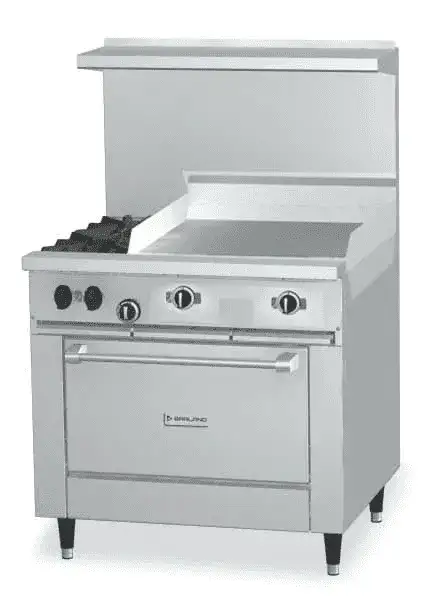

(Image shows X36-2G24R)

Range Size: 35.44"W x 57"H x 33.5"D

Burner Rating: 26,000-30,000 BTUH

Model

Base

Top

X36-2G24R

129,000 BTUH

Standard Oven

24" Griddle

2 Open Burners

X36-2G24S

96,000 BTUH

Storage Base

24" Griddle

2 Open Burners

U Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

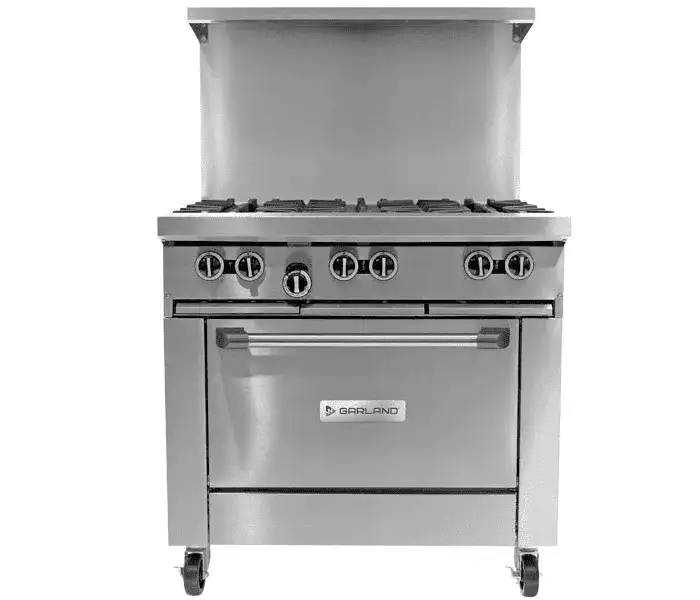

(Image shows U36-6R)

Range Size: 36"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U36-6R

230,000 BTUH

Standard Oven

6 Open Burners

U36-6S

192,000 BTUH

Storage Base

6 Open Burners

U Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U36-6R)

Range Size: 36"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U36-4G12R

184,000 BTUH

Standard Oven

12" Griddle

4 Open Burners

U36-4G12S

146,000 BTUH

Storage Base

12" Griddle

4 Open Burners

U Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U36-6R)

Range Size: 36"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U36-2G24R

138,000 BTUH

Standard Oven

24" Griddle

2 Open Burners

U36-2G24S

100,000 BTUH

Storage Base

24" Griddle

2 Open Burners

U Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U36-6R)

Range Size: 36"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U36-G36R

92,000 BTUH

26" Standard Oven

36" Griddle

U36-G36S

54,000 BTUH

Storage Base

36" Griddle

G Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G36-6R)

Range Size: 36"W x 57"H x 34.5"D

Modular Size: 36"W x 25"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G36-6R

236,000 BTUH

Standard Oven

6 Open Burners

G36-6S

198,000 BTUH

Storage Base

6 Open Burners

G36-6T

198,000 BTUH

Modular

6 Open Burners

G Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G36-6R)

Range Size: 36"W x 57"H x 34.5"D

Modular Size: 36"W x 25"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G36-4G12R

188,000 BTUH

Standard Oven

12" Griddle

4 Open Burners

G36-4G12S

150,000 BTUH

Storage Base

12" Griddle

4 Open Burners

G36-4G12T

150,000 BTUH

Modular

12" Griddle

4 Open Burners

G Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G36-6R)

Range Size: 36"W x 57"H x 34.5"D

Modular Size: 36"W x 25"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G36-2G24R

140,000 BTUH

Standard Oven

24" Griddle

2 Open Burners

G36-2G24S

102,000 BTUH

Storage Base

24" Griddle

2 Open Burners

G36-2G24T

102,000 BTUH

Modular

24" Griddle

2 Open Burners

G Series 36" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G36-6R)

Range Size: 36"W x 57"H x 34.5"D

Modular Size: 36"W x 25"H x 34.5"D

Model

Base

Top

G36-G36R

92,000 BTUH

Standard Oven

36" Griddle

G36-G36S

54,000 BTUH

Storage Base

36" Griddle

G36-G36T

54,000 BTUH

Modular

36" Griddle

48" WIDE RESTAURANT GAS RANGES

GF Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows GF48-8LL)

Range Size: 48"W x 57"H x 45.38"D

Burner Rating: 26,000 BTUH

Model

Base

Top

GF48-8LL

272,000 BTUH

2 Space Saver Ovens

8 Open Burners

GF48-6G12LL

238,000 BTUH

1 Standard Oven

Storage Base

12" Griddle

6 Open Burners

GF48-4G24LL

204,000 BTUH

2 Storage Bases

24" Griddle

4 Open Burners

GF48-2G36LL

170,000 BTUH

2 Space Saver Ovens

36" Griddle

2 Open Burners

U Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U48-8LL

320,000 BTUH

2 Space Saver Ovens

8 Open Burners

U48-8RS

294,000 BTUH

1 Standard Oven

Storage Base

8 Open Burners

U48-8SS

256,000 BTUH

2 Storage Bases

8 Open Burners

U Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U48-6G12LL

274,000

2 Space Saver Ovens

12" Griddle

6 Open Burners

U48-6G12RS

280,000 BTUH

1 Standard Oven

Storage Base

12" Griddle

6 Open Burners

U48-6G12SS

138,000 BTUH

2 Storage Bases

12" Griddle

6 Open Burners

U Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U48-4G24LL

100,000 BTUH

2 Space Saver Ovens

24" Griddle

4 Open Burners

U48-4G24RS

92,000 BTUH

1 Standard Oven

Storage Base

24" Griddle

4 Open Burners

U48-4G24SS

2 Storage Bases

24" Griddle

4 Open Burners

U Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U48-2G36LL

54,000 BTUH

2 Space Saver Ovens

36" Griddle

2 Open Burners

U48-2G36RS

120,000 BTUH

1 Standard Oven

Storage Base

36" Griddle

2 Open Burners

U48-2G36SS

136,000 BTUH

2 Storage Bases

36" Griddle

2 Open Burners

U Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-32,000 BTUH

Model

Base

Top

U48-G48LL

110,000 BTUH

2 Space Saver Ovens

48" Griddle

U48-G48RS

72,000 BTUH

1 Standard Oven

Storage Base

48" Griddle

U48-G48SS

72,000 BTUH

2 Storage Bases

48" Griddle

G Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

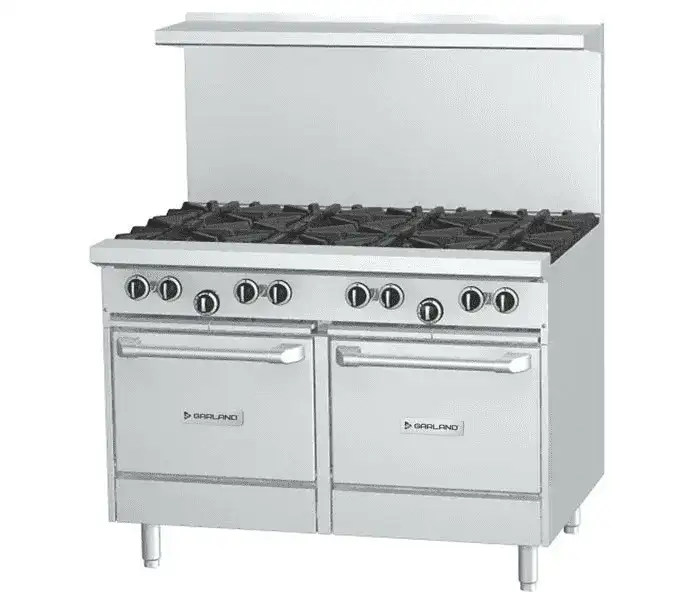

(Image shows G48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G48-8LL

328,000 BTUH

2 Space Saver Ovens

8 Open Burners

G48-8RS

302,000 BTUH

1 Standard Oven

Storage Base

8 Open Burners

G48-8SS

264,000 BTUH

2 Standard Ovens

8 Open Burners

G Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G48-6G12LL

280,000 BTUH

2 Space Saver Ovens

12" Griddle

8 Open Burners

G48-6G12RS

138,000 BTUH

1 Standard Oven

Storage Base

12" Griddle

8 Open Burners

G48-6G12SS

100,000 BTUH

2 Standard Ovens

12" Griddle

8 Open Burners

G Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G48-4G24LL

92,000 BTUH

2 Space Saver Ovens

24" Griddle

4 Open Burners

G48-4G24RS

54,000 BTUH

1 Standard Oven

Storage Base

24" Griddle

4 Open Burners

G48-4G24SS

120,000 BTUH

2 Standard Ovens

24" Griddle

4 Open Burners

G Series 48" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G48-8LL)

Range Size: 48"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G48-2G36LL

136,000 BTUH

2 Space Saver Ovens

36" Griddle

2 Open Burners

G48-G48RS

110,000 BTUH

1 Standard Oven

Storage Base

36" Griddle

2 Open Burners

G48-48SS

72,000 BTUH

2 Standard Ovens

36" Griddle

2 Open Burners

60" WIDE RESTAURANT GAS RANGES

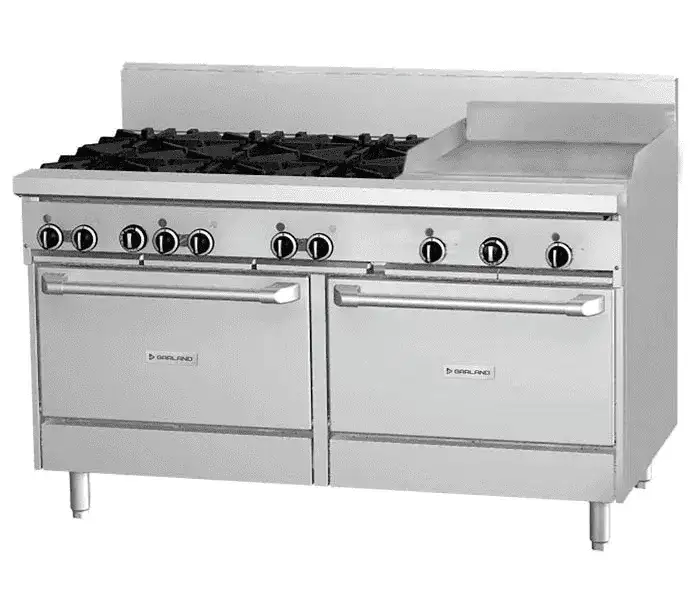

GF Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows GF60-6G24RR)

Range Size: 60"W x 45.38"H x 34.5"D

Burner Rating: 26,000 BTUH

Model

Base

Top

GF60-10RR

336,000 BTUH

2 Standard Ovens

10 Open Burners

GF60-8G12RR

302,000 BTUH

2 Standard Ovens

8 Open Burners

12" Griddle

GF60-6G24RR

268,000 BTUH

2 Standard Ovens

6 Open Burners

24" Griddle

GF60-4G36RR

234,000 BTUH

2 Standard Ovens

4 Open Burners

36" Griddle

GF Series 60" Raised Griddle/Broiler Gas Range

  • Natural Gas and Liquid Propane Available

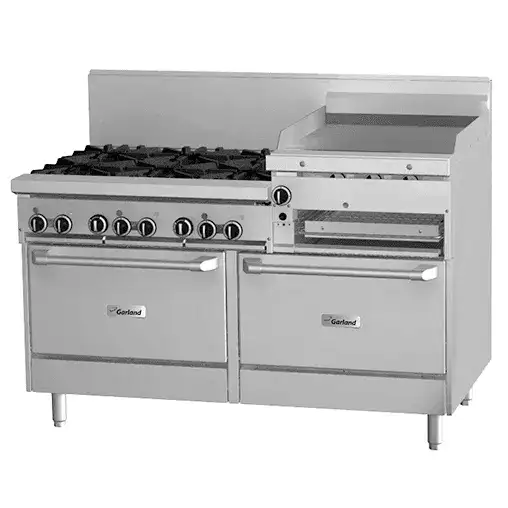

(Image shows GF60-6R24RR)

Range Size: 60"W x 47"H x 34.5"D

Burner Rating: 26,000 BTUH

Model

Base

Top

GF60-6R24RS

227,000 BTUH

1 Standard Oven

1 Storage Base

6 Open Burners

24" Raised Griddle/Broiler

GF60-6R24RR

265,000 BTU

2 Standard Ovens

6 Open Burners

24" Raised Griddle/Broiler

W/ ELECTRIC SPARK IGNITION

GFE60-6R24RR

265,000 BTUH

2 Standard Ovens

6 Open Burners

24" Raised Griddle/Broiler

GFE60-6R24RS

227,000 BTUH

1 Standard Oven

1 Storage Base

6 Open Burners

24" Raised Griddle/Broiler

X Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows X60-10RR)

Range Size: 59.06"W x 57"H x 34.5"D

Burner Rating: 26,000-30,000 BTUH

Model

Base

Top

X60-10RR

366,000 BTUH

2 Standard Ovens

10 Open Burners

X60-10RS

333,000 BTUH

1 Standard Oven

1 Storage Base

10 Open Burners

X60-6G24RR

282,000 BTUH

2 Storage Bases


6 Open Burners

24" Griddle

X60-6G24RS

249,000 BTUH

1 Standard Oven

1 Storage Base

6 Open Burners

24" Griddle

X Series 60" Raised Griddle/Broiler Gas Range

  • Natural Gas and Liquid Propane Available

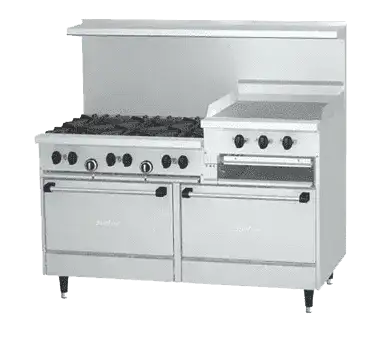

(Image shows X60-6R24RR)

Range Size: 59.06"W x 57"H x 33.5"D

Burner Rating: 26,000-30,000 BTUH

Model

Base

Top

X60-6R24RR

279,000 BTUH

2 Standard Ovens

6 Open Burners

24" Raised Griddle/Broiler

X60-6R24RS

246,000 BTUH

1 Standard Ovens

1 Storage Base

6 Open Burners

24" Raised Griddle/Broiler

G Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

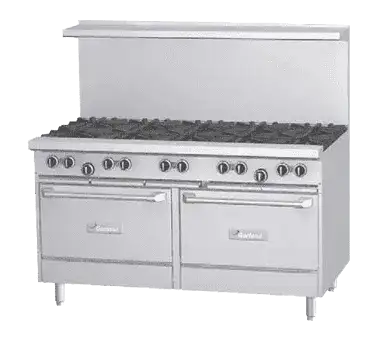

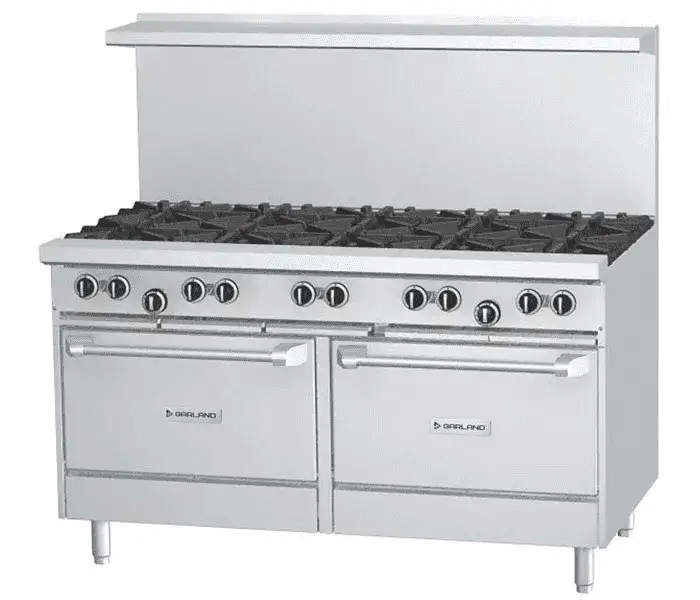

(Image shows G60-10RR)

Range Size: 60"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G60-10RR

406,000 BTUH

2 Standard Ovens

10 Open Burners

G60-10RS

368,000 BTUH

1 Standard Oven

1 Storage Base

10 Open Burners

G60-10SS

330,000 BTUH

2 Storage Bases

10 Open Burners

G Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G60-10RR)

Range Size: 60"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G60-8G12RR

358,000 BTUH

2 Standard Oven

8 Open Burners

12" Griddle

G60-8G12RS

320,000 BTUH

1 Standard Oven

1 Storage Base

12" Griddle

8 Open Burners

G60-8G12SS

282,000 BTUH

2 Storage Bases

12" Griddle

8 Open Burners

G Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G60-10RR)

Range Size: 60"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G60-6G24RR

310,000 BTUH

2 Standard Oven

24" Griddle

6 Open Burners

G60-6G24RS

272,000 BTUH

1 Standard Oven

1 Storage Base

24" Griddle

6 Open Burners

G60-6G24SS

234,000 BTUH

2 Storage Bases

24" Griddle

6 Open Burners

G Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G60-10RR)

Range Size: 60"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G60-4G36RR

262,000 BTUH

2 Standard Ovens

36" Griddle

4 Open Burners

G60-4G36RS

224,000 BTUH

1 Standard Ovens

36" Griddle

4 Open Burners

G60-4G36SS

186,000 BTUH

2 Storage Bases

4 Open Burners

36" Griddle

G Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G60-10RR)

Range Size: 60"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G60-2G48RR

214,000 BTUH

2 Standard Ovens

2 Open Burners

48" Griddle

G60-2G48RS

176,000 BTUH

1 Standard Oven

1 Storage Base

2 Open Burners

48" Griddle

G60-2G48SS

138,000 BTUH

2 Storage Bases

2 Open Burners

48" Griddle

G Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows G60-10RR)

Range Size: 60"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G60-G60RR

166,000 BTUH

2 Standard Ovens

60" Griddle

G60-G60RS

128,000 BTUH

1 Standard Oven

1 Storage Base

60" Griddle

G60-G60SS

90,000 BTUH

2 Storage Bases

60" Griddle

G Series 60" Raised Griddle/Broiler Gas Range

  • Natural Gas and Liquid Propane Available

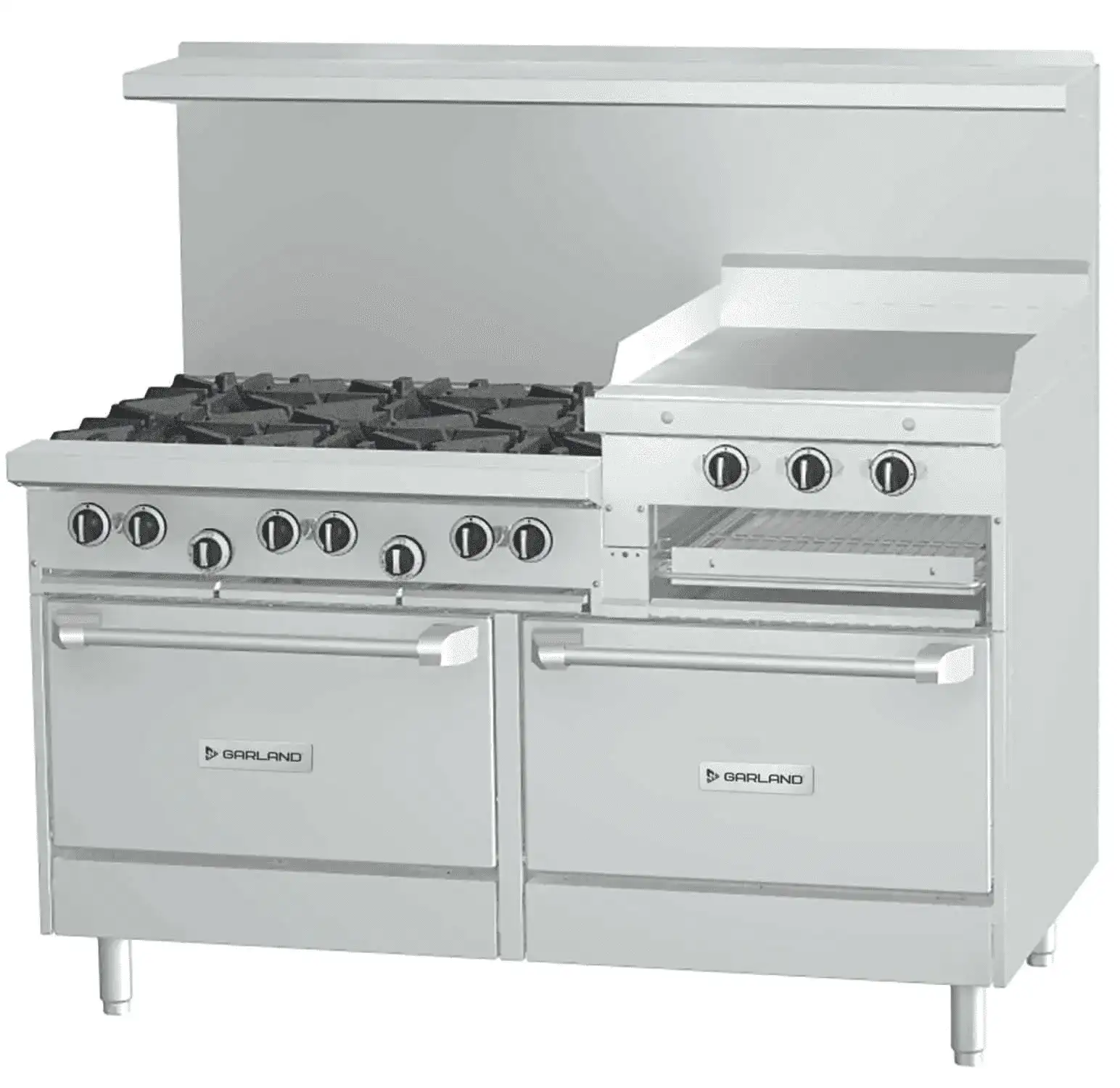

(Image shows G60-6R24RR)

Range Size: 60"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

G60-6R24RR

307,000 BTUH

2 Standard Ovens

6 Open Burners

24" Raised Griddle/Broiler

G60-6R24RS

269,000 BTUH

1 Standard Oven

1 Storage Base

6 Open Burners

24" Raised Griddle/Broiler

G60-6R24SS

231,000 BTUH

2 Storage Bases

6 Open Burners

24" Raised Griddle/Broiler

U Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

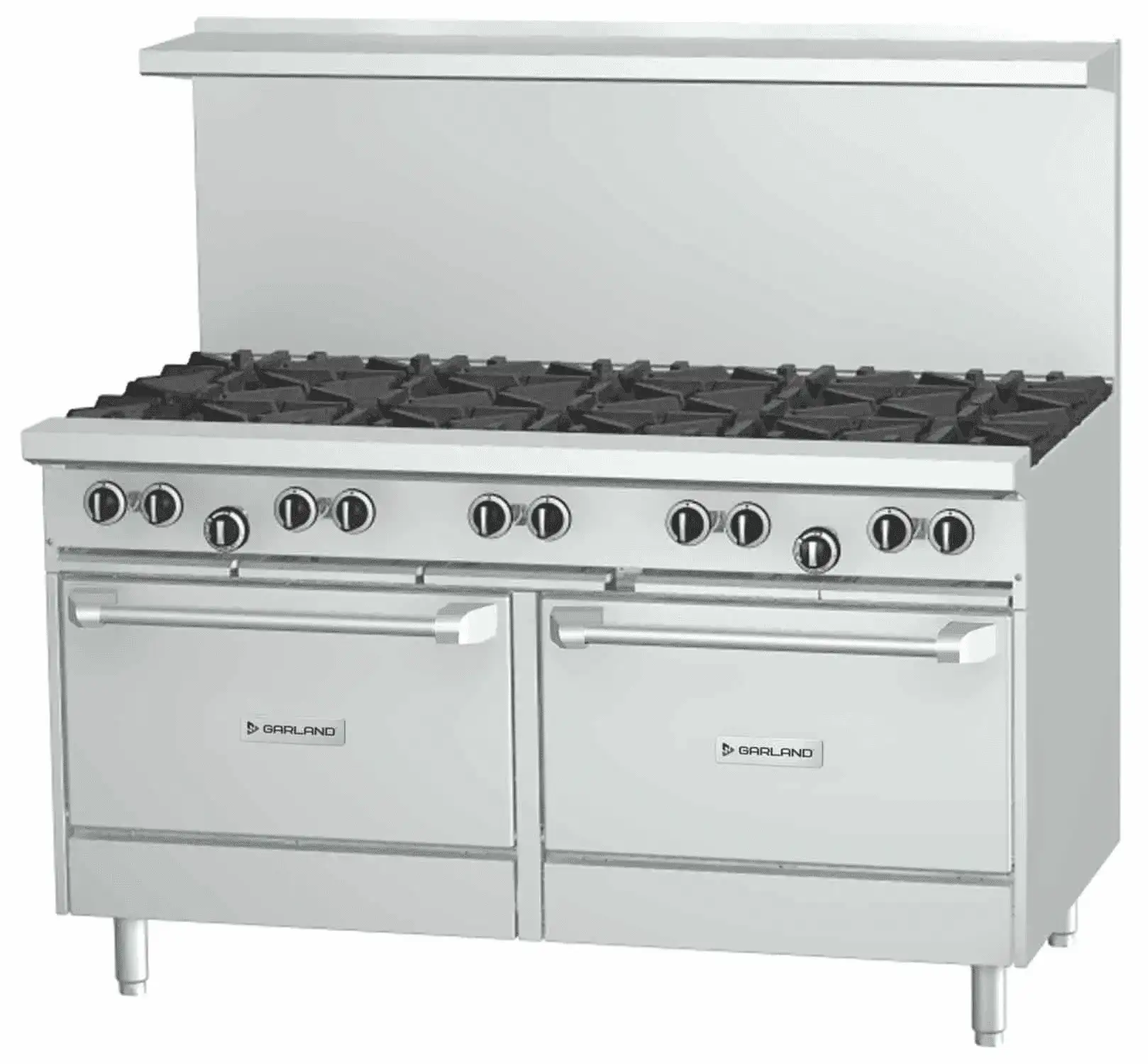

(Image shows U60-10RR)

Range Size: 59.10"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

U60-10RR

396,000 BTUH

2 Standard Ovens

10 Open Burners

U60-10RS

358,000 BTUH

10 Open Burners

1 Standard Oven

10 Open Burners

U60-10SS

320,000 BTUH

2 Storage Bases

10 Open Burners

U Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U60-10RR)

Range Size: 59.10"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

U60-8G12RR

350,000 BTUH

2 Standard Oven

12" Griddle

8 Open Burners

U60-8G12RS

312,000 BTUH

1 Standard Oven

1 Storage Base

12" Griddle

8 Open Burners

U60-8G12SS

274,000 BTUH

2 Storage Bases

12" Griddle

8 Open Burners

U Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U60-10RR)

Range Size: 59.10"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

U60-6G24RR

304,000 BTUH

2 26" Standard Oven

24" Griddle

6 Open Burners

U60-6G24RS

266,000 BTUH

1 26" Standard Oven

1 Storage Base

24" Griddle

6 Open Burners

U60-6G24SS

228,000 BTUH

2 Storage Bases

24" Griddle

6 Open Burners

U Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U60-10RR)

Range Size: 59.10"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

U60-4G36RR

258,000 BTUH

2 26" Standard Ovens

36" Griddle

4 Open Burners

U60-4G36RS

220,000 BTUH

1 26" Standard Oven

1 Storage Base

36" Griddle

4 Open Burners

U60-4G36SS

182,000 BTUH

2 Storage Bases

4 Open Burners

36" Griddle

U Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows 10-burner model with 2-oven base)

Range Size: 59.10"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

U60-2G48RR

212,000 BTUH

2 26" Standard Ovens

2 Open Burners

48" Griddle

U60-2G48RS

174,000 BTUH

1 26" Standard Oven

1 Storage Base

2 Open Burners

48" Griddle

U60-2G48SS

136,000 BTUH

2 Storage Bases

2 Open Burners

48" Griddle

U Series 60" Gas Restaurant Range

  • Natural Gas and Liquid Propane Available

(Image shows U60-10RR)

Range Size: 59.10"W x 57"H x 34.5"D

Burner Rating: 26,000-33,000 BTUH

Model

Base

Top

U60-G60RR

166,000 BTUH

2 26" Standard Ovens

60" Griddle

U60-G60RS

128,000 BTUH

1 26" Standard Oven

1 Storage Base

60" Griddle

U60-G60SS

90,000 BTUH

2 Storage Bases

60" Griddle


HEAVY-DUTY GAS RANGES

12" WIDE HEAVY-DUTY GAS RANGES

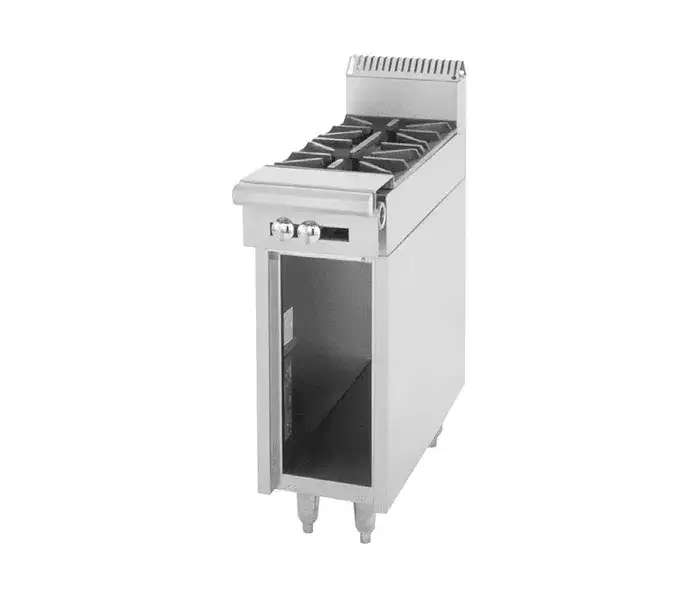

Master Series Open Burner Range Attachment

  • Natural Gas and Liquid Propane Available

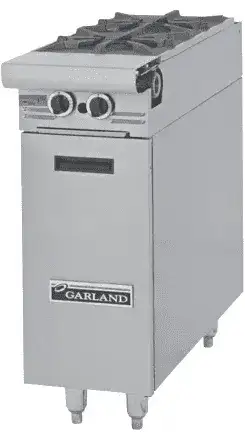

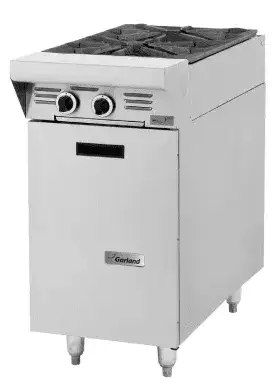

(Image shows M12S)

Range Size: 12"W x 36.38"H x 38"D

Modular Size: 12"W x 9.5"H x 38"D

Burner Rating: 24,000

Model

Base

Top

M12S

48,000 BTUH

Storage Base

2 Open Burners

M12T

48,000 BTUH

Modular

2 Open Burners

Cuisine Series Heavy Duty 12" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C12836-6)

Range Size: 12"W x 42"H x 37.88"D

Modular Size: 12"W x 10"H x 37.88"D

Burner Rating: 30,000

Model

Base

Top

C12836-15

45,000 BTUH

Cabinet Base

12" French Tops

C12836-15M

45,000 BTUH

Modular

12" French Tops

Cuisine Series Heavy Duty 12" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C12836-6)

Range Size: 12"W x 42"H x 37.88"D

Modular Size: 12"W x 10"H x 37.88"D

Model

Base

Top

C12836-8

25,000 BTUH

Cabinet Base

12" Hot Tops

C12836-8M

25,000 BTUH

Modular

12" Hot Tops

Cuisine Series Heavy Duty 12" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C12836-6)

Range Size: 12"W x 42"H x 37.88"D

Modular Size: 12"W x 10"H x 37.88"D

Burner Rating: 30,000

Model

Base

Top

C12836-6

60,000 BTUH

Cabinet Base

12" Open Burners

C12836-6M

60,000 BTUH

Modular

12" Open Burners

Cuisine Series Heavy Duty 12" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C12846-6)

Range Size: 12"W x 42"H x 37.88"D

Modular Size: 12"W x 10"H x 37.88"D

Model

Base

Top

C12836-1

30,000 BTUH

Cabinet Base

12" Manual Valve Controlled Griddle

C12836-1M

30,000 BTUH

Modular

12" Manual Valve Controlled Griddle

C12836-1-1

30,000 BTUH

Cabinet Base

12" Thermostatic Controlled Griddle

C12836-1-1M

30,000 BTUH

Modular

12" Thermostatic Controlled Griddle

Master Series Even Heat Hot Top Range Attachment

  • Natural Gas and Liquid Propane Available

(Image shows M12S-6)

Range Size: 12"W x 36.38"H x 38"D

Modular Size: 12"W x 9.5"H x 38"D

Model

Base

Top

M12S-6

30,000 BTUH

Storage Base

1 Even Heat Hot Top

M12T-6

30,000 BTUH

Modular

1 Even Heat Hot Top

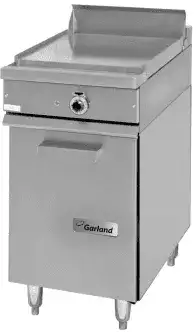

Master Series Griddle Range Attachment

  • Natural Gas and Liquid Propane Available

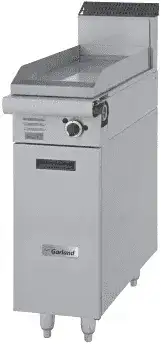

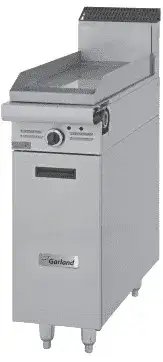

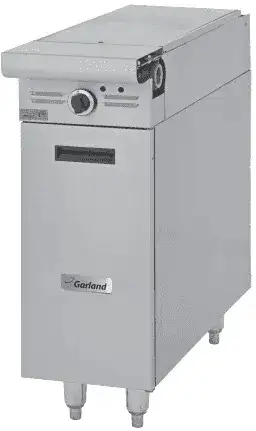

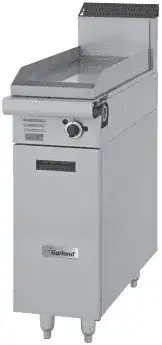

(Image shows M12S-7 with low-profile backguard)

Range Size: 12"W x 36.75"H x 38"D

Modular Size: 12"W x 9.5"H x 38"D

Model

Base

Top

M12S-7

30,000 BTUH

Storage Base

12" Manual Control Griddle

M12T-7

30,000 BTUH

Storage Base

12" Manual Control Griddle

Master Series Griddle Range Attachment

  • Natural Gas and Liquid Propane Available
  • Thermostat Controls

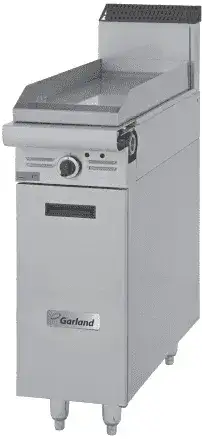

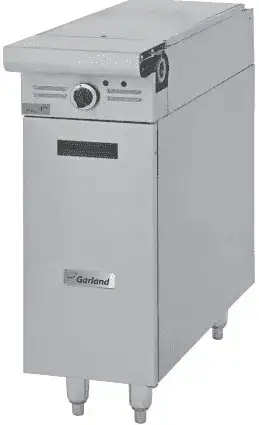

(Image shows M12S-8 with low-profile backguard)

Range Size: 12"W x 36.75"H x 38"D

Modular Size: 12"W x 9.5"H x 38"D

Model

Base

Top

M12S-8

30,000 BTUH

Storage Base

12" Thermostat Control Griddle

M12T-8

30,000 BTUH

Modular

12" Thermostat Control Griddle

17" WIDE HEAVY-DUTY GAS RANGES

Master Series Heavy Duty Range-Match Char-Broiler

  • Natural Gas and Liquid Propane Available
  • Piezo Spark Ignition

(Image shows M17B)

Range Size: 17"W x 46.25"H x 38"D

Modular Size: 17"W x 24"H x 38"D

Model

Base

Top

M17B

45,000 BTUH

Storage Base

Charbroiler

M17BT

45,000 BTUH

Modular

Charbroiler

Master Series Open Burner Range Attachment

  • Natural Gas and Liquid Propane Available

(Image shows M4S)

Range Size: 17"W x 36.38"H x 38"D

Modular Size: 17"W x 9.5"H x 38"D

Burner Rating: 35,000

Model

Base

Top

M4S

70,000 BTUH

Storage Base

2 Open Burners

M4T

70,000 BTUH

Modular

2 Open Burners

Master Series Front-Fired Hot Top Range Attachment

  • Natural Gas and Liquid Propane Available

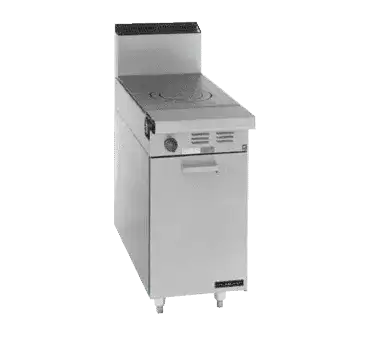

(Image shows M5S)

Range Size: 17"W x 36.38"H x 38"D

Modular Size: 17"W x 9.5"H x 38"D

Model

Base

Top

M5S

45,000 BTUH

Storage Base

17" Front-Fired Hot Top

M5T

45,000 BTUH

Modular

17" Front-Fired Hot Top

Master Series Even Heat Hot Top Range Attachment

  • Natural Gas and Liquid Propane Available

(Image shows M6S)

Range Size: 17"W x 36.38"H x 38"D

Modular Size: 17"W x 9.5"H x 38"D

Model

Base

Top

M6S

30,000 BTUH

Storage Base

17" Even Heat Hot Top

M6T

30,000 BTUH

Modular

17" Even Heat Hot Top

Master Series Griddle Range Attachment

  • Natural Gas and Liquid Propane Available

(Image shows M7S with low-profile backguard)

Range Size: 17"W x 36.38"H x 38"D

Modular Size: 17"W x 9.5"H x 38"D

Model

Base

Top

M7S

33,000 BTUH

Storage Base

17" Valve Controlled Griddle

M7T

33,000 BTUH

Modular

17" Valve Controlled Griddle

Master Series Griddle Range Attachment

  • Natural Gas and Liquid Propane Available

(Image shows M8S)

*Control panel not as depicted*

Range Size: 17"W x 36.38"H x 38"D

Modular Size: 17"W x 9.5"H x 38"D

Model

Base

Top

M8S

33,000 BTUH

Storage Base

17" Thermostat Controlled Griddle

M8T

33,000 BTUH

Modular

17" Thermostat Controlled Griddle

Master Series Heavy Duty Range-Match Char-Broiler

  • Natural Gas and Liquid Propane Available

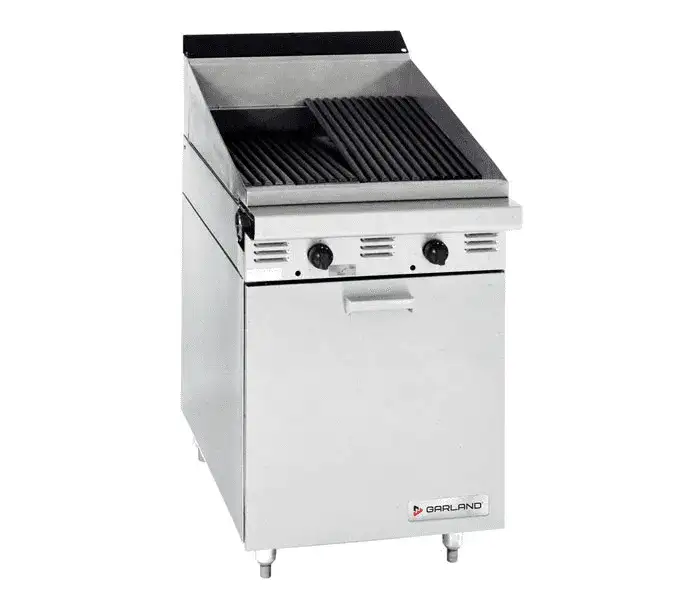

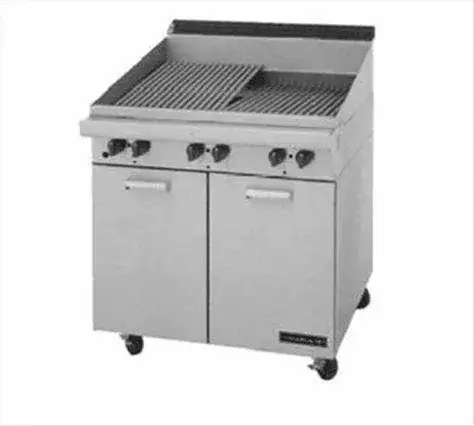

(Image shows 34" MST24B storage model)

Range Size: 17"W x 46.25"H x 38"D

Modular Size: 17"W x 24"H x 38"D

Model

Base

Top

MST17B

45,000 BTUH

Storage Base

17" Charbroiler

MST17BT

45,000 BTUH

Modular

17" Charbroiler

W/ ELECTRIC SPARK IGNITION

MST17BE

45,000 BTUH

Storage Base

17" Charbroiler

18" WIDE HEAVY-DUTY GAS RANGES

Cuisine Series Heavy Duty Broiler w/ Non-Adjustable Racks

  • Natural Gas and Liquid Propane Available

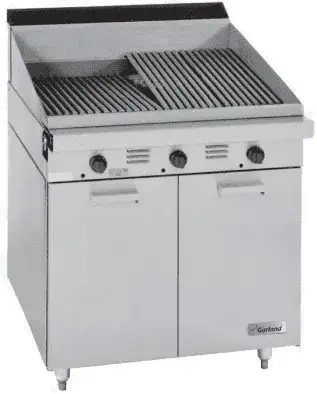

(Image shows 36" C0836-36A model)

Range Size: 18"W x 36"H x 38"D

Modular Size: 18"W x 19"H x 38"D

Model

Base

Top

C0836-18A

54,000 BTUH

Storage Base

18" Charbroiler w/ Cast Iron Radiants

C0836-18AM

54,000 BTUH

Modular

18" Charbroiler w/ Cast Iron Radiants

Cuisine Series Heavy Duty 18" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C1836-7)

Range Size: 18"W x 36"H x 38"D

Modular Size: 18"W x 10"H x 38"D

Model

Base

Top

C1836-1

30,000 BTUH

Cabinet Base

18" Manual Valve Controlled Griddle

C1836-1M

30,000 BTUH

Modular

18" Manual Valve Controlled Griddle

C1836-1-1

30,000 BTUH

Cabinet Base

18" Thermostatic Controlled Griddle

C1836-1-1M

30,000 BTUH

Modular

18" Thermostatic Controlled Griddle

Cuisine Series Heavy Duty 18" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C1836-7)

Range Size: 18"W x 36"H x 38"D

Modular Size: 18"W x 10"H x 38"D

Model

Base

Top

C1836-9

32,500 BTUH

Cabinet Base

18" Hot Top

C1836-9M

32,500 BTUH

Modular

18" Hot Top

Cuisine Series Heavy Duty 18" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C1836-7)

Range Size: 18"W x 36"H x 38"D

Modular Size: 18"W x 10"H x 38"D

Burner Rating: 30,000

Model

Base

Top

C1836-7

60,000 BTUH

Cabinet Base

2 Open Burners

C1836-7M

60,000 BTUH

Modular

2 Open Burners

24" WIDE HEAVY-DUTY GAS RANGES

Cuisine Series Heavy Duty Broiler w/ Adjustable Racks

  • Natural Gas and Liquid Propane Available

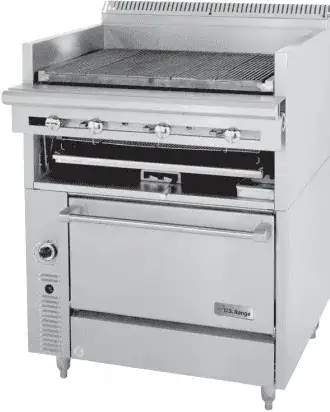

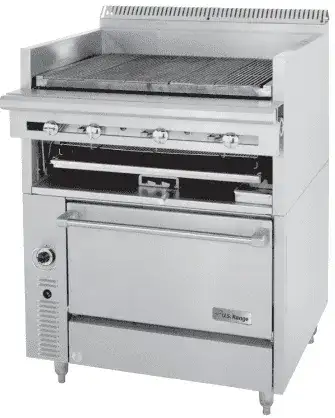

(Image shows 36" C836-436A with CI Radiants)

Range Size: 24"W x 36"H x 38"D

Model

Base

Top

C0836-324A

90,000 BTUH

Storage Base

Charbroiler w/ Briquettes

C0836-424A

72,000 BTUH

Storage Base

Charbroiler

w/ Cast Iron Radiants

Master Series Heavy Duty Range-Match Char-Broiler

  • Natural Gas and Liquid Propane Available

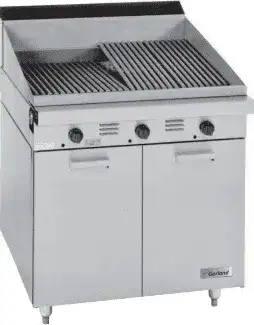

(Image shows 34" M34B model)

Range Size: 24"W x 46.25"H x 38"D

Modular Size: 24"W x 24"H x 38"D

Model

Base

Top

M24B

60,000 BTUH

Storage Base

24"W Charbroiler w/ Briquettes

M24BT

60,000 BTUH

Modular

24"W Charbroiler w/ Briquettes

Cuisine Series Heavy Duty Broiler w/ Non-Adjustable Racks

  • Natural Gas and Liquid Propane Available

(Image shows 36" C0836-36A model)

Range Size: 24"W x 36"H x 38"D

Modular Size: 24"W x 19"H x 38"D

Model

Base

Top

C0836-24A

72,000 BTUH

Storage Base

24"W Charbroiler w/ Cast Iron Radiants

C0836-24AM

72,000 BTUH

Modular

24"W Charbroiler w/ Cast Iron Radiants

Master Series Heavy Duty Range-Match Char-Broiler

  • Natural Gas and Liquid Propane Available

(Image shows 34" M34B model)

Range Size: 24"W x 42"H x 37.88"D

Model

Base

Top

MST24B

60,000 BTUH

Storage Base

24"W Charbroiler

MST24BT

60,000 BTUH

Storage Base

24"W Charbroiler

W/ ELECTRIC SPARK IGNITION

MST24BE

60,000 BTUH

Storage Base

24"W Charbroiler

Cuisine Series Heavy-Duty 24" Add-A-Unit

  • Natural Gas and Liquid Propane Available

(Image shows C12836-6)

Range Size: 24"W x 42"H x 37.88"D

Modular Size: 24"W x 10"H x 37.88"D

Model

Base

Top

C24836-1

60,000 BTUH

Cabinet Base

24" Manual Control Griddle

C24836-1-1

60,000 BTUH

Cabinet Base

24" Thermostatic Control Griddle

C24836-1-1M

60,000 BTUH

Modular

24" Thermostatic Control Griddle

C24836-1M

60,000 BTUH

Modular

24" Manual Control Griddle

34" WIDE HEAVY-DUTY GAS RANGES

Master Series Heavy Duty Range-Match Char-Broiler

  • Natural Gas and Liquid Propane Available

(Image shows M34B)

Range Size: 34"W x 46.25"H x 38"D

Modular Size: 34"W x 24"H x 38"D

Model

Base

Top

M34B

90,000 BTUH

Storage Base

34"W Charbroiler w/ Briquettes

M34BT

90,000 BTUH

Modular

34"W Charbroiler w/ Briquettes

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

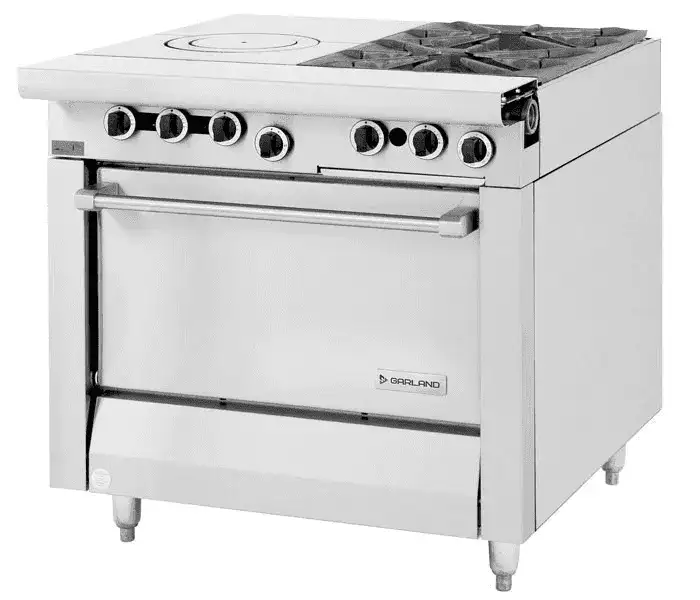

(Image shows M42-6R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

M42-6S

100,000 BTUH

Storage Base

Even Heat Hot Top

2 Open Burners

M42-6T

100,000 BTUH

Modular

Even Heat Hot Top

2 Open Burners

M42-6R

140,000 BTUH

Standard Oven w/ Piezo Spark Ignition

Even Heat Hot Top

2 Open Burners

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

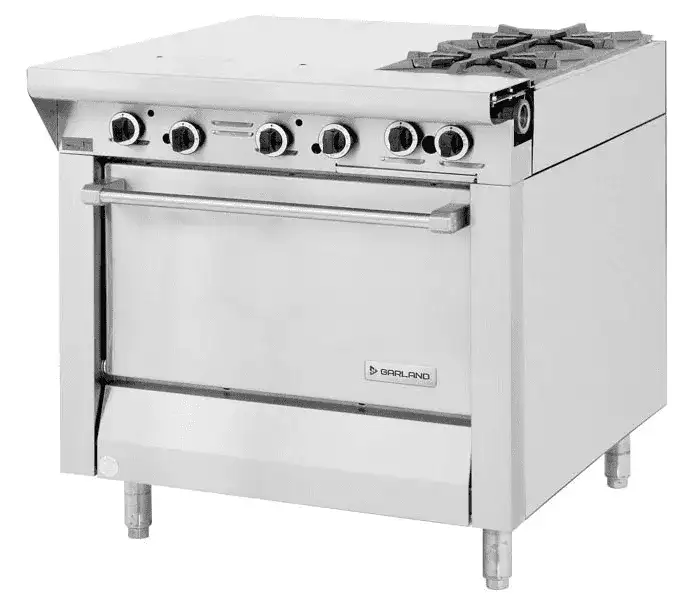

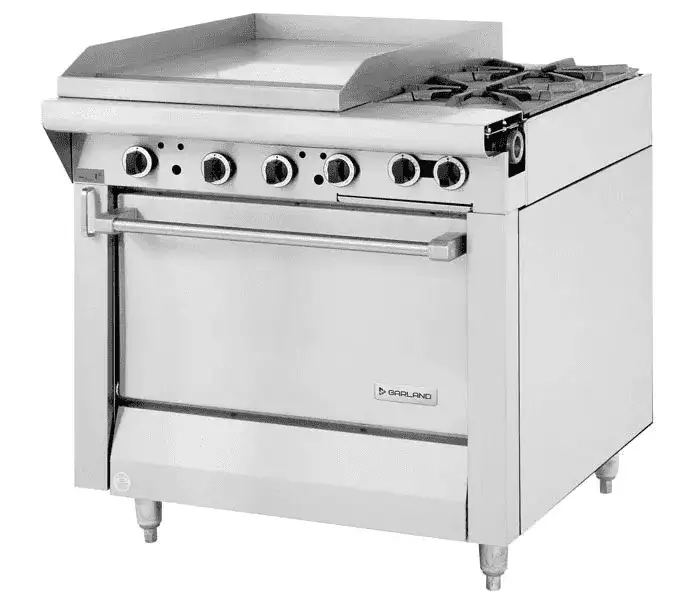

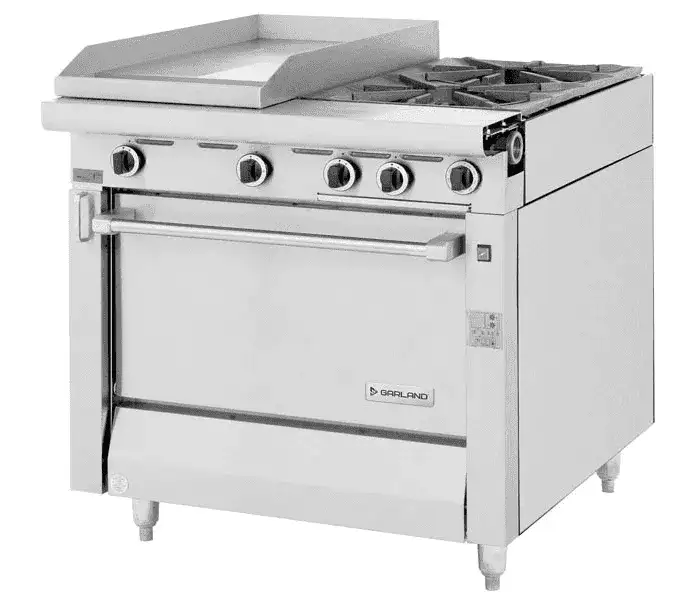

(Image shows M42R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

M42S

103,000 BTUH

Storage Base

2 Open Burners

17" Valve Control Griddle

M42T

103,000 BTUH

Modular

2 Open Burners

17" Valve Control Griddle

M42R

143,000 BTUH

Standard Oven w/ Piezo Spark Ignition

2 Open Burners

17" Valve Control Griddle

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows M43-2R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Model

Base

Top

M43-3S

66,000 BTUH

Storage Base

3 Even Heat Hot Tops

M43-3T

66,000 BTUH

Modular

3 Even Heat Hot Tops

M43-3R

106,000 BTUH

Standard Oven

3 Even Heat Hot Tops

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

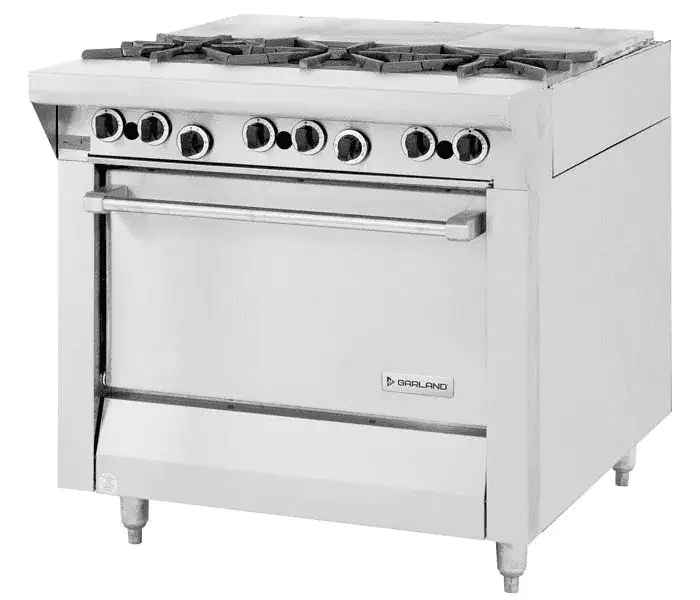

(Image shows M43-2R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 24,000

Model

Base

Top

M43-2S

92,000 BTUH

Storage Base

2 Open Burners

2 Even Heat Hot Tops

M43-2T

92,000 BTUH

Modular

2 Open Burners

2 Even Heat Hot Tops

M43-2R

132,000 BTUH

Standard Oven

2 Open Burners

2 Even Heat Hot Tops

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows M43-2R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 24,000

Model

Base

Top

M43-1S

118,000 BTUH

Storage Base

4 Open Burners

1 Even Heat Hot Top

M43-1T

118,000 BTUH

Modular

4 Open Burners

1 Even Heat Hot Top

M43-1R

158,000 BTUH

Standard Oven

4 Open Burners

1 Even Heat Hot Top

Master Series Heavy Duty French Top Range

  • Natural Gas and Liquid Propane Available

(Image shows M43-2R)

Range Size: 34"W x 36.75"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 18,000

Model

Base

Top

M43-FTR

99,000 BTUH

Standard Oven

3 Open Burners

3 Hot Tops

M43-FTS

59,000 BTUH

Storage Base

3 Open Burners

3 Hot Tops

M43-FTT

59,000 BTUH

Modular

3 Open Burners

3 Hot Tops

Master Series Heavy Duty Open Burner Top Range

  • Natural Gas and Liquid Propane Available

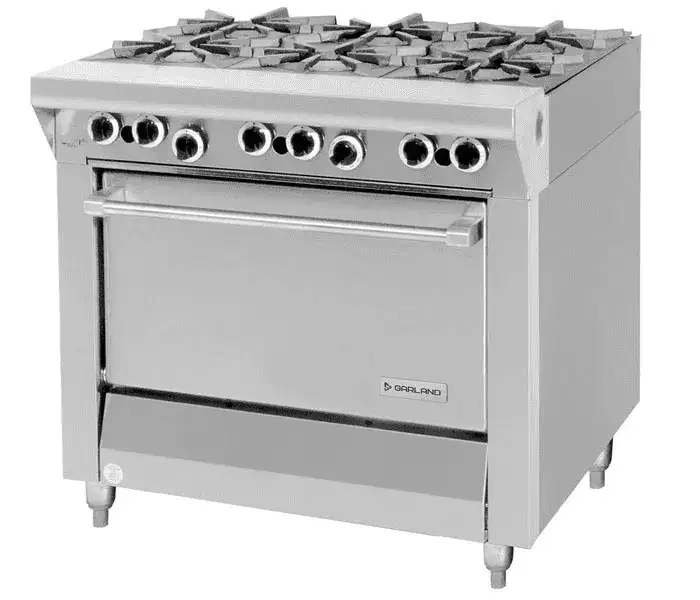

(Image shows M43R)

Range Size: 34"W x 36.75"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 24,000

Model

Base

Top

M43R

184,000 BTUH

Standard Oven

6 Open Burners

M43S

144,000 BTUH

Storage Base

6 Open Burners

M43T

144,000 BTUH

Modular

6 Open Burners

Master Series Heavy Duty Open Burner Top Range

  • Natural Gas and Liquid Propane Available

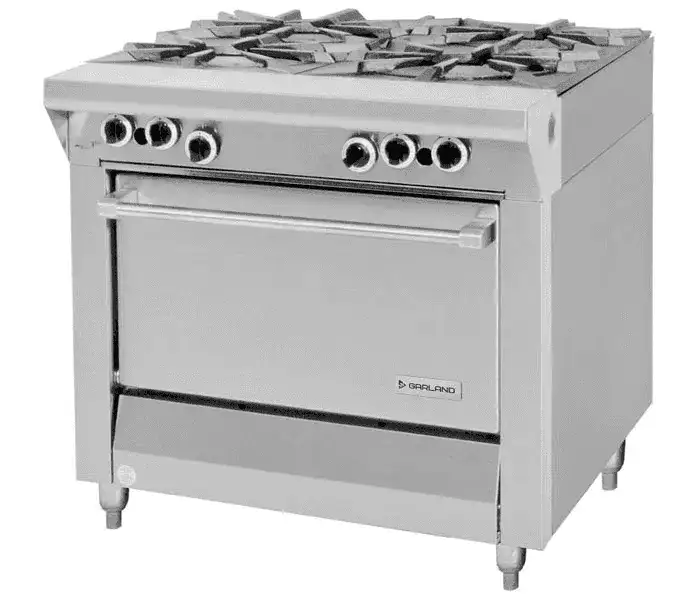

(Image shows M44R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

M44R

180,000 BTUH

Standard Oven

4 Open Burners

M44S

140,000 BTUH

Storage Base

4 Open Burners

M44T

140,000 BTUH

Modular

4 Open Burners

Master Series Heavy Duty Front-Fired Hot Top Range

  • Natural Gas and Liquid Propane Available

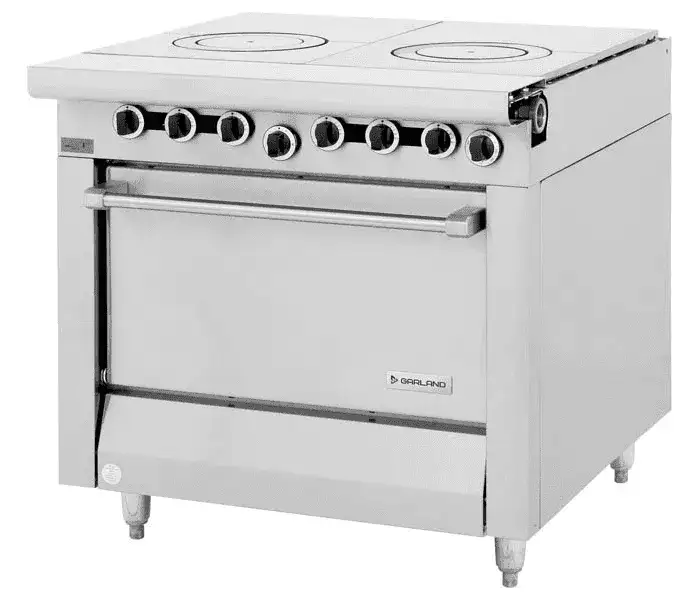

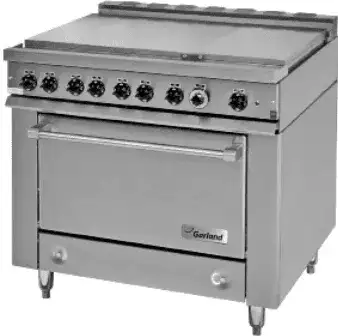

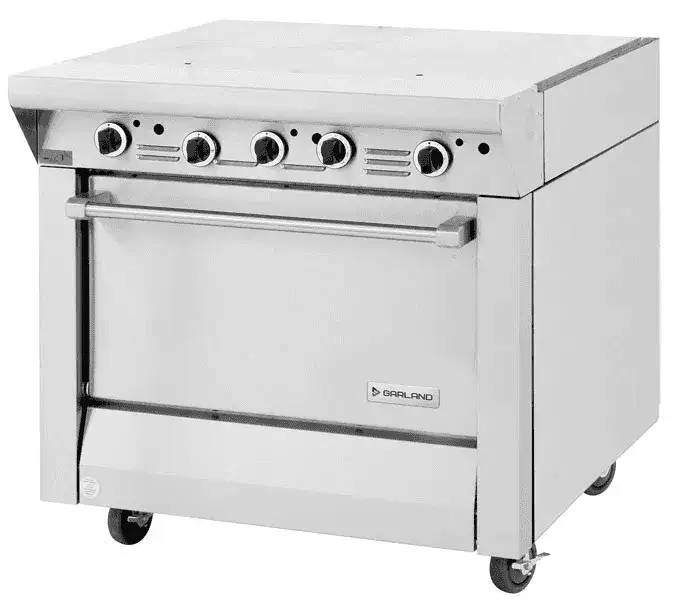

(Image shows M45R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Model

Base

Top

M45R

130,000 BTUH

Standard Oven

2 Front-Fired Hot Tops

M45S

90,000 BTUH

Storage Base

2 Front-Fired Hot Tops

M45T

90,000 BTUH

Modular

2 Front-Fired Hot Tops

Master Series Heavy Duty Even Heat Hot Top Range

  • Natural Gas and Liquid Propane Available

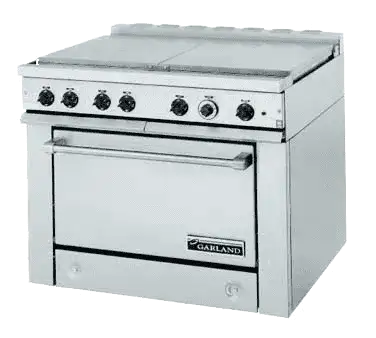

(Image shows M46R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Model

Base

Top

M46R

130,000 BTUH

Standard Oven

2 Section Even Heat Hot Top

M46S

90,000 BTUH

Storage Base

2 Section Even Heat Hot Top

M46T

90,000 BTUH

Modular

2 Section Even Heat Hot Top

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

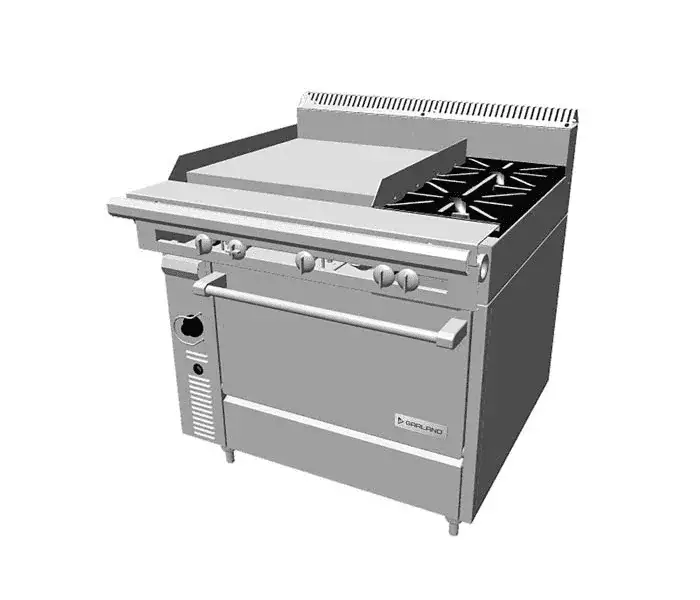

(Image shows M47-23R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 24,000 BTUH

Model

Base

Top

M47-23R

154,000 BTU

Standard Oven

23"W Valve Control Griddle

2 Open Burners

M47-23S

104,000 BTU

Storage Base

23"W Valve Control Griddle

2 Open Burners

M47-23T

104,000 BTU

Modular

23"W Valve Control Griddle

2 Open Burners

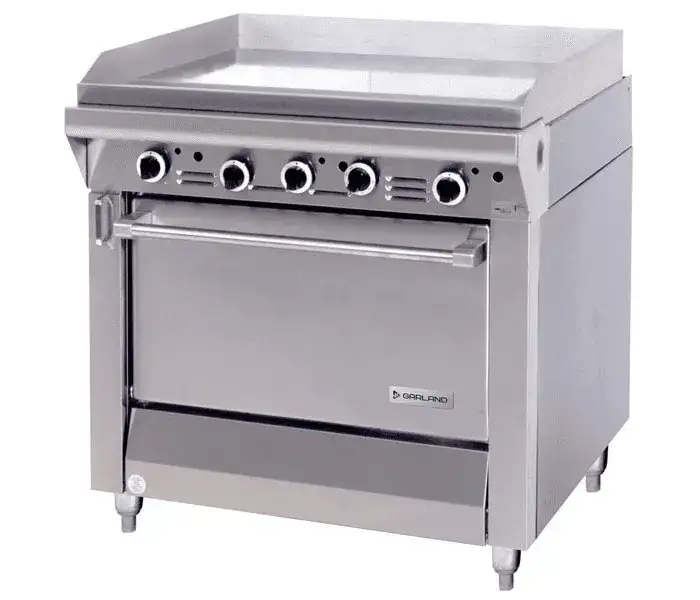

Master Series Heavy Duty Griddle Top Range

  • Natural Gas and Liquid Propane Available

(Image shows M47R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Model

Base

Top

M47S

99,000 BTUH

Storage Base

34" Valve Controlled Griddle

M47T

99,000 BTUH

Modular

34" Valve Controlled Griddle

M47R

139,000 BTUH

Standard Oven

34" Valve Controlled Griddle

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows M48-23R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 24,000 BTUH

Model

Base

Top

M48-23S

114,000 BTUH

Storage Base

23" Thermostat Control Griddle
2 Open Burners

M48-23T

114,000 BTUH

Modular

23" Thermostat Control Griddle
2 Open Burners

M48-23R

154,000 BTUH

Standard Oven

23" Thermostat Control Griddle
2 Open Burners

Master Series Heavy Duty Griddle Top Range

  • Natural Gas and Liquid Propane Available

(Image shows M48R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Model

Base

Top

M48S

99,000 BTUH

Storage Base

34"W Thermostat Controlled Griddle

M48T

99,000 BTUH

Modular

34"W Thermostat Controlled Griddle

M48R

139,000 BTUH

Standard Oven

34"W Thermostat Controlled Griddle

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

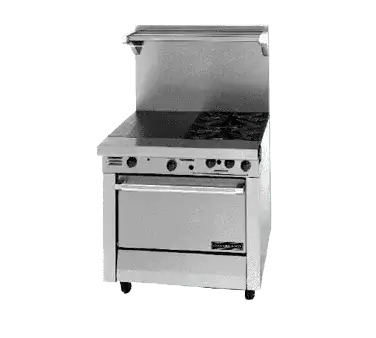

(Image shows M54R)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

M54S

115,000 BTUH

Storage Base

17"W Front-Fired Hot Top

2 Open Burners

M54T

115,000 BTUH

Modular

17"W Front-Fired Hot Top

2 Open Burners

M54R

155,000 BTUH

Standard Oven

17"W Front-Fired Hot Top

2 Open Burners

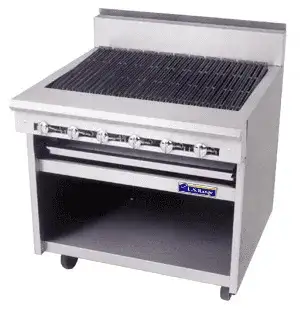

Master Series Heavy Duty Range-Match Char-Broiler

  • Natural Gas and Liquid Propane Available

(Image shows MST34B)

Range Size: 34"W x 46.25"H x 38"D

Modular Size: 34"W x 24"H x 38"D

Model

Base

Top

MST34B

90,000 BTUH

Storage Base

34"W Charbroiler

MST34BT

90,000 BTUH

Modular

34"W Charbroiler

W/ ELECTRIC SPARK IGNITION

MST34BE

90,000 BTUH

Storage Base

34"W Charbroiler

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST42R-E)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

MST42-6S-E

100,000 BTUH

Storage Base

17"W Even Heat Hot Top

2 Open Burners

MST42-6T-E

100,000 BTUH

Modular

17"W Even Heat Hot Top

2 Open Burners

MST42-6R-E

140,000 BTUH

Standard Oven

17"W Even Heat Hot Top

2 Open Burners

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

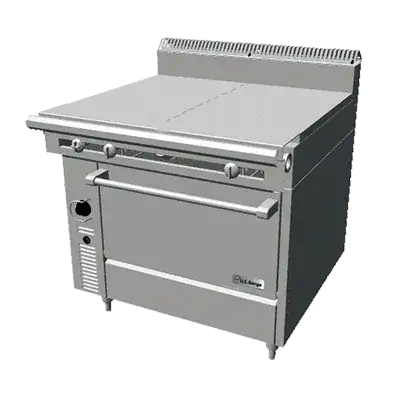

(Image shows MST42R-E)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

MST42-6S-E

100,000 BTUH

Storage Base

17"W Even Heat Hot Top

2 Open Burners

MST42-6T-E

100,000 BTUH

Modular

17"W Even Heat Hot Top

2 Open Burners

MST42-6R-E

140,000 BTUH

Standard Oven

17"W Even Heat Hot Top

2 Open Burners

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST42R-E)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

MST42S-E

103,000 BTUH

Storage Base

17" Valve Control Griddle

2 Open Burners

MST42T-E

103,000 BTUH

Modular Top

17" Valve Control Griddle

2 Open Burners

MST42R-E

143,000 BTUH

Standard Oven

17" Valve Control Griddle

2 Open Burners

Master Series Heavy Duty Open Burner Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST43R-E)

*valve control may not be as depicted*

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 24,000

Model

Base

Top

MST43S-E

Storage Base

6 Open Burners

MST43T-E

Modular

6 Open Burners

MST43R-E

Standard Oven

6 Open Burners

Master Series Heavy Duty Open Burner Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST44R)

*valve control may not be as depicted*

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

MST44S-E

140,000 BTUH

Storage Base

4 Open Burners

MST44T-E

140,000 BTUH

Modular

4 Open Burners

MST44R-E

180,000 BTUH

Standard Oven

4 Open Burners

Master Series Heavy Duty Front-Fired Hot Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST45R)

*valve control may not be as depicted*

Range Size: 34"W x 36.38"H x 31.5"D

Modular Size: 34"W x 9.5"H x 38"D

Model

Base

Top

MST45S-E

90,000 BTUH

Storage Base

2 17" Front-Fired Hot Tops

MST45T-E

90,000 BTUH

Modular

2 17" Front-Fired Hot Tops

MST45R-E

130,000 BTUH

Standard Oven

2 17" Front-Fired Hot Tops

Master Series Heavy Duty Even Heat Hot Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST46R)

*valve control may not be as depicted*

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Model

Base

Top

MST46S-E

90,000 BTUH

Storage Base

2 17" Even Heat Hot Tops

MST46T-E

90,000 BTUH

Modular

2 17" Even Heat Hot Tops

MST46R-E

130,000 BTUH

Standard Oven

2 17" Even Heat Hot Tops

Master Series Heavy Duty Griddle Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST47R)

*valve control may not be as depicted*

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 9.5"H x 38"D

Model

Base

Top

MST47S-E

99,000 BTUH

Storage Base

34" Valve Controlled Griddle

MST47T-E

99,000 BTUH

Modular

34"W Valve Controlled Griddle

MST47R-E

139,000 BTUH

Standard Oven

34"W Valve Controlled Griddle

Master Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available
  • Electric Spark Ignition

(Image shows MST54R)

*valve control may not be as depicted*

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Burner Rating: 35,000

Model

Base

Top

MST54S-E

115,000 BTUH

Storage Base

17"W Front-Fired Hot Top

2 Open Burners

MST54T-E

115,000 BTUH

Modular

17"W Front-Fired Hot Top

2 Open Burners

MST54R-E

155,000 BTUH

Standard Oven

17"W Front-Fired Hot Top

2 Open Burners

36" WIDE HEAVY-DUTY GAS RANGES

Cuisine Series Heavy Duty Griddle Top Range

  • Natural Gas and Liquid Propane Available

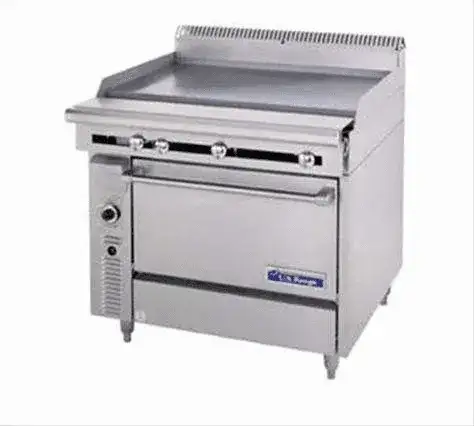

(Image shows C836-1)

Range Size: 36"W x 42"H x 39.88"D

Modular Size: 36"W x 10"H x 39.88"D

Model

Base

Top

C836-1

130,000 BTUH

Standard Oven

36" Manual Valve Control Griddle

C0836-1

90,000 BTUH

Storage Base

36" Manual Valve Control Griddle

C0836-1M

90,000 BTUH

Modular

36" Manual Valve Control Griddle

C836-1-1

130,000 BTUH

Standard Oven

36" Thermostatic Control Griddle

C0836-1-1

90,000 BTUH

Storage Base

36" Thermostatic Control Griddle

C0836-1-1M

90,000 BTUH

Modular

36" Thermostatic Control Griddle

Cuisine Series Heavy Duty Front-Fired Hot Top Range

  • Natural Gas and Liquid Propane Available

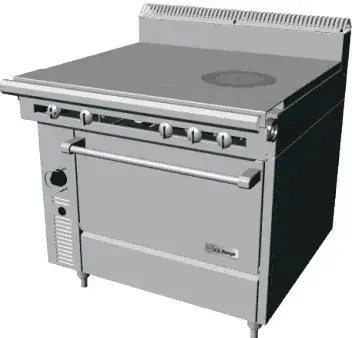

(Image shows C836-10)

Range Size: 36"W x 42"H x 39.88"D

Modular Size: 36"W x 10"H x 39.88"D

Model

Base

Top

C836-10

115,000 BTUH

Standard Oven

2 18" Front Fired Hot Tops

C0836-10

75,000 BTUH

Cabinet Base

2 18" Front Fired Hot Tops

C0836-10M

75,000 BTUH

Modular

2 18" Front Fired Hot Tops

Cuisine Series Heavy Duty Broiler w/ Non-Adjustable Racks

  • Natural Gas and Liquid Propane Available

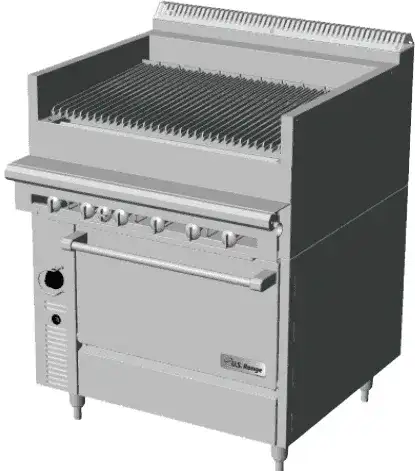

(Image shows C836-36A)

Range Size: 34"W x 36.38"H x 38"D

Modular Size: 34"W x 10"H x 38"D

Model

Base

Top

C836-36A

148,000 BTUH

Standard Oven

36" Broiler

w/ Cast Iron Radiants

C836-36ARC

148,000 BTUH

Convection Oven

36" Broiler w/

Cast Iron Radiants

C0836-36A

108,000 BTUH

Storage Base

36" Broiler w/

Cast Iron Radiants

C0836-36AM

108,000 BTUH

Modular

36" Broiler w/

Cast Iron Radiants

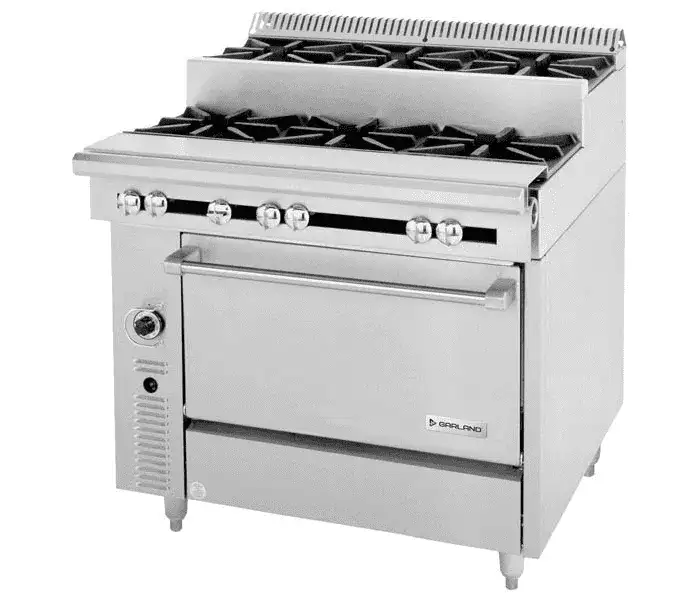

Cuisine Series Heavy Duty Open Burner Top Range

  • Natural Gas and Liquid Propane Available

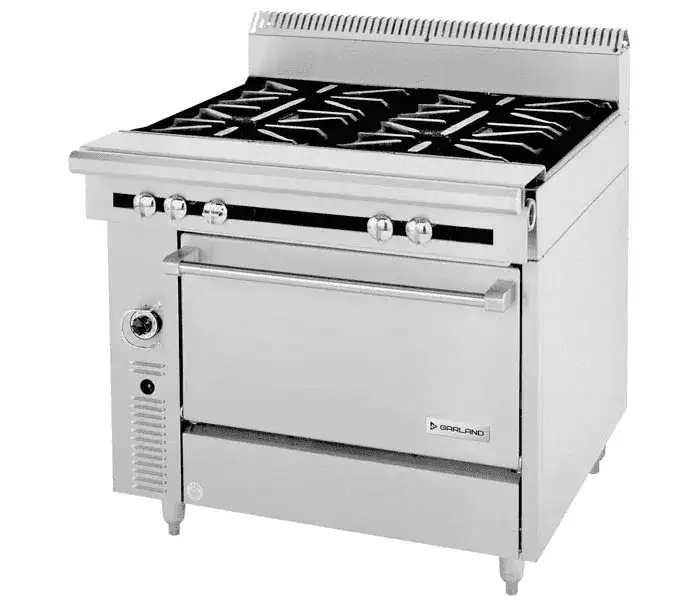

(Image shows C836-6)

Range Size: 36"W x 42"H x 39.88"D

Modular Size: 36"W x 10"H x 39.88"D

Burner Rating: 30,000

Model

Base

Top

C0836-6

180,000 BTUH

Cabinet Base

6 Open Burners

C0836-6M

180,000 BTUH

Modular

6 Open Burners

C836-6

220,000 BTUH

Standard Oven

6 Open Burners

Cuisine Series Heavy Duty Open Burner Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-6SU)

Range Size: 36"W x 42"H x 39.88"D

Modular Size: 36"W x 10"H x 39.88"D

Burner Rating: 30,000

Model

Base

Top

C0836-6SU

180,000 BTUH

Cabinet Base

6 Step-Up Open Burners

C0836-6SUM

180,000 BTUH

Modular

6 Step-Up Open Burners

C836-6SU

220,000 BTUH

Standard Oven

6 Step-Up Open Burners

Cuisine Series Heavy Duty Open Burner Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-7)

Range Size: 36"W x 42"H x 39.88"D

Modular Size: 36"W x 10"H x 39.88"D

Burner Rating: 30,000

Model

Base

Top

C0836-7

120,000 BTUH

Cabinet Base

4 Open Burners

C0836-7M

120,000 BTUH

Modular

4 Open Burners

C836-7

160,000 BTUH

Standard Oven

4 Open Burners

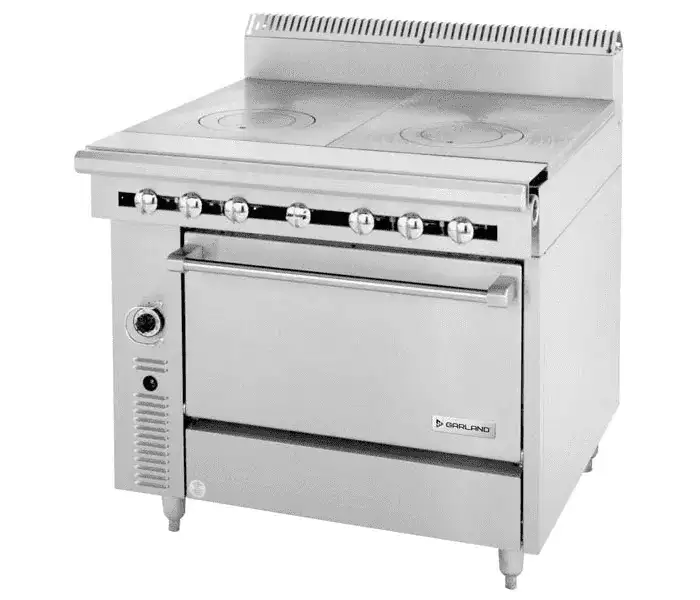

Cuisine Series Heavy Duty Even Heat Hot Top Range

  • Natural Gas and Liquid Propane Available

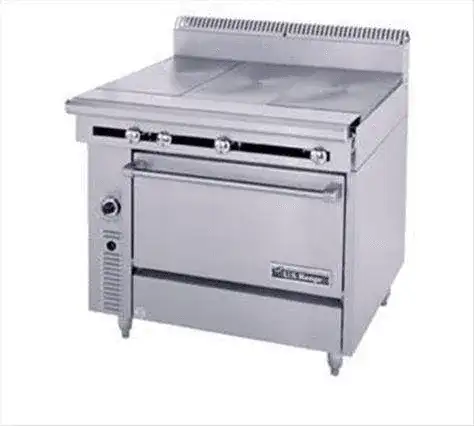

(Image shows C836-8)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 37.38"D

Model

Base

Top

C0836-8

75,000 BTUH

Cabinet

3 12" Hot Tops

C0836-8M

75,000 BTUH

Modular

3 12" Hot Tops

C836-8

115,000 BTUH

Standard Oven

3 12" Hot Tops

Cuisine Series Heavy Duty Even Heat Hot Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-9)

Range Size: 36"W x 42"H x 39.88"D

Modular Size: 36"W x 10"H x 39.88"D

Model

Base

Top

C0836-9

65,000 BTUH

Cabinet

2 18" Hot Tops

C0836-9

65,000 BTUH

Modular

2 18" Hot Tops

C836-9

105,000 BTUH

Standard Oven

2 18" Hot Tops

Cuisine Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-11)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Model

Base

Top

C836-11

110,000 BTUH

Standard Oven

1 Front Fired Hot Top

1 Even Heat Hot Top (Left)

C0836-11

70,000 BTUH

Cabinet

1 Front Fired Hot Top

1 Even Heat Hot Top (Left)

C0836-11M

70,000 BTUH

Modular

1 Front Fired Hot Top

1 Even Heat Hot Top (Left)

C386-11R

110,000 BTUH

Standard Oven

1 Front Fired Hot Top

1 Even Heat Hot Top (Right)

C0836-11R

70,000 BTUH

Cabinet

1 Front Fired Hot Top

1 Even Heat Hot Top (Right)

C0836-11RM

70,000 BTUH

Modular

1 Front Fired Hot Top

1 Even Heat Hot Top (Right)

Cuisine Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-12)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 37.38"D

Burner Rating: 30,000 BTUH

Model

Base

Top

C836-12

150,000 BTUH

Standard Oven

2 Open Burners (Left)

2 12" Hot Top

C0836-12

110,000 BTUH

Cabinet Base

2 Open Burners (Left)

2 12" Hot Top

C0836-12M
110,000
BTUH

Modular

2 Open Burners (Left)

2 12" Hot Top

C836-12C

150,000 BTUH

Standard Oven

2 Open Burners (Center)

2 12" Hot Top

C0236-12C

110,000 BTUH

Cabinet Base

2 Open Burners (Center)

2 12" Hot Top

C0836-12CM

110,000 BTUH

Modular

2 Open Burners (Center)

2 12" Hot Top

C836-12R

150,000 BTUH

Standard Oven

2 Open Burners (Right)

2 12" Hot Top

C0836-12R

110,000 BTUH

Cabinet Base

2 Open Burners (Right)

2 12" Hot Top

C0836-12RM

110,000 BTUH

Modular

2 Open Burners (Right)

2 12" Hot Top

Cuisine Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-13)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Burner Rating: 30,000 BTUH

Model

Base

Top

C836-13

185,000 BTUH

Standard Oven

4 Open Burners

1 12" Hot Top (Right)

C0836-13

145,000 BTUH

Cabinet Base

4 Open Burners

1 12" Hot Top (Right)

C0836-13M

145,000 BTUH

Modular

4 Open Burners

1 12" Hot Top (Right)

C836-13C

185,000 BTUH

Standard Oven

4 Open Burners

1 12" Hot Top (Center)

C0236-13C

145,000 BTUH

Cabinet Base

4 Open Burners

1 12" Hot Top (Center)

C0836-13CM

145,000 BTUH

Modular

4 Open Burners

1 12" Hot Top (Center)

C836-13L

185,000 BTUH

Standard Oven

4 Open Burners

1 12" Hot Top (Left)

C0836-13L

145,000 BTUH

Cabinet Base

4 Open Burners

1 12" Hot Top (Left)

C0836-13LM

145,000 BTUH

Modular

4 Open Burners

1 12" Hot Top (Left)

Cuisine Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-14)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 37.38"D

Burner Rating: 30,000 BTUH

Model

Base

Top

C836-14

132,500 BTUH

Standard Oven

1 Even Heat Hot Top (Right)

2 Open Burners

C0836-14

92,500 BTUH

Cabinet

1 Even Heat Hot Top (Right)

2 Open Burners

C0836-14M

92,500 BTUH

Modular

1 Even Heat Hot Top (Right)

2 Open Burners

C386-14L

132,500 BTUH

Standard Oven

1 Even Heat Hot Top (Left)

2 Open Burners

C0836-14L

92,500 BTUH

Cabinet

1 Even Heat Hot Top (Left)

2 Open Burners

C0836-14LM

92,500 BTUH

Modular

1 Even Heat Hot Top (Left)

2 Open Burners

Cuisine Series Heavy Duty French Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-15)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Burner Rating: 30,000 BTUH

Model

Base

Top

C836-15

175,000 BTUH

Standard Oven

3 12" French Tops

3 Open Burners

C0836-15

135,00 BTUH

Cabinet

3 12" French Tops

3 Open Burners

C0836-15M

135,00 BTUH

Modular

3 12" French Tops

3 Open Burners

Cuisine Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-17R)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Model

Base

Top

C836-17

137,500 BTUH

Standard Oven

1 Front Fired Hot Top (Left)

2 Open Burners

C0836-17

97,500 BTUH

Cabinet

1 Front Fired Hot Top (Left)

2 Open Burners

C0836-171M

97,500 BTUH

Modular

1 Front Fired Hot Top (Left)

2 Open Burners

C836-17R

137,500 BTUH

Standard Oven

1 Front Fired Hot Top

(Right)

2 Open Burners

C0836-17R

97,500 BTUH

Cabinet

1 Front Fired Hot Top

(Right)

2 Open Burners

C0836-17RM

97,500 BTUH

Modular

1 Front Fired Hot Top

(Right)

2 Open Burners

Cuisine Series Heavy Duty Combination Top Ranges

  • Natural Gas and Liquid Propane Available

(Image shows C836-2)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Model

Base

Top

C836-2

160,000 BTUH

Standard Oven

24" Manual Control Griddle

2 Open Burners

C0836-2

120,000 BTUH

Storage Base

24" Manual Control Griddle

2 Open Burners

C0836-2M

120,000 BTUH

Modular

24" Manual Control Griddle

2 Open Burners

C836-3

125,000 BTUH

Standard Oven

24" Manual Control Griddle

12" Hot Top

C0836-3

85,000 BTUH

Storage Base

24" Manual Control Griddle

12" Hot Top

C0836-3M

85,000 BTUH

Modular

24" Manual Control Griddle

12" Hot Top

Cuisine Series Heavy Duty Combination Top Ranges

  • Natural Gas and Liquid Propane Available

(Image shows C836-2)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Model

Base

Top

C0836-2-1

120,000 BTUH

Storage Base

24" Thermostatic Control Griddle

2 Open Burners

C0836-2-1M

120,000 BTUH

Modular

24" Thermostatic Control Griddle

2 Open Burners

C0836-3-1

85,000 BTUH

Storage Base

24" Thermostatic Control Griddle

12" Hot Top

C0836-3-1M

85,000 BTUH

Modular

24" Thermostatic Control Griddle

12" Hot Top

C836-2-1

160,000 BTUH

Standard Oven

24" Thermostatic Control Griddle

2 Open Burners

C0836-2-1

120,000 BTUH

Storage Base

24" Thermostatic Control Griddle

2 Open Burners

C836-3-1

125,000 BTUH

Standard Oven

24" Thermostatic Control Griddle

12" Hot Top

Cuisine Series Heavy Duty Broiler w/ Adjustable Racks

  • Natural Gas and Liquid Propane Available

(Image shows C836-436A)

Range Size: 36"W x 56.5"H x 37.88"D

Model

Base

Top

C836-336A

175,000 BTUH

Standard Oven

36"W Charbroiler w/

Briquettes

C0836-336A

135,000 BTUH

Storage Base

36"W Charbroiler w/

Briquettes

C836-436A

148,000 BTUH

Standard Oven

36"W Charbroiler w/

Cast Iron Radiants

C836-436ARC

148,000 BTUH

Convection Oven

36"W Charbroiler w/

Cast Iron Radiants

C0836-436A

108,000 BTUH

Storage Base

36"W Charbroiler w/

Cast Iron Radiants

C836-336ARC

175,000 BTUH

Convection Oven

36"W Charbroiler w/

Briquettes

Cuisine Series Heavy Duty Combination Top Ranges

  • Natural Gas and Liquid Propane Available

(Image shows C836-1)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Model

Base

Top

C836-4

130,000 BTUH

Standard Oven

18" Manual Control Griddle

2 Open Burners

C0836-4

90,000 BTUH

Storage Base

18" Manual Control Griddle

2 Open Burners

C0836-4M

90,000 BTUH

Modular

18" Manual Control Griddle

2 Open Burners

C836-5

102,000 BTUH

Standard Oven

18" Manual Control Griddle

18" Hot Top

C0836-5

62,500 BTUH

Storage Base

18" Manual Control Griddle

18" Hot Top

C0836-5M

62,500 BTUH

Modular

18" Manual Control Griddle

18" Hot Top

Cuisine Series Heavy Duty Combination Top Ranges

  • Natural Gas and Liquid Propane Available

(Image shows C836-1)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 39.38"D

Burner Rating: 30,000

Model

Base

Top

C836-4-1

130,000 BTUH

Standard Oven

18" Thermostatic Control Griddle

2 Open Burners

C0836-4-1

90,000 BTUH

Storage Base

18" Thermostatic Control Griddle

2 Open Burners

C0836-4-1M

90,000 BTUH

Modular

18" Thermostatic Control Griddle

2 Open Burners

C836-5-1

102,000 BTUH

Standard Oven

18" Thermostatic Control Griddle

18" Hot Top

C0836-5-1

62,500 BTUH

Storage Base

18" Thermostatic Control Griddle

18" Hot Top

C0836-5-1M

62,500 BTUH

Modular

18" Thermostatic Control Griddle

18" Hot Top

Cuisine Series Heavy Duty Combination Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-11)

Range Size: 36"W x 42"H x 39.38"D

Modular Size: 36"W x 10"H x 37.38"D

Model

Base

Top

C836-11

110,000 BTUH

Standard Oven

1 Front Fired Hot Top

1 Even Heat Hot Top (Left)

C0836-11

70,000 BTUH

Cabinet

1 Front Fired Hot Top

1 Even Heat Hot Top (Left)

C0836-11M

70,000 BTUH

Modular

1 Front Fired Hot Top

1 Even Heat Hot Top (Left)

C386-11R

110,000 BTUH

Standard Oven

1 Front Fired Hot Top

1 Even Heat Hot Top (Right)

C0836-11R

70,000 BTUH

Cabinet

1 Front Fired Hot Top

1 Even Heat Hot Top (Right)

C0836-11RM

70,000 BTUH

Modular

1 Front Fired Hot Top

1 Even Heat Hot Top (Right)

48" WIDE HEAVY-DUTY GAS RANGES

Cuisine Series Heavy Duty Broiler w/ Non-Adjustable Racks

  • Natural Gas and Liquid Propane Available

(Image shows C0836-48A)

Range Size: 48"W x 36"H x 37.88"D

Modular Size: 48"W x 19"H x 37.88"D

Model

Base

Top

C0836-48A

144,000 BTUH

Cabinet Base

48" Manual Valve Control Griddle w/

Cast Iron Radiants

C0836-48AM

144,000 BTUH

Modular

48" Manual Valve Control Griddle w/

Cast Iron Radiants

Cuisine Series Heavy Duty Griddle Top Range

  • Natural Gas and Liquid Propane Available

(Image shows C836-48-1 with optional casters)

Range Size: 48"W x 42"H x 39.88"D

Modular Size: 48"W x 10"H x 39.88"D

Model

Base

Top

C836-48

160,000 BTUH

Standard Oven

12" Cabinet

48" Manual Valve Control Griddle

C0836-48

120,000 BTUH

12" and 36" Cabinets

48" Manual Valve Control Griddle

C0836-48M

120,000 BTUH

Modular

48" Manual Valve Control Griddle

C836-48-1

160,000 BTUH

Standard Oven

12" Cabinet

48" Thermostat Control Griddle

C0836-48-1

120,000 BTUH

12" and 36" Cabinets

48" Thermostat Control Griddle

C0836-48-1M

120,000 BTUH

Modular

48" Thermostat Control Griddle


RESTAURANT ELECTRIC RANGES

36" WIDE RESTAURANT ELECTRIC RANGES

S686 Sentry Series Electric Restaurant Range

  • Thermostat Controls

(Image shows S686 with optional casters)

Range Size: 36"W x 47"H x 34.25"D

Model

Base

Top

S686

1 Standard Oven

6 All-Purpose Tubular Element Burners

SS686

1 Standard Oven

6 High-Performance Sealed Element Burners

60" WIDE RESTAURANT ELECTRIC RANGES

S684 Sentry Series Electric Restaurant Range

(Image shows S684)

Range Size: 60"W x 34.25"D x 47"H

Model

Base

Top

S684

2 Standard Ovens

10 All-Purpose Tubular Element Burners

SS684

2 Standard Ovens

10 High-Performance Sealed Element Burners


HEAVY-DUTY ELECTRIC RANGES

18" WIDE HEAVY-DUTY ELECTRIC RANGES

36 E Series Heavy Duty Range Attachment

  • 2 Heat Zones

Range Size: 18"W x 37.38"H x 36"D

Model

Base

Top

36ES15

Storage Base

2 Boiling Plates

36 E Series Heavy Duty Range Attachment

  • 1 Thermostat Control Heat Zone

Range Size: 18"W x 37.38"H x 33.75"D

Model

Base

Top

36ES16

Storage Base

18" All-Purpose Plate

36" WIDE HEAVY-DUTY ELECTRIC RANGES

36 E Series Heavy Duty All Purpose Top Range

  • 3 Thermostat Control Heat Zones

(Image shows 36ER32)

Range Size: 36"W x 37.38"H x 33.75"D

Model

Base

Top

36ER32

Standard Oven

2 All-Purpose Plates

(12" and 24")

36ES32

Storage Base

2 All-Purpose Plates

(12" and 24")

36 E Series Heavy Duty Combination Top Range

  • 2 Thermostat Control Heat Zones

(Image shows 36ER32-3)

Range Size: 36"W x 37.38"H x 33.75"D

Model

Base

Top

36ER32-3

Standard Oven

2 All-Purpose Plates

(12" and 24")

2 12" Open

Tubular Elements

36ES32-3

Storage Base

2 All-Purpose Plates

(12" and 24")

2 12" Open

Tubular Elements

36 E Series Heavy Duty Open Element Top Range

  • Thermostat Controls

(Image shows 36ER33)

Range Size: 36"W x 37.38"H x 33.75"D

Model

Base

Top

36ER33

Standard Oven

6 Coil Elements

36ES33

Storage Base

6 Coil Elements

36 E Series Heavy Duty Boil Section Top Range

  • Thermostat Oven Controls
  • 4 Heat Zones

(Image shows 36ER35)

Range Size: 36"W x 37.38"H x 33.75"D

Model

Base

Top

36ER35

Standard Oven

2 18"W Boiling Plates

36ES35

Storage Base

2 18"W Boiling Plates

36 E Series Heavy Duty All Purpose Top Range

  • Thermostat Oven Controls
  • 2 Heat Zones

(Image shows 36ER36)

Range Size: 36"W x 37.38"H x 33.75"D

Model

Base

Top

36ER36

Standard Oven

2 18" x 24" All-Purpose Plates

36ES36

Storage Base

2 18" x 24" All-Purpose Plates

36 E Series Heavy Duty Griddle Top Range

  • 3 Thermostat Control Heat Zones

(Image shows 36ER38)

Range Size: 36"W x 37.38"H x 33.75"D

Model

Base

Top

36ER38

Standard Oven

36" Thermostat Controlled Griddle

36ES38

Storage Base

36" Thermostat Controlled Griddle

36 E Series Heavy Duty Boil Section Top Range

  • Thermostat Oven Controls
  • 6 Heat Zones

(Image shows 36ER39)

Range Size: 36"W x 37.38"H x 33.75"D

Model

Base

Top

36ER39

Standard Oven

6-Section Boiling Plate

36ES39

Storage Base

6-Section Boiling Plate

Contact Us
1 (800) 555-0666
