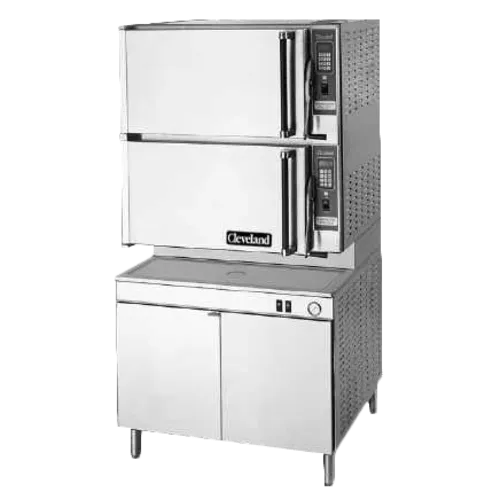

Cleveland Range 36CEM1648 ConvectionPro® XVI Steamer

Cleveland Range 36CEM1648 ConvectionPro® XVI Steamer

36CEM1648
Stock Status
Updating. Please wait...
Free Freight
$42,313.43

Contact us for details

$36,268.65

You will earn 42313 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$779.41
* The above amount may vary depending on the applicant's credit history.
  • Free Start-Up Program: Includes a performance check-out by Factory Authorized Servicer after installation and equipment demonstration by factory trained sales rep.
  • Please see specification sheet for installation clearance requirements
Additional Options and Accessories are Available.
Please call:
1 (800) 555-0666

Cleveland Range 36CEM1648 Specifications

Pan Capacity8 Pans
Steam SourceBoiler
Model type selectionConvection Steamers
TypeConvection Steamers
BoilerYes
BrandCleveland Range
Number of Compartments2
Power TypeElectric
Interior FinishStainless Steel
ControlsAdjustable
HeatElectric
StyleFloor with Boiler Base
Voltage208 Volts
Wattage48 Kilowatts
Width (in)35.43
Height (in)68.92
Depth (in)33.5
Weight1035

Additional Information on Cleveland Range 36CEM1648

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Cleveland Range 36CEM1648 Description

ConvectionPro® XVI Steamer, electric, 2 compartments, 36" cabinet base, (8) 12 x 20 x 2-1/2" pans/compartment, solid state controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, stainless steel exterior finish, 48 kW steam generator with electric steam boiler
ConvectionPro Steamer, convection, electric, 2 compartments, 36" cabinet base, (8) 12 x 20 x 2-1/2" pans/compartment, 48-KW electric-fired steam generator, stainless steel exterior finish
Standard Features:
  • Heavy duty Stainless Steel Base Frame.
  • Modular Cabinet Base with Hinged Door.
  • Separate Main Power Switch for “On/Off”
  • All Controls are serviceable from the front.
  • Compartment Door Steam Shut Off Switch.
  • Standard voltage 208 or 240 volts, 60 Hz, 3 phase.
  • Electric Steam Generator: Automatic Water Fill on start up.
  • Solid State Controls operate water level and safety functions.
  • Automatic Water Level Control System with Low Water Power Cut-off Circuit.
  • Left Hand Door Hinging: Compartment Doors hinged left, controls on the right.
  • Heavy duty, one piece, solid compartment door design with replaceable door gasket.
  • NSF Certified 6˝ Stainless Steel Legs with adjustable flanged feet for a one inch level adjustment.
  • Durable 10 Gauge Stainless Steel Construction: For Compartment Door and Steam Cooking Cavity.
  • Pressureless cooking with forced convection steam, permitting doors to be opened while cooking continues.
  • Instant Steam Standby Mode: Holds generator at steaming temperature. Allows unit to start cooking instantly.
  • Automatic Generator Drain at shutdown: Contains a “Water Jet” Spray Rinse Cleaning Cycle to keep drain clear.
  • Cooking Capacity for up to eight 12˝ x 20˝ x 21 ⁄2˝ deep Cafeteria Pans per compartment, or four 12˝ x 18˝ Buns Pans.
  • Steam generator equipped with High Limit Pressure Safety Switch, 15 psi Safety Valve, and Steam Generator Pressure Gauge.
  • Each compartment is equipped with a 60 minute mechanical timer, separate bypass switch for constant steaming and a cold water condenser for superior cooking results.
  • Secondary Low Water Cut-Off, factory installed (CALE) (Required for AZ. AR. CA. CO. CT. DE. FL. GA. HI. IL. IA. KS. MD. MA. MI. MN. MT. NE. NV. NM. NC. OK. OR. PR. RI. TN. UT. VA. WA. WV., Buffalo, NY, Wash. DC)
  • Exclusive Steam Cooking Distribution System: The exclusive Convection Jets produce a high velocity convection steam without fans. Curved Corner design in cooking compartment distributes heat evenly and is easy to keep clean. Creased bottom enhances drainage. Cold Water Condenser for each compartment maintains a dry steam. Fully insulated cooking compartment for thermal efficiency. Removable Stainless Steel Slide Racks for easy cleaning.
Options & Accessories:
  • Water Filters
  • 12˝ x 18˝ Bun Pans
  • Correctional Packages
  • Boiler Descaling Pump Kit (107142)
  • Voltages other than standard (see back page)
  • Cafeteria pans in depths of 1˝, 2 1⁄2˝, 4˝ and 6˝
  • Electronic Timer with Compensating Load Feature. (ETC)
  • ON/OFF Steam Switch only for compartment controls (MC)
Cleveland’s “Best-in Class” product line offers the industry’s overall best “Standard Warranty Program” featuring:
  • Free Performance Start Up with Water Quality Check
    • Free Water Quality Check included with start up
  • 1-Year Door Gaskets and Adjustments included
    • 3, 5, 6 pan and 10 pan compartment steamers, non-part adjustments
  • 2-Year K-12 School Warranty included
    • 3-Year warranty included with purchase of Filter
  • 2-Year Warranty with Filter Purchase from Cleveland
    • Full 2-years parts and labor coverage
  • 5-Year Prorated for Pressure Boilers and Steam Generators
    • 100% covered for first 2 years with filter purchase

Options for Cleveland Range 36CEM1648

Correctional packages
K-12 warranty
What is included
  • Warranty: 1-year parts & labor warranty, standard
  • Performance start-up: Performance start-up included at customer request after equipment is installed (Free Water Quality Check included) (contact Cleveland Sales Representative for details)
  • Generator warranty: 5 year pro-rated parts warranty on boilers & steam generators
