Description

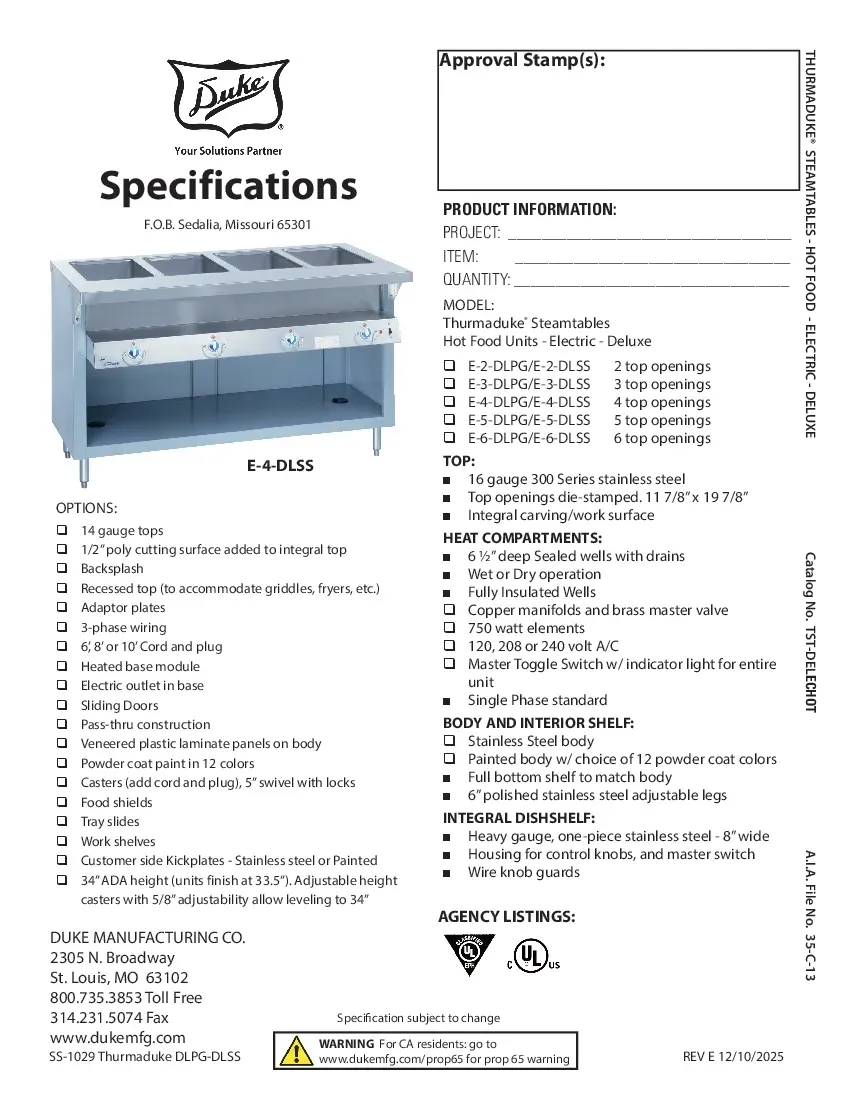

Duke E-4-DLSS Description Thurmaduke™ Steamtable Unit, electric, 60"W x 34"D x 36"H, 16ga stainless steel top, (4) stainless steel sealed wells, drains, copper manifolds, (1) brass valve, thermostat controls, integral stainless steel cutting board, dish shelf, 20ga stainless steel body & undershelf, 6"H stainless steel legs with adjustable feet, cULus, UL EPH Classified NOTE: Electric values & plug configurations change for 3 phase or when adding electric options - Contact Factory for more info)
Options for Duke E-4-DLSS Serving shelves & sneeze guards Cutting board/shelf - customer's side Cutting Board, customer's side, 7"D, 1/2" white poly, 18ga stainless steel shelf, (3) fixed brackets, shelf mounted flush to counter top (No hinged brackets) +$1,386.97
Cutting Board/Shelf, customer's side, 7"D, 18ga stainless steel shelf, (3) fixed brackets, shelf mounted flush to counter top (specify any special height) +$760.39
Cutting Board/Shelf, customer's side, 7"D, 18ga stainless steel shelf, (3) hinged brackets, shelf mounted flush to counter top (specify any special height) +$1,260.59
Cutting Board, customer's side, 10"D, 1/2" white poly, 18ga stainless steel shelf, (3) fixed brackets, shelf mounted flush to counter top (No hinged brackets) +$1,494.23
Cutting Board/Shelf, customer's side, 10"D, 18ga stainless steel shelf, (3) fixed brackets, shelf mounted flush to counter top (No hinged brackets) +$867.65
Cutting Board/Shelf, customer's side, 10"D, 18ga stainless steel shelf, (3) hinged brackets, shelf mounted flush to counter top +$1,367.86
Fabrication, electrical & special body modifications Move cord set to operator's left +$112.57
Push bar, stainless steel handle & brackets, mounted on operator's right end (specify if left end) +$217.71
Bumpers (3" x 3" rubber corners) (per set) +$185.85
Round cutout with raw edge, in counter top, body panel or a shelf (specify cutout diameter & location) +$89.21
Round cutout with grommet, in counter top, body panel or a shelf (specify cutout diameter & location) +$89.21
Rectangular cutout with raw edge, must be 12" or less, in counter top, body panel or a shelf (specify cutout size & location) +$89.21
Rectangular cutout with reinforced edges, in counter top, body panel or a shelf, counter top max. right to left is 4" less than unit length (specify cutout size & location) +$218.77
Rectangular cutout with reinforced turn down edges & corners welded closed, in counter top, body panel or a shelf, counter top max. right to left is 4" less than unit length (specify cutout size & location) +$678.62
Electric outlet, mounted in base, with galvanized junction box, duplex or single receptacle & stainless steel cover, not wired +$209.21
Electric outlet, mounted in base, with galvanized junction box, duplex or single receptacle & stainless steel cover, wired to existing power source +$331.34
Omission of shelves, open base +$973.85
Special height legs (per leg) (shorter height voids NSF approval) +$86.02
Special Height Body, per unit
For special width body…per unit +$426.92
Body latches for holding portable units together, pair +$166.73
Filler panel for special length, mounted on end, enclosed both sides & end, includes longer counter top, longer tray slide if needed, no other equipment in filler +$426.92
Individual brass valves +$624.46
Pedestal-type duplex outlet, mounted, not wired +$478.96
Pedestal-type duplex outlet, mounted, wired to existing power source +$649.94
Tier of stainless steel angle slides in base - to hold (4) trays, pans etc. +$888.89
Modified base - to accept roll warmer (warmer by other manufacturers) not wired...per roll warmer +$783.76
For pass-thru construction +$426.92
No Drains, in lieu of standard drains
Exposed element hot food wells with stainless spillage pan, in lieu of standard wells in a (4) well unit +$709.42
Locate drains on left +$112.57
Doors - customer's side Sliding doors, stainless steel, for customer's side of hot food units with (4) openings (not available on gas models), UL, UL EPH Classified +$2,348.08
Sliding doors, customer's side, with lock and keys, stainless steel, and recessed stainless steel pull (not available on gas models) +$2,445.79
Doors - operator's side Sliding doors, stainless steel, for operator's side of hot food units with (4) openings (not available on gas models), UL, UL EPH Classified +$1,078.99
Sliding doors, operator's side, with lock and keys, stainless steel, and recessed stainless steel pull (not available on gas models) +$1,176.70
Tray slide - customer's side Tray Slide on fixed brackets, (3) bar tubular, 1" dia. stainless, end caps, mounted 34"H (specify any other height), NSF +$732.78
Tray Slide, customer's side, (3) tubular Ø 1" bars, stainless steel, on hinged brackets, end caps, mounted 34"H (specify any other height) +$792.25
Voltage options 120v/60/1-ph, 3000 watts, 25.0 amps
208v/60/1-ph, 3000 watts, 14.4 amps
208v/60/3-ph, 3000 watts, 8.4 amps +$281.43
240v/60/1-ph, 3000 watts, 12.5 amps
240v/60/3-ph, 3000 watts, 7.3 amps +$281.43
What is included NOTE:: Unit is designed to be used as a stand alone unit, not part of a serving systems line due to the body depth differences Close Description Duke DukeE-4-DLSSElectric Hot Food Serving Counterwith Controls,
