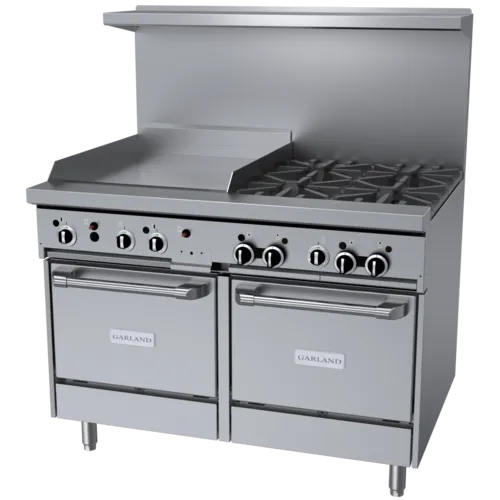

Garland US Range Garland/US Range GF48-4G24LL Restaurant Gas Range, 48" W with 4 (2) Space Saver Ovens (1) 24" Griddle and Manual Controls, - 204,000 BTU

Standard Features:

• Stainless steel front and sides
• Large easy-to-use control knobs
• Flame failure protection: all burners
• 6" (152mm) adj. stainless steel legs
• Stainless steel 5" (127mm) plate rail
• Large 27" (686mm) work top surface
• Stainless steel low profile back guard
• Gas regulator, 1" NPT rear gas connection
• 12" (305mm) section stamped drip trays w/ dimpled bottom
• Spark ignition on all concealed burners (open top burners manual ignition)

Standard on Applicable Models:

• 4-1/4" (108mm) wide grease trough
• Strong, keep-cool oven door handle
• Ergonomic split cast iron top ring grates
• Two space saver ovens w/porcelain interior
• 32,000 Btuh/ 9.38 kW cast iron "H" style oven burner
• Snap action modulating oven thermostat low to 500° F
• Nickel plated oven rack and 3-position removable oven rack guide
• 26,000 Btuh/ 7.61 kW 2 piece cast iron Starfire- Pro open top burner
• 18,000 Btuh/5.27 kW cast iron "H" style griddle burner per 12"(305mm) width of griddle
• Electric spark ignition on all burners, requiring single phase 115V 60Hz or 240V 50Hz (specify) prefix GFE models
• 5/8" (15mm) thick steel griddle plate with snap action modulating griddle control 175° to 425° F ( 79° to 218°C), 23” (584mm) working depth surface, on right; optional on left

Optional Features:

• Additional oven racks
• Flanged deck mount legs
• Celsius temperature dials
• Stainless steel back panels for backguards or range
• 6” (152mm) leveling swivel casters (4), w/front locking
• Stainless steel backguard, w/removable stainless shelf
• Hot top 12" (305mm) plate in lieu of two open burners, manual valve controlled w/ 18,000 Btuh/5.27 kW cast iron "H" burner standard on left side

Specifications:
Gas restaurant series range with two space saver ovens. 47-1/4" (1200mm) wide and 27" (686mm) deep work top surfaces. Total flame failure protection for all burners. Stainless steel front, sides and 5” (127mm) wide front rail. 6" (152mm) legs with adjustable feet. Eight Starfire-Pro 2 piece, 26.000 Btuh/7.61 kW, cast open burners set in split cast iron ergonomic grates. Griddle or optional hot top with cast iron "H" style burners. Porcelain oven interior with ribbed oven bottom and door. "Keep cool" oven door handle. Heavy cast iron "H" 32,000 Btuh/ 9.38kW (natural gas) oven burner controlled by even bake, fast recovery snap action modulating oven thermostat. Electrical Supply: GFE models with 115V, 60 Hz, 1 phase, 0.1 amps; 6’ (1829mm) power cord with NEMA 5-15P plug. Power cord not supplied with 240V, 50 Hz, 1 phase 0.05 amps models. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
