Glastender IDU-18X54 Ice Display Unit
IDU-18X54

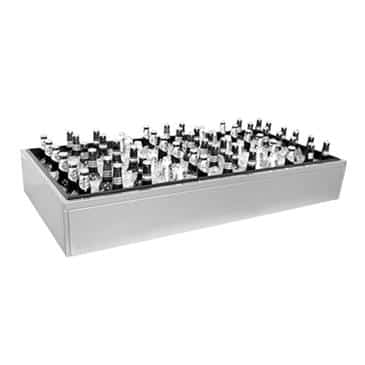

Photo of the Glastender IDU-18X54 Ice Display Unit
| Specs | |
|---|---|
| Brand | Glastender |
| Width (in) | 54.00 |
| Height (in) | 7.00 |
| Depth (in) | 18.00 |
| Weight | 82.00 |
Additional Information
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Description

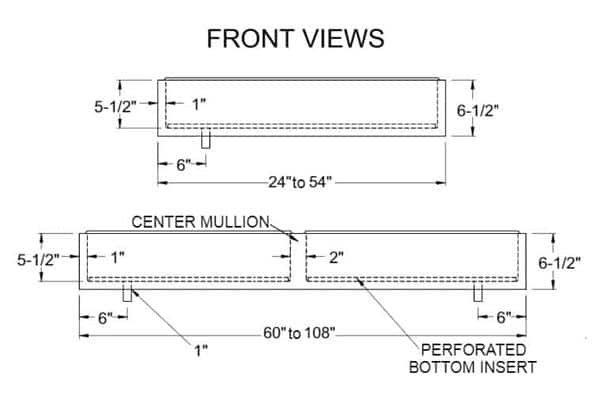

Ice Display Unit, for back bar, 54"W x 18"D x 7"H, bottled beverage display to replace the entire top or a portion of the top of back bar units, 6" deep liner, ABS breaker strip, stainless steel construction, ETL-Sanitation Standard Features:
- Foamed-in-place insulation
- All stainless steel construction
- 6-1/2″ high with 5-1/2″ deep liner
- 1/2″ tall perforated stainless steel bottom inserts
- PVC “Breaker Strip” around ice bins acts as thermal barrier to prevent heat transfer
- Available as factory installed on top of a cooler cabinet or as field installed on a countertop
- NOTE: Ice display units merchandise bottled beverages and may be factory mounted to the top of Glastender Back Bar, Narrow Door, Low Profile, Pass Thru, and Front Venting Coolers and Dry Storage Cabinets. Ice display unit may also be field installed to an existing countertop.
Specifications
- Materials
- All stainless steel construction
- Drains
- 1″ tailpiece - exits through the bottom.
- For factory mounted units on self-contained coolers the plumbing is ran through the cooler and stubs out beneath the compressor compartment. Field connections must be made at that point.
- For factory mounted units on remote coolers or dry storage cabinets, the factory supplies a 1″ drain line and two elbows for running the drain line out of the cabinet. If the desired location for the drain line exit is specified, it will be hooked-up at the factory. Field connections must be made at that point.
