Description

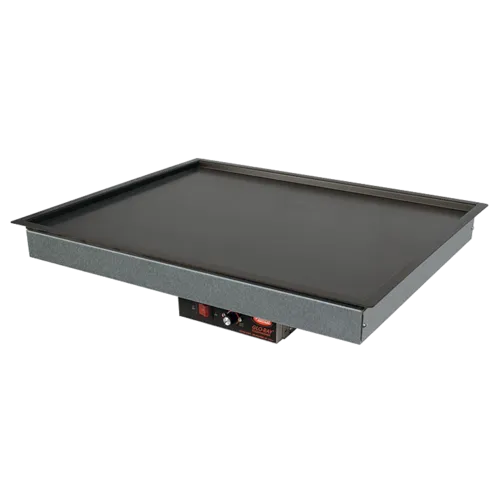

Hatco GRSB-24-O Description Glo-Ray® Drop In Heated Shelf with Recessed Top, 25-1/2" x 31-1/2", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, CE, cUL, UL, UL EPH Classified, CSAGlo-Ray® Drop In Heated Shelf with Recessed Top, 25-1/2" x 31-1/2", 1/2" deep recessed surface area, hardcoat aluminum top, control thermostat, illuminated on/off switch & mounting bracket, NSF, cUL, UL, UL EPH Classified, ANSI/NSF 4, CSA
Standard Features:
Let Hatco add heat to your serving surface with the Glo-Ray® Rectangular Built-In Heated Shelf with Recessed Top. This .5" (13 mm) recessed top foodwarmer has a hardcoated aluminum surface and blanket-type element for uniform heat to extend your food holding time. Fiberglass insulation keeps heat at the holding surface while a built-in adjustable thermostat controls surface temperature.
Thermostatically-controlled heated base
Uniform heat distribution with hardcoated aluminum surface
36" (914 mm) flexible conduit channels power lines from the shelf to a control box
Standard controller includes, infinite switch, lighted rocker switch and mounting brackets.
The Built-in Heated Shelf has a .75" (19 mm) flanged edge that allows the unit to fit into a countertop opening
Recommended for use in metallic counters. For other surfaces, verify that the material is suitable for temperature up to 200°F (93°C)
GRSB models available in widths from 24" to 72" (610-1829 mm) and depths of 15.5", 19.5" or 30" (394, 495 or 762 mm) and blanket-type element
Note: Models with flush mount recessed electronic control box are not CE approved. Non-standard colors are non-returnable. Hatco is not responsible for counter damage caused by heat from the warmer
Options: (Available at time of purchase only)
Designer Colors for Flush Mount Control Bezel Box - Stainless Steel is standard color
Black
Navy Blue
Warm Red
Gray Granite
White Granite
Hunter Green
Antique Copper
Conduit in lieu of standard 3' (914 mm) (Flush Mount ITC Control Box only)
6' (1829 mm) conduit
10' (3048 mm) conduit
Flush Mount Electronic Control Box with Lighted Power Switch with cord and plug
Flush Mount Thermostatic Control Box with Lighted Power Switch with cord and plug
Options for Hatco GRSB-24-O Sneezeguard bundle Specify Sneeze Guard choice below
EP5 NSF Sneeze Guard for stationary full-service applications, 29.5"Wx25"Hx18"D center of post to center of post. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.25" (6 mm) Thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Two 18" (457 mm) Deep glass End Panels. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$1,239.00
ORBIT100 NSF Sneeze Guard for stationary full-service applications, 29.5"Wx25"Hx18"D center of post to center of post. Patented 15º increment rotating Face Panel with circular openings for optimum
Height adjustment. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.375" (10 mm) thick tempered glass construction with
0.75" (19 mm) radius corners and flat polished edges. Two 18" (457 mm) Deep glass End Panels. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops +$2,447.00
EP11 NSF Sneeze Guard for stationary full-service applications, 29.5"Wx17.25"Hx18"D center of post to center of post. Features a face panel, a top shelf and two end panels. Standard 18" (457 mm) deep end panels meet NSF standards. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.25" (6 mm) Thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops +$1,092.00
EP12 NSF Sneeze Guard for stationary full-service applications, 29.5"Wx17.25"Hx18"D center of post to center of post. Features a face panel, a top shelf and two end panels. Standard 18" (457 mm) deep end panels meet NSF standards. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.25" (6 mm) Thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$1,386.00
ORBIT900 NSF Sneeze Guard for stationary full or self-service applications, 29.5"Wx18.75"Hx14.25"D center of post to center of post. Features an adjustable face panel, a top shelf and two end panels. Standard 27" (457 mm) deep end panels can be adjusted depending on service. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.375" (10 mm) thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$1,780.00
ES29 NSF Sneezeguard for stationary self-service applications, 29.5"Wx23"Hx36"D center of post to center of post. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.375" (10 mm) thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Glass components consist of a Face Panel, two End Panels and a Top Shelf. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$2,206.00
B950 Adjustable Self-Serve Sneeze Guard, 29.5"Wx9-19"Hx18"D center of post to center of post. Patented 15º increment rotating Face Panel with clearances of 9-19" (229-483 mm) when glass is at a 45º angle. 1" (25 mm) SAE 304 brushed stainless steel Posts have 1.5" (38 mm) Base Tubes. Mounting Post Height is adjustable up to 23" (583 mm) – based on pivoting Face and adjustable Post Bracket. Durable 0.375" (10 mm) thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges for a clean look – stand alone. Stainless steel finish Flange Cup Base is 1.9" (48 mm) in Dia.Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$1,478.00
ES82 NSF Sneezeguard for stationary double-sided self-service applications, 29.5"Wx23"Hx36"D center of post to center of post. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.375" (10 mm) Thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Comes with Two Face Panels, Top Shelf and two glass End Panels. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$2,610.00
ES90 NSF Sneezeguard for stationary single-sided self-service applications, 29.5"Wx22.625"Hx16.25"D center of post to center of post. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.375” (10 mm) Thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Includes adjustable glass Face Panels, glass Top Shelf and two End Panels. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$2,250.00
ES92 NSF Sneezeguard for stationary double-sided self-service applications, 29.5"Wx22.625"Hx36"D center of post to center of post. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. 2" (50 mm) Diameter stainless steel finish Flanges with unique tight-fitting Flange Covers that hide mounting screws and maximize cleanability. Durable 0.375" (10 mm) Thick tempered glass construction with 0.75" (19 mm) radius corners and flat polished edges. Includes two adjustable Face Panels, glass Top Shelf and two glass End Panels. Mounts to stainless steel, natural and engineered solid stone surfaces and laminate countertops. +$3,115.00
EP950 sneezeguard for portable and adjustable self-service applications, 35.5" overall width x 10-24"H. Durable pivoting, curved, acrylic, lens Face with polished edges and 0.75 (19 mm) radius corners is 0.25" (6.4 mm) Thick and 13.1875" (335 mm) Deep. Pivot clearances of adjustable curved acrylic lens Face:
- To front: 2" to 22" (51 to 59 mm) from counter
- To back: 13" to 24" (330 to 610 mm) from counter. 1" (25 mm) 304 stainless steel Posts with 1.5" (38 mm) Base Tube
have adjustable Height from 13" to 24" (330 to 610 mm). Stainless steel finish mounting feet are 2" Wide x 14" Deep
(51 x 356 mm) with retractable Stabilizer Tabs, include two
mounting points for Posts. +$533.00
ORBIT720 sneezeguard for portable and adjustable self-service applications, 29.5"Wx23"H center of post to center of post. Patented 15º increment rotating Face Panel with clearances of:
- To front: 2" to 22" (51 to 59 mm) from counter
- To back: 13" to 24" (330 to 610 mm) from counter. Mounting Post Height is adjustable up to 23" (583 mm) – based
on pivoting Face and adjustable Post Bracket. Stylish 1" (25 mm) Diameter SAE 304 brushed stainless steel Posts. Durable 0.375" (10 mm) thick tempered glass construction with
0.75" (19 mm) radius corners and flat polished edges. Stainless steel finish Base Feeet are 1.5" Wide x 14" Deep
(38 x 356 mm). +$490.00
ALLIN1 portable sneezeguard for flexible and portable self-service applications, 27.5"W acrylic face panel x 0-30"H. Patented, durable and collapsible 0.25" (6.4 mm) Thick acrylic Face Panel with polished edges, 0.75 (19 mm) radius corners and is 14" (335 mm) High. Patented, adjustable push-button hinges with 15º incremental locking, allow the acrylic Face Panel to meet almost any configuration. Three attached, pivoting 0.5" (13 mm) Thick 10" High (254 mm) machined brushed aluminum Leg segments. +$900.00
What is included Warranty: 1-Yr Warranty on Blanket Heating Elements against burnout, standard Countertop recommendation: NOTE: Recommended for use in metallic countertop, verify that the material is suitable for temperatures up to 200 degree F Factory note: NOTE: Includes 24/7 parts & service assistance, call 414-671-6350 Voltages 120v/60/1-ph, 790 watts, 6.6 amps, NEMA 5-15P (Domestic voltage), standard
220v/50/1-ph, 722 watts, 3.3 amps, CEE 7/7 Schuko (Export voltage) +$10.00
240v/50/1-ph, 860 watts, 3.4 amps, BS-1363 (Export voltage) +$10.00
Contact factory for other voltages
Close Description Certifications
Hatco GRSB-24-O Certifications NSF This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Close Certifications Hatco Hatco GRSB-24-O Glo-Ray® 25.5"W x 31.5"D Heated Shelf Food Warmer / 790 Watts
