Nor-Lake KLB8766-C Walk-In Cooler & Top Mounted Compressor

SKU#: KLB8766-C
Free Freight?
Quick Ship
$12,978.53

for more information

$8,750.50
or enjoy small payments $188.05/mo.
Lease Payment Calculate
Product Protection
Product Protection
Starting at
Reward Points
Reward Points
You will earn 12979
  • 2023 model, meets the newest EPA and DOE codes.

Nor-Lake KLB8766-C Specifications

Nominal Depth6 Feet
Nominal Width6 Feet
BrandNor-Lake
Refrigerant TypeR-290
Refrigeration MountedTop
ShippingStandard Shipping
CategoryWalk In Cooler, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloor Included
UsageIndoor
Voltage115 Volts
Width (in)72
Height (in)103
Depth (in)72
Weight1181.00

Nor-Lake KLB8766-C Description

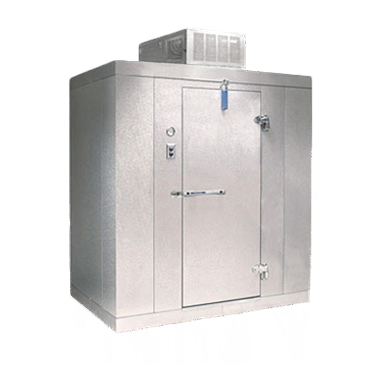

Kold Locker™, Indoor +35°F Cooler, 6' x 6' x 8'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, CPB050PC-S-0, R290 Capsule Pak Refrigeration, 115v/60/1-ph

Storing refrigerated goods in bulk is easiest done with an efficient and reliable walk-in cooler like the Nor-Lake KLB8766-C 6' x 6' x 8'-7" H Kold Locker.

This cooler is made up of 4” panels making it easy to assemble while providing an R-value of 25. Each panel is made up of 26 gauge steel with an embossed stucco coating on either side for corrosion resistance. The interior of the panel is made up of foamed-in-place polyurethane insulation. Assembling the walk-in is simple with each panel having a male and female side that fit together tightly and secured by foamed-in-place cam locking fasteners. A continuous panel gasket without cuts or breaks wraps around the outer perimeter for a superior seal. The sturdy floor panels feature a similar construction to the wall panels but have a smooth aluminum surface instead of steel to provide rust resistance. These floor panels can take a uniform load of up to 800 lbs per square foot. Floor and ceiling panels have foamed-in-place edge caps that will keep them in place for the life of the walk-in unit.

This walk-in unit comes standard with a 26” wide door featuring a stepped profile that acts as a barrier against airflow. Two cam-lift hinges are included with the door and can be installed on the right or left. These hinges are field-adjustable to make sure the door swings freely while providing an airtight seal. A spring-assisted door closer is included to keep the door from being left ajar. The door is pre-hung in a 4-foot wide panel and features a magnetic stainless steel trim, digital thermometer, replaceable perimeter heating wire, and vapor proof LED light fixture actuated by a switch with external indicator light. Everything inside the walk-in is kept secure by an NL 9800 deadbolt handle with an independent key/padlock feature. To keep workers safe, a safety release inside the door panel makes sure no-one gets locked inside.

The temperature inside this walk-in is kept between 35°F and 38°F by the ceiling-mounted RCPB050JC-S-0-EV Capsule Pak Refrigeration System that produces 4060 BTU/hr of cooling potential. The Enviro-Control™ electronic controller system sets the temperature inside the walk-in and also sets the automatic defrost timer. To remove the need for a drain line, an automatic condensate vaporizer is shipped loose with the unit and needs to be field wired.

Nor-Lake KLB8766-C Walk-In Cooler & Top Mounted Compressor

Kold Locker *Commercial Indoor Walk-In Coolers*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLB8766-C

Door width
Celsius thermometer, lights & trim
Door ramp & non-skid strips
Flat freight program
Lift gate delivery
NOTE:
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
