Pitco SELV14TC-2/FD (2) 15 lb. Fry Tanks Electric Floor Fryer with Computer Controls and Solstice Filter Drawer System, 208 Volts
Calculate
Pitco SELV14TC-2/FD Specifications
| Number of Fry Pots | 2 |
|---|---|
| Control Type | Computer |
| Burner Style | Grates |
| Plug Type | NEMA 15-60PВ |
| Filtration System | Solstice Filter Drawer System |
| Cabinet | Stainless Steel |
| Brand | Pitco Frialator |
| Certifications | CE |
| Capacity | (2) 15 lb. Frypots |
| Heat | Electric |
| Voltage | 208 Volts |
| Wattage | 34.0 Kilowatts |
| Width (in) | 31.25 |
| Height (in) | 45.75 |
| Depth (in) | 30 |
Additional Information on Pitco SELV14TC-2/FD
pitco-frialator-selv14tc-2-fd.specsheet.pdf
middleby-financial-flyer.pdf
installation-operation.pdf
pitco-selv14tc-2-fd.specsheet.pdf
warranty-sheet.pdf
brochure.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Pitco SELV14TC-2/FD Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
ETL
The ETL Mark is proof of product compliance to North American safety standards.
ETL-Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
Pitco SELV14TC-2/FD Description

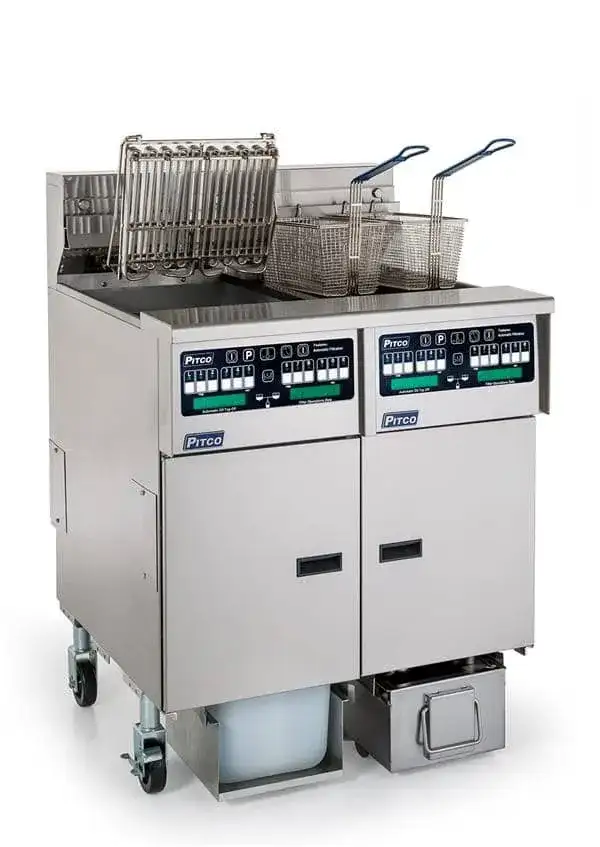

The Pitco Frialator SELV14TC-2/FD Solstice Reduced Oil Volume Fryer System is an electrically heated dual fryer setup that has been developed over the years to be an extremely reliable unit that many commercial kitchens rely on every day. This Electric Multi-Battery Fryer has one fryer with twin 6.3” x 14.8” fry tanks and the other has a full-size 13.5” x 14.8” fry tank. In total this fryer configuration holds 45 of oil.
To make sure menu items are cooked consistently, this unit comes with the Intellifry Computer. This controller can be configured with 12 cooking modes making it extremely simple to operate, even with unskilled labor. A High-Temperature safety limit switch and drain valve interlock make sure that kitchen staff is kept safe.
The quality of the frying oil is maintained by the Solstice filtration system allowing the oil to be used for longer which cuts down on operational costs. This filtration system uses a stainless steel drawer beneath one of the fryers to hold a 10” x 20-½” filter envelope that removes debris. A ⅓ HP filter motor moves oil at 4.5 GPM to make filtration cycles quick and convenient. To eliminate the guesswork, the filtration system has a FILTER SOON feature that monitors the cooking activity of each fry tank.
To quickly top off fry tanks this fryer system has a simple push-button system. Oil is held in a Jug In Box (JIB) oil reservoir beneath one of the fryers that holds 35 lbs of oil. That is almost as much oil as one of the fryers holds in one go, this keeps workers from needing to carry large jugs of oil through a busy commercial kitchen just to top off a fryer.
With stainless steel construction on this unit’s door, sides, tank, and front it’s easy to maintain and clean. Heat is provided by immersion-type heating elements with a high-temperature alloy sheath and features mercury-free contactors. Each fryer uses 17 kW/hr electrical power.
Standard Features:
- Intellifry Computer, 12 products.
- Mercury-free heating contractors.
- Tank - Stainless Steel Construction.
- Cabinet - stainless steel front, door, & sides.
- 9” (22.9 cm) adjustable legs for leveling fryer.
- 1-1/4” (3.2cm) full port drain valve for fast draining.
- Easy lift out immersion elements for easy clean up.
- Push button frypot oil replenishment system. 35 Lb JIB holder1 and low JIB indicator.
- Cooks like a 50 lb fryer with just 30 lbs of oil. Uses standard baskets. Provides full 4” cook depth.
- FILTER SOON production monitor, tracks cooking activity per frypot, and indicates when filtration is needed.
- 4.5 gpm (17.0 LPM) filter pump.
- Filter pan lid is self-storing and out of the way.
- Filtered oil return fitting assists cleaning frypot bottom.
- Filter pan is stainless steel. Rear wheels ease handling.
- Large, 10.0” x 20.5” filter envelope for fast filtering all day.
- Simple two step filtration process makes filtering easy and fast. Under 5 minutes in most circumstances.
- Extra large 3” (7.6 cm) drain lines with unique curved design drain spout virtually eliminates splashing. Spout swivels for ease of oil disposal.
- 1- Fryer crumb scoop
- 1- Filter shovel scoop
- 1- Drain clean out rod
- 1- Fryer cleaning brush
- X- twin size fry baskets (2 / frypot)
- 1- 10.0” x 20.5” Filter media starter pack
- X -Removable basket hangers (1 / frypot)
- Tank covers
- Automatic frypot oil level control system
- Computer controlled auto filtration system
- Work shelves, Consult factory for availability
- Assorted basket configurations, consult factory
- Automatic Basket Lifts, P6072145 Baskets Only
- BNB Dump Station, see BNB spec sheet for details
- 9” (22.8 cm) adjustable casters ease moving equipment for cleaning
- 6’ (183 cm) NEMA 15-60P cordset (14 KW and 17KW 208V &240V 3 phase only). 1 per fryer.
- Filter System Options: Paperless filter, Frypot flush hose and Waste Oil Management hook up.
- (Requires 2 or more fryers in a system for internal JIB storage. Assumes: Oil to be filtered is >180°F, that the filter media is not excessively covered with sediment, and is changed at recommended intervals.)
Pitco reduced oil volume/high output frying systems are designed and engineered for operators who need to reduce operating costs and maintain high production. Operators benefit immediately with a 40% reduction in oil on the first fill up, and at every oil change after that. Time between oil changes is significantly extended due to the low initial fill volume. As with all “low oil” fryers, oil filtration occasionally during operation is a key to maximizing oil life to the greatest degree possible. The FILTER SOON feature is production based and takes the guesswork out of when to filter, and it is easy to customize to your menu. Proven PITCO Solstice filter system is fast and simple to use. Whenever business levels permit, filtering and reheating can be accomplished in under 5 minutes*. A fast and easy push button frypot top off feature reduces the need for staff to carry heavy jugs through the kitchen. The top off feature integrates a typical 35 lb. oil JIB (Jug In Box) as an on board fresh oil supply1. A “jug low” warning indicator, and easy JIB changes are user friendly features. Add auto filtration option for additional operational benefits.
