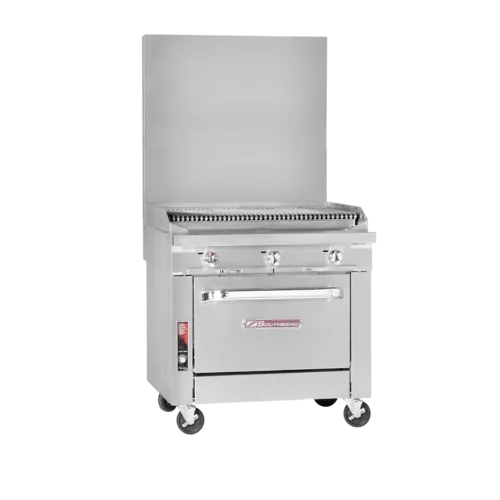

Southbend P16N-C Platinum Heavy Duty Range

Southbend P16N-C Platinum Heavy Duty Range
Free Freight
Price $3,201

You will earn 2,600 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Request a Quote

FINANCEFOR $65.21/mo.

Width (in)16.00
Height (in)13.50
Depth (in)37.50
You May Also Need
Southbend 30048SB Freezer Base
Southbend 30060SB Freezer Base
Southbend 30064SB Freezer Base
Southbend 30072SB Freezer Base
Southbend 30084SB Freezer Base
Southbend 30096SB Freezer Base
Southbend 30108SB Freezer Base
Southbend 30120SB Freezer Base
Southbend PL24 Modular Unit Stand
Southbend PL32 Modular Unit Stand
Southbend PL36 Modular Unit Stand
Southbend PL60 Modular Unit Stand
Southbend PL64 Modular Unit Stand
Southbend PL72 Modular Unit Stand

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Platinum Heavy Duty Range, gas, 16", modular, charbroiler, cast iron grates, stainless steel radiants, manual controls, stainless steel front, sides, rear & exterior bottom, 40,000 BTU, CSA, NSF

Standard Features:
  • 9-1/4" deep front rail
  • Removable drippings tray
  • Stainless steel burner radiants
  • Free battery-design assistance
  • 5" high stainless steel flue riser
  • Fully insulated lining and burner box
  • 600°F even surface temperature on high setting
  • Stainless steel front, sides, rear and exterior bottom
  • 1-1/4" front gas manifold and 1" rear gas connection
  • Two 20,000 BTU NAT (18,000 BTU LP) burners with one high/low control knob
  • Removable cast iron grates with adjustable front-to-back slope that flip over for either 1/8" or 1/4" grid width
  • 16" wide sectional range with full-width charbroiler available with a cabinet base or as a modular unit (for mounting on countertop, refrigerated or freezer base)
Standard Features of Cabinet-Base Model
  • Stainless steel cabinet base with a removable door that can hinge on the right or the left.
Options & Accessories
  • Plated fish grids
  • 24" or 36" high flue riser
  • External pressure regulator
  • Casters (front two casters lock)
  • Removable shelf inside cabinet
  • Extra-deep rear-extending flue riser
  • Open-frame base with casters for battery
  • Cable restraint kit (to restrict movement when on casters)
  • Front rail options:
    • Cutouts in front rail for sauce pans
    • 7-1/4" deep front rail (to match old style sectional)
    • Square belly bar mounted on 7-1/4" deep front rail
Standard Construction Specifications
Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel. Range: 16"-wide front-manifold sectional range with 40,000 BTU NAT (36,000 BTU LP) full-width charbroiler with removable cast iron grates and operating surface temperature of up to 600°F (315°C). Front Rail: 9-1/4" deep front rail. Flue Riser: 5" high stainless steel flue riser. Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold). Legs: 6" stainless steel adjustable legs standard. Cabinet Base: Stainless steel cabinet base with a removable door that can hinge on the right or the left.
Continuous front rail & belly bar
Charbroiler options
Range depth
Prison options
Gas types
Factory note
Stainless steel options
Standard warranty
Extended warranty
Mounting options
