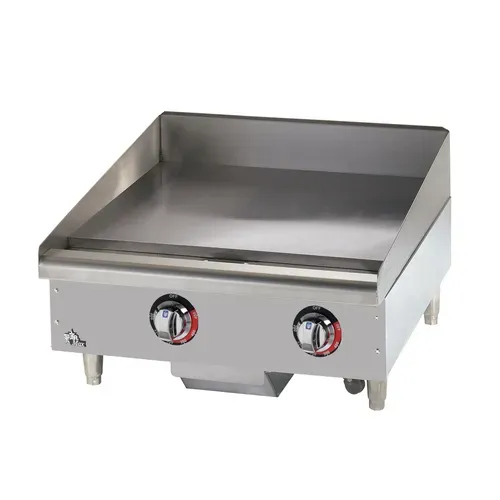

Star 524TGF Star-Max® 24'' Countertop Electric Griddle with Thermostatic Controls, 208-240 Volts
SKU#: 524TGF
1/3
Calculate
Star 524TGF Specifications
| Installation Type | Countertop |
|---|---|
| Construction | Stainless and Aluminized Steel |
| Series | Star-Max® |
| With Griddle | Yes |
| Brand | Star |
| Made in | USA |
| Number of Burners | 2 |
| Certifications | cULus |
| Power Type | Electric |
| Control Type | Thermostatic |
| Controls | Thermostatic |
| Heat | Electric |
| Temperature Range | 150 - 450 Degrees F |
| Usage | Standard Duty |
| Voltage | 208-240 Volts |
| Wattage | 6-8 Kilowatts |
| Width (in) | 24 |
| Height (in) | 15.5 |
| Depth (in) | 27.88 |
| Weight | 175.00 |
Additional Information on Star 524TGF
warranty.pdf
installation-and-operation.pdf
sta0343c.pdf
middleby-financial-flyer.pdf
warranty-sheet.pdf
star-524tgf.specsheet.pdf
installation-operation.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Star 524TGF Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Star 524TGF Description
Star-Max® Heavy Duty Commercial Griddle, electric, countertop, 24" W x 20-3/4" D cooking surface, 1" thick polished steel griddle plate, 150°-450°F snap-action thermostat and 4000 watt element every 12", welded steel frame with stainless steel top and front, splash guard & grease trough, aluminized steel sides, chrome metal knobs, grease drawer, 4" steel legs, cULus, UL EPH Classified, CSA, Made in USA
Standard Features:
- Heavy-duty 4” legs
- Stainless steel top, pan and front
- Available in 15”, 24”, 36” and 48” widths
- A 4000 watt element every 12” of cooking surface
- Large 4-1/2 quart stainless steel grease drawer is standard
- Heavy-duty metal knobs look great and are designed to last
- Highly polished 1” thick polished steel or chrome plate for superior heat distribution
- Spatula wide 3-1/4” grease trough, grease chute and 4-1/2” high tapered splash guard for easy clean up
- Cool-to-the-touch countertop griddles with stainless steel bull nose front provides knob protection and comfortable work zone
- Heavy-duty all-welded countertop range body construction with stainless steel front, bull nose and 4-1/2” high tapered splash guard
- Snap-action thermostat inserted into the griddle plate 3/16” from the cooking surface, adjusts from 150° to 450°F providing quick response to surface temperature change
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.
Options & Accessories
- Equipment Stands
Videos
NOTE! This is a general product line video and does not necessarily reflect the listed model.
Star 524TGF Accessories
