Description

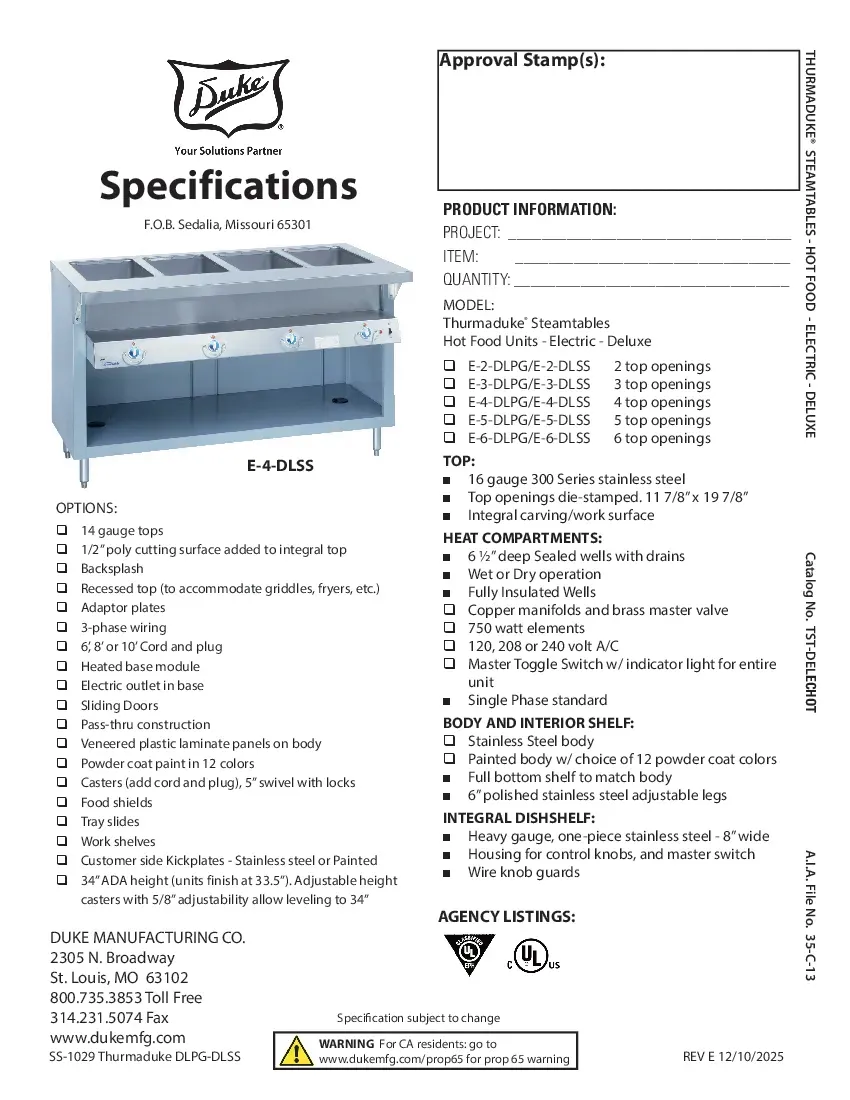

Duke E-3-DLPG Description Thurmaduke™ Steamtable Unit, electric, 46"W x 34"D x 36"H, 16ga stainless steel top, (3) stainless steel sealed wells, drains, copper manifolds, (1) brass valve, thermostat controls, integral stainless steel cutting board, dish shelf, 20ga paint grip steel body & undershelf, 6"H stainless steel legs with adjustable feet, cULus, UL EPH Classified NOTE: Electric values & plug configurations change for 3 phase or when adding electric options - Contact Factory for more info)
Options for Duke E-3-DLPG Serving shelves & sneeze guards Fabrication, electrical & special body modifications Move cord set to operator's left +$91.80
Push bar, stainless steel handle & brackets, mounted on operator's right end (specify if left end) +$179.10
Bumpers (3" x 3" rubber corners) (per set) +$152.10
Round cutout with raw edge, in counter top, body panel or a shelf (specify cutout diameter & location) +$72.90
Round cutout with grommet, in counter top, body panel or a shelf (specify cutout diameter & location) +$72.90
Rectangular cutout with raw edge, must be 12" or less, in counter top, body panel or a shelf (specify cutout size & location) +$72.90
Rectangular cutout with reinforced edges, in counter top, body panel or a shelf, counter top max. right to left is 4" less than unit length (specify cutout size & location) +$180.00
Rectangular cutout with reinforced turn down edges & corners welded closed, in counter top, body panel or a shelf, counter top max. right to left is 4" less than unit length (specify cutout size & location) +$558.00
Electric outlet, mounted in base, with galvanized junction box, duplex or single receptacle & stainless steel cover, not wired +$171.90
Electric outlet, mounted in base, with galvanized junction box, duplex or single receptacle & stainless steel cover, wired to existing power source +$271.80
Omission of shelves, open base +$801.00
Special height legs (per leg) (shorter height voids NSF approval) +$70.20
Special Height Body, per unit
For special width body…per unit +$351.00
Body latches for holding portable units together, pair +$136.80
Filler panel for special length, mounted on end, enclosed both sides & end, includes longer counter top, longer tray slide if needed, no other equipment in filler +$351.00
Individual brass valves +$383.40
Pedestal-type duplex outlet, mounted, not wired +$393.30
Pedestal-type duplex outlet, mounted, wired to existing power source +$534.60
Tier of stainless steel angle slides in base - to hold (4) trays, pans etc. +$730.80
Modified base - to accept roll warmer (warmer by other manufacturers) not wired...per roll warmer +$644.40
For pass-thru construction +$351.00
No Drains, in lieu of standard drains
Locate drains on left +$91.80
Exposed element hot food wells with stainless spillage pan, in lieu of standard wells in a (3) well unit +$437.40
Tray slide - customer's side Tray Slide on fixed brackets, (3) bar tubular, 1" dia. stainless, end caps, mounted 34"H (specify any other height), NSF +$446.40
Tray Slide, customer's side, (3) tubular Ø 1" bars, stainless steel, on hinged brackets, end caps, mounted 34"H (specify any other height) +$498.60
Doors - customer's side Sliding doors, customer's side, with lock and keys, paint grip steel to match body, and recessed stainless steel pull (not available on gas models) +$1,778.40
Sliding doors, paint grip, for customer's side of hot food units with (3) openings (not available on gas models), cULus, UL EPH Classified +$1,698.30
Cutting board/shelf - customer's side Cutting Board, customer's side, 7"D, 1/2" white poly, 18ga stainless steel shelf, (2) fixed brackets, shelf mounted flush to counter top (No hinged brackets) +$855.90
Cutting Board/Shelf, customer's side, 7"D, 18ga stainless steel shelf, (2) fixed brackets, shelf mounted flush to counter top (specify any special height) +$445.50
Cutting Board/Shelf, customer's side, 7"D, 18ga stainless steel shelf, (2) hinged brackets, shelf mounted flush to counter top (specify any special height) +$719.10
Cutting Board, customer's side, 10"D, 1/2" white poly, 18ga stainless steel shelf, (2) fixed brackets, shelf mounted flush to counter top (No hinged brackets) +$1,080.90
Cutting Board/Shelf, customer's side, 10"D, 18ga stainless steel shelf, (2) hinged brackets, shelf mounted flush to counter top +$944.10
Cutting Board/Shelf, customer's side, 10"D, 18ga stainless steel shelf, (2) fixed brackets, shelf mounted flush to counter top (No hinged brackets) +$670.50
Voltage options 120v/60/1-ph, 2250 watts, 18.8 amps
208v/60/1-ph, 2250 watts, 10.8 amps
208v/60/3-ph, 2250 watts, 6.3 amps +$231.30
240v/60/1-ph, 2250 watts, 9.4 amps
240v/60/3-ph, 2250 watts, 5.5 amps +$231.30
What is included NOTE:: Unit is designed to be used as a stand alone unit, not part of a serving systems line due to the body depth differences Close Description Duke Duke
E-3-DLPG
Electric Hot Food Serving Counter
with Controls,
