Scotsman HID540A-1 21.25" Nugget Ice Maker Dispenser, Nugget-Style - 500-600 lb/24 Hr Ice Production, Air-Cooled, 115 Volts
Calculate
Available Quantities
- Assembled in the US with US and foreign parts.
- 2023 model, meets the newest EPA and DOE codes.
Scotsman HID540A-1 Specifications
| Type of Cooling | Air-Cooled |
|---|---|
| 24 Hr Production | 500-600 lbs |
| Type of Ice | Nugget |
| Bin Storage Capacity | 40 lb |
| Brand | Scotsman |
| Refrigerant Type | R-404A |
| Made in | USA |
| Certifications | 5-15P |
| Vendor | Scotsman |
| Type of Storage | Ice Dispensers |
| Category | Ice Maker/Dispenser, Nugget Style |
| Voltage | 115 Volts |
| Width (in) | 21.25 |
| Height (in) | 41 |
| Depth (in) | 24.38 |
| Weight | 215 |
Additional Information on Scotsman HID540A-1
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Scotsman HID540A-1 Certifications
5-15P
Two-pole with ground pin plug
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Scotsman HID540A-1 Description

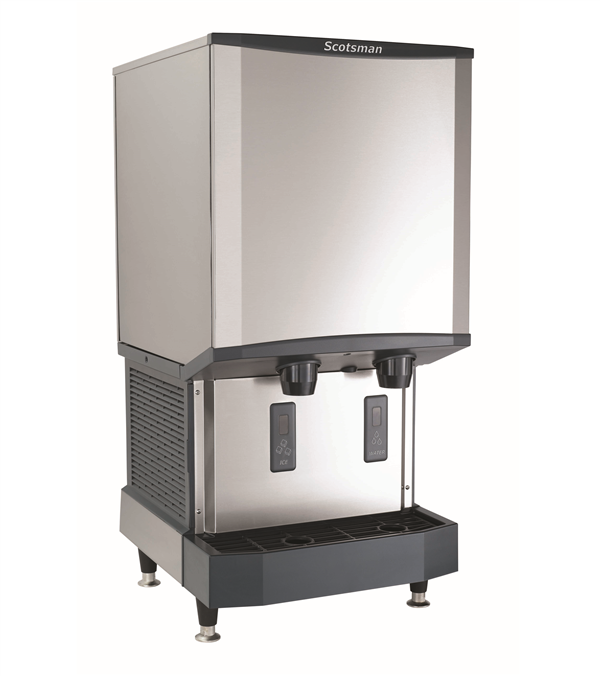

The Scotsman HID540A-1 Meridian™ air cooled ice water dispenser is a convenient unit that dispenses water and nugget ice. This air cooled ice dispenser produces chewable, slow-melting H2 Nugget Ice. The nuggets provided by this commercial ice maker measure ¾” x 5/16” x ⅜” and with optimal water and air temperature, it is capable of producing around 500 lbs in 24 hours. To make sure there is always nugget ice ready to serve, this commercial ice water dispenser can store up to 40 lbs of it.
Key components feature AquaArmor featuring AgION™ to make sure the device is as sanitary as possible.
LED diagnostic lights within the ice dispenser provide service crew with important information about the device’s status for easy troubleshooting. This unit features a QR that is unique to each device. Scanning the QR code gives operators access to the manual, parts list, and device-specific warranty history. Scotsman provides a convenient USB drive with the unit to make sure users regularly update the device’s software.
Producing 100 lbs of ice with this ice maker requires 12 gallons of water and 5.5 kWh of power.
The overall dimensions of the Scotsman HID540A-1 Meridian™ Ice Machine/Dispenser are 41” in height, 24-⅜” front-to-back, and 21-¼” in width.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
