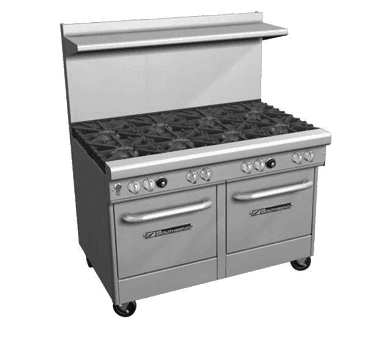

Southbend 4484AC-3TR Ultimate Restaurant Range

4484AC-3TR
Southbend 4484AC-3TR Ultimate Restaurant Range
Free Freight
Price $11,319

You will earn 11,319 Reward Points.

You will earn 8,358 Reward Points.

FINANCEFOR $209.62/mo.

Southbend
More from Southbend
PayPal CREDIT
Specs
BrandSouthbend
Width (in)48.63
Height (in)59.50
Depth (in)44.50
Weight735.00
You May Also Need


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Ultimate Restaurant Range, gas, 48", (1) star/sauté front, (1) non-clog burners rear, standard grates, (1) 36" griddle right, thermostatic controls, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 162,000 BTU, cCSAus, CSA Flame, CSA Star, NSF

Standard Features:
  • Factory installed Regulator
  • Standing pilot for open top burners
  • Battery spark ignition for oven bases
  • Front located manual gas shut-off to entire range
  • One year No Quibble, 24/7 parts and labor warranty
  • 4”Stainless steel front rail, stainless steel front and sides
  • Commercial gas range 48-5/8”” wide with a 37” high cooking top
  • Four (4) removable, cast iron grate tops (rear holds up to 14” stock pot).
Optional 33K Non-clog Burners (Burner Option 1)
  • 33,000 BTU NAT
  • (8) patented, one piece, lifetime clog free, cast iron burners
Optional Wavy Grates (Burner Option 2)
  • Allows full use of entire range top
  • Cast bowl design for better efficiency
  • Available only with 27K BTU Non-clog burners
Optional Cast Iron Star/Saute' Burners (Burner Option 3)
  • (8) 33,000 BTU NAT star burners
  • Port arrangement allows for even distribution of flame
Optional Split Burner Configuration (Burner Option 4)
  • (4) star/saute’ burners in front and (4) standard 33K burners in rear
Optional Pyromax Burners (Burner Option 7)
  • 40,000 BTU NAT
  • Group of 4 burners available
  • Built in port protection drip ring
  • PATENTED high output, three piece, easy clean Non-clog burner
Optional Charbroiler (L or R)
  • 24” or 36” Available
  • Removable, cast iron grates
Optional Griddle Top (L or R)
  • 1” smooth, polished steel griddle plate with raised sides on 48” wide griddles
  • 1/2” smooth, polished steel griddle plate with raised sides on 24” and 36” wide griddles [available in manual or thermostatic]
Optional 5 Burner Configuration (Burner Options 5 and 6)
  • Combine (2) Pyromax burners in the rear with either (3) standard 33K burners (Opt 5) or (3) star 33K burners (Opt 6) in the front
Options & Accessories
  • 5" flue riser
  • 10” Flue Riser
  • Extra Oven Racks
  • Rear step up burners
  • Cabinet base door (No Charge)
  • Casters-all swivel-front with locks
  • Hot Top plate - plate replaces 2 Open burners
  • Flame Failure available (Contact factory for available  model numbers)
  • Battery spark ignition for open tops, charbroilers,  griddles and hot tops
  • 3/4” quick disconnect with flexible hose complies with ANSI Z 21.69 (specify 3ft, 4ft, 5ft)
  • Various salamander & cheesemelter mounts available. (Please refer to the price list) Dimensions -in (mm)
Specifications
  • Pressure Regulator: Factory installed.
  • Oven Door: Spring assisted, counterweight door.
  • Exterior Finish: Stainless steel front, sides and shelf standard.
  • Legs: 6” stainless steel adjustable legs standard (casters optional)
  • Stainless Steel Cabinet: 18” Stainless steel cabinet base. Optional no-charge door.
  • Two (2) removable one piece drip trays are provided under burners to catch grease drippings.
  • Flue Riser: 22.5” flue riser standard with heavy duty shelf. Optional 10” and 5” flue riser available without shelf.
  • RangeTop: 27” deep cooking surface. Center-to-center measurements between burners not less than 12”, side-to-side or front-to-back.
  • Oven Interior: Double sided, full porcelain enamel oven cavity for superior cleanability and corrosion protection. Coved corners for easy cleaning and enhanced airflow eliminating hot/cold spots.
Options
