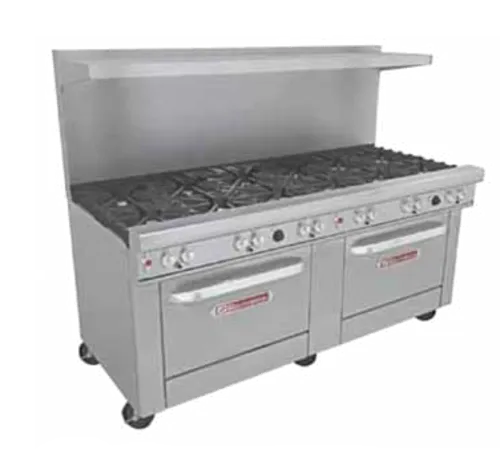

Southbend 4721AA Restaurant Gas Range, 72" W with 12 Burners and (2) Convection Ovens - 460,000 BTU
SKU#: 4721AA
1/3
Free Freight?
Quick Ship
$19,510.00
Web price is showing. Call
Calculate
Product Protection
Starting at
- Please see specification sheet for installation clearance requirements
Southbend 4721AA Specifications
| Quantity of Burners | 12 Burners |
|---|---|
| Total BTU | 401000 - 500500 |
| BTU | 460,000 BTU |
| Number of Burners | 9 - 12 |
| Range Base Style | Convection Oven |
| Burner Style | Grates |
| Burner Type | Non-clog burners |
| Brand | Southbend |
| Certifications | NSF |
| Heat | Gas |
| Width (in) | 73 |
| Height (in) | 59.5 |
| Depth (in) | 41.8 |
| Weight | 1320.00 |
Additional Information on Southbend 4721AA
A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Southbend 4721AA Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Southbend 4721AA Description
Ultimate Restaurant Range, gas, 72", (12) non-clog burners, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 460,000 BTU, CSA, NSF
Ultimate Restaurant Gas Range, 72", (12) non-clog burners, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides & shelf, 6" adjustable legs, 460,000 BTU, CSA, NSF (more commercial restaurant ranges and cooking equipment available)
Standard Features:
Standard Features:
- Factory-installed Regulator
- Standing pilot for open top burners
- Battery spark ignition for oven bases
- One year No Quibble, 24/7 parts and labor warranty
- 4”Stainless steel front rail, stainless steel front and sides
- Commercial gas range 73” wide with a 37” high cooking top
- Four (4) removable, cast iron grate tops (rear holds up to 14” stock pot)
- (2) Front located, manual, gas shut-off valves for each side of the range
Optional 33K Non-clog Burners (Burner Option 1)
- 33,000 BTU NAT
- (10) patented, one-piece, lifetime clog-free, cast iron burners
Optional 5 Burner configuration (Burner Option 5)
- Combine (2) Pyromax burners in the rear with (3) standard 33K burners in the front
Optional Griddle Top (L or R)
- 36" Available
- Manual or thermostatically controlled
- 1/2" thick cold rolled steel griddle plate
Optional Charbroiler (L or R)
- 36” Available
- Removable, cast iron grates
Options & Accessories
- 5" flue riser
- 10” Flue Riser
- Extra Oven Racks
- Casters-all swivel-front with locks
- Rear step up burners (4721AA & 4721DD Only)
- Various salamander & cheesemelter mounts available
- Hot Top plate - plate replaces 2 Open burners 1, 2 or 3
- Battery spark ignition for open tops, charbroilers, griddles, and hot tops
- 3/4” quick disconnect with flexible hose complies with ANSI Z 21.69 (specify 3ft, 4ft, 5ft)
- Flame Failure available (4721AA, 4721DD, 4721AA-3GL, 4721DD-3GL, 4721AA-3GR & 4721DD-3GR)
Construction Specifications
- Oven Door: Spring assisted door
- Pressure Regulator: Factory installed
- Exterior Finish: Stainless steel front, sides, and shelf standard
- Legs: (6) total 6” stainless steel adjustable legs standard (casters optional)
- Flue Riser: 22.5” flue riser standard with heavy-duty shelf. Optional 10” and 5” flue riser available without shelf
- Oven Interior: Double-sided, full porcelain enamel oven cavity for superior cleanability and corrosion protection. Coved corners for easy cleaning and enhanced airflow eliminating hot/cold spots
- RangeTop: 27” deep cooking surface. Center-to-center measurements between burners not less than 12”, side-to-side or front-to-back. Two (2) removable one-piece drip trays are provided under burners to catch grease drippings
