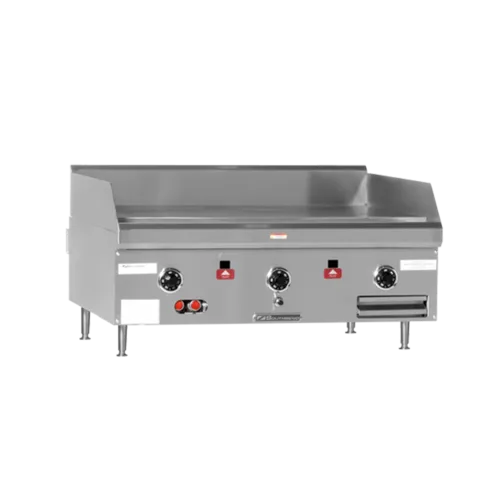

Southbend HDG-18 18'' Countertop Gas Griddle with Thermostatic Controls - 30,000 BTU

Name: Southbend HDG-18 18'' Countertop Gas Griddle with Thermostatic Controls - 30,000 BTU
Brand: Southbend
SKU: HDG-18
Price: 4607.5 USD
Availability: LimitedAvailability

SKU#: HDG-18

1/2

Southbend HDG-18 18'' Countertop Gas Griddle with Thermostatic Controls - 30,000 BTU

Free Freight?

Quick Ship

$4,607.50

Web price is showing. Call

Product Protection

Starting at

View all Southbend Countertop Griddles

Southbend HDG-18 Specifications

Plate Thickness	1 Inch
Total BTU	12000 - 55000
Installation Type	Countertop
Power Type	Natural or Propane Gas
Cooking Surface Material	Polished Steel
Construction	Stainless Steel
Burner Style	Tube
With Griddle	Yes
Brand	Southbend
Number of Burners	2
Certifications	NSF
Control Type	Thermostatic
BTU	30,000 BTU
Heat	Gas
Usage	Standard Duty
Width (in)	18
Height (in)	16.13
Depth (in)	33.75
Weight	270.00

Additional Information on Southbend HDG-18

middleby-financial-flyer.pdf

warranty-sheet.pdf

southbend-hdg-18.specsheet.pdf

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Southbend HDG-18 Certifications

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Southbend HDG-18 Description

Griddle, countertop, gas, 18" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides & 4" adjustable legs, 30,000 BTU, CSA, NSF

Commercial Countertop Griddle, gas, 18" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 30,000 BTU, CSA, NSF (more flat top grills & griddles, countertop ranges, commercial grills, and other cooking equipment available)

Standard Features:

Protected flue opening
Electronic spark ignition (battery)
1” thick polished rolled steel plate
Grease drawers with large capacity
5” high rear and 4” side splash guards
Each burner equipped with runner tube
Reinforced, insulated double wall sides
3/4” rear gas connection and pressure regulator
Available in 18”, 24”, 36”, 48”, 60” and 72” widths
Fully welded griddle plate with protected exhaust vent
20,000 BTU (NAT or LP) burner per 12” Manual Models
30,000 BTU (NAT or LP) burner per 12” Thermostatic Models
Exclusive “NO COLD” Zone -Uniform heat distribution across surface
Stainless steel front, vent and sides are standard, rear and bottom panels are aluminized steel.

Standard Features of Thermostatic Griddle Models

Flame failure safety device
Embedded load sensing thermostat
“Instant-on” thermostatic controls for precise settings between 200°F and 400°F

Options & Accessories

Casters for stand
Stainless steel stand
Grooved griddle plates
Chrome plated griddle plates
Stainless steel plate shelf with or without cutting board
2” high insulator base for mounting on refrigerated base

Standard Construction Specifications

Exterior Finish: Front, sides and vent are constructed of #3 polished 430 and 304 stainless steel. Bottom and rear are aluminized steel. Sides are reinforced and fully insulated. 5” rear and 4” side splash. Griddle Plate: 18”, 24”, 36”, 48”, 60”, 72” wide unit with one 30,000 BTU (NAT or LP) burners every 12” on thermostatic models and one 20,000 BTU (NAT or LP) burners every 12” on manual models. Fully welded, 1” thick polished steel griddle plate with side splash guards, and grease drawer. Griddle Controls: Independent, “Instant-on” thermostatic controls with uniform temperature range of 200°F to 400°F. (Thermostatic models ONLY) Legs: Stainless steel 4” adjustable legs. Gas Heat Control System: Each foot of griddle is heated by a “U” shaped burner. Each burner is controlled by a thermostatic control. For safety, each pilot has a flame failure device. A 3/4” rear gas connection is standard. Units over 48” wide are constructed of two bodies.(Thermostatic models ONLY)
