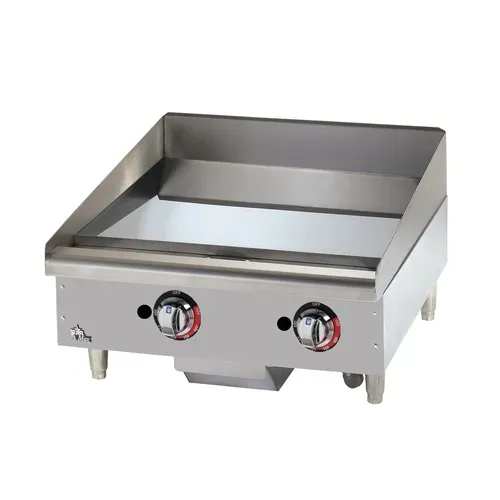

Star 624TCHSF Star-Max® 24'' Countertop Gas Griddle with Thermostatic Controls - 56,600 BTU
SKU#: 624TCHSF
1/3
Calculate
Star 624TCHSF Specifications
| Plate Thickness | 1 Inch |
|---|---|
| BTU | 56,600 BTU |
| Total BTU | 56000 - 104000 |
| Cooking Surface Material | Chrome |
| Installation Type | Countertop |
| Power Type | Natural Gas |
| Construction | Stainless Steel |
| Series | Star-Max® |
| With Griddle | Yes |
| Brand | Star |
| Made in | USA |
| Number of Burners | 2 |
| Certifications | cULus |
| Burner Style | U-Shaped |
| Control Type | Thermostatic |
| BTU per Burner | 56600 |
| Controls | Thermostatic |
| Heat | Gas |
| Usage | Heavy Duty |
| Width (in) | 24 |
| Height (in) | 15.5 |
| Depth (in) | 29 |
| Weight | 175.00 |
Additional Information on Star 624TCHSF
installation-and-operation.pdf
warranty.pdf
sta0263a.pdf
middleby-financial-flyer.pdf
warranty-sheet.pdf
star-624tchsf.specsheet.pdf
installation-operation.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Star 624TCHSF Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Star 624TCHSF Description
Star-Max® Heavy Duty Commercial Griddle, gas, countertop, 24" W x 21" D cooking surface, 1" thick chrome griddle plate, embedded modulating thermostat every 12", heavy duty knobs, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, welded steel frame with stainless steel front, 4" legs, 56,600 BTU, cULus, UL EPH Classified, Made in USA (ships Natural gas includes LP conversion kit)
Standard Features:
- Heavy-duty 4” adjustable legs
- Available in 15”, 24”, 36” and 48” widths
- Heavy duty chrome plated cast zinc knobs
- Large 4-1/2 quart stainless steel grease drawer
- Highly polished 1” thick polished steel or chrome plate
- Spatula wide 3-1/4” front grease trough and grease chute for easy cleaning
- All units shipped for Natural Gas Service with LP conversion kit and reversible regulator
- 28,300 BTU aluminized U-shaped steel burner every 12” of cooking surface provide even heat distribution
- Cool-to-the-touch Countertop Griddle stainless steel bull nose front provides knob protection and comfortable work zone
- Heavy-duty all-welded countertop range body construction with stainless steel front, bull nose and 4-1/2” high tapered splash guard
- Modulating thermostat inserted into the griddle plate 3/16” from the cooking surface, adjusts from 150° to 450°F providing quick response to surface temperature change
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.
