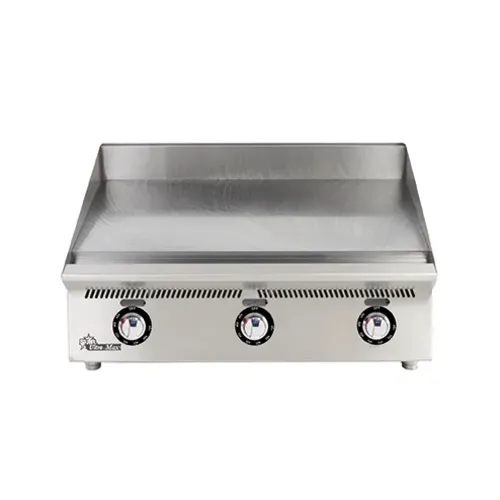

Star 836MA Ultra-Max® 36'' Countertop Gas Griddle with Manual Controls - 90,000 BTU
SKU#: 836MA
Calculate
Star 836MA Specifications
| Plate Thickness | 1 Inch |
|---|---|
| Total BTU | 56000 - 104000 |
| Installation Type | Countertop |
| Power Type | Natural or Propane Gas |
| Cooking Surface Material | Polished Steel |
| Construction | Stainless Steel |
| Series | Ultra-Max® |
| With Griddle | Yes |
| Brand | Star |
| Made in | USA |
| Certifications | cULus |
| Number of Burners | 3 |
| Control Type | Manual |
| BTU | 90,000 BTU |
| BTU per Burner | 30000 |
| Controls | Manual |
| Heat | Gas |
| Usage | Heavy Duty |
| Width (in) | 36 |
| Height (in) | 18 |
| Depth (in) | 34.2 |
| Weight | 409.00 |
Additional Information on Star 836MA
warranty.pdf
marketing-sheet.pdf
sta0618a.pdf
installation-and-operation.pdf
middleby-financial-flyer.pdf
warranty-sheet.pdf
installation-operation.pdf
star-836ma.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Star 836MA Certifications
cULus
UL (Underwriters Laboratories) approval for the US and Canada
UL
UL has tested representative samples of this product and determined that the product meets specific, defined requirements.
UL EPH
Certifies that the goods conform to public health and environmental quality compatibility requirements.
UL EPH Classified
This product complies with UL EPH standards and meets ANSI/NSF requirements.
Star 836MA Description
Ultra-Max® Commercial Griddle, countertop gas, 36" W x 24" D cooking surface, 1" thick polished steel griddle plate, (3) manual controls, 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 90,000 BTU, cULus, UL EPH Classified, Made in USA
Standard Features:
- 30,000 BTU per 12" section of griddle and standing pilot ignition
- 1" (25 mm) thick polished steel or optional chrome countertop griddle plate
- Wide operating temperature range - between 150°F (66°C) and 550°F (288°C)
- 4.375" (111 mm) rear and side countertop range splash guard and a 3.5" (89 mm) by 1" (25 mm) grease trough for easy cleanup
- Optional mechanical snap-action thermostats use sensors embedded 0.1875" (5 mm) from the cooking surface every 12" (305 mm) for precise temperature control
- Note: More Restaurant Equipment, Cooking Equipment & Commercial Grills are available.
Options & Accessories
- Steel stand with legs or casters
- Manual control valve or mechanical snap-action thermostat
- 0.001-inch (0.025 mm) thick hexavalent chrome surface on ultra-tough T1 steel plate (not available on manual control models)
