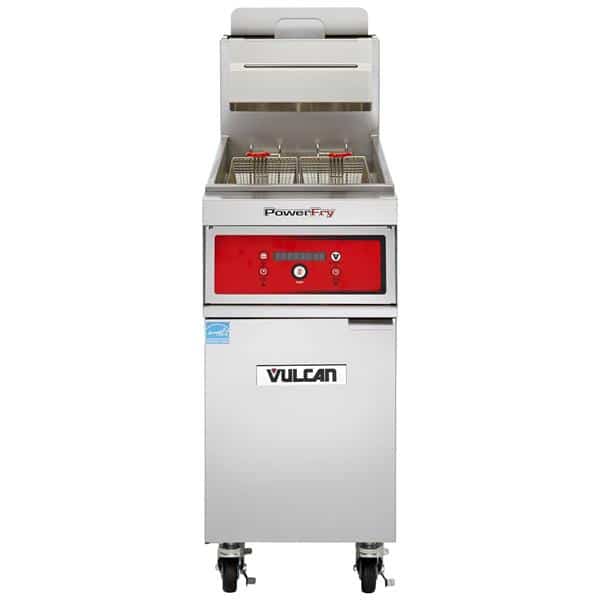

Vulcan 1TR65DF PowerFry3 51 - 90 lb. Gas Floor Model Full Pot Fryer with Digital Controls - 80,000 BTU
Energy Star ?Chat Now
Calculate
Vulcan 1TR65DF Specifications
| Total BTU | 80,000 BTU |
|---|---|
| Control Type | Digital |
| Installation Type | Freestanding |
| Series | PowerFry3™ |
| Construction | Stainless Steel |
| Burner Style | Tube |
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Fry Pot | Stainless Steel |
| Made in | USA |
| Certifications | NSF |
| Power Type | Gas |
| Model | Free Standing |
| Basket | Twin |
| Basket Lifts | No |
| BTU | 80,000 BTU |
| Exterior Finish | Stainless Steel |
| Controls | Solid State Digital |
| Capacity | 51 - 90 lb. |
| Heat | Natural or Propane Gas |
| Width (in) | 21 |
| Height (in) | 47.25 |
| Depth (in) | 30.13 |
| Weight | 380.00 |
Additional Information on Vulcan 1TR65DF
parts-catalog.pdf
service-manual.pdf
installation-operation.pdf
sell-sheet.pdf
parts-manual.pdf
product-guide.pdf
owner-s-manual.pdf
vulcan-1tr65df.specsheet.pdf
warranty-sheet.pdf
brochure.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 1TR65DF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 1TR65DF Description
If you’re looking for one of the most energy-efficient gas Commercial Deep Fryers equipped with a filtration system that holds 65-70 lbs of oil, the Vulcan 1TR65DF PowerFry3™ Fryer is the right fryer for you. ENERGYSTAR® qualification doesn’t quite describe this fryer, it is one of the most energy-efficient that money can buy.
Vulcan’s ThreePass™ heat transfer system is an ingenious piece of engineering that looks like it belongs on a racecar. This heat transfer system uses heat exchange tubes with two bends that extend the surface area of the gas tubes as burning gas moves through it. This allows it to use more of the heat that would otherwise be expelled by other fryers. This design yields 60% cooking efficiency and 72% thermal efficiency. To extend the life of the oil, this fryer features SoftStart™ which uses only 40,000 BTU/hr when warming up oil. At Idle this fryer only uses 5,083 BTU/hr to maintain the cooking temperature.
The digital controls on this fryer display the temperature accurately in either Celcius or Fahrenheit and can be from 200°F to 390°F (93°C to 199°C). Two count-down timers can cook with either compensating time or actual time. For added convenience, this fryer features auto boil-out mode, electronic ignition, and three melt modes.
Thanks to the built-in filtration system oil can be used for much longer without needing to be changed reducing downtime and operational costs. Filtration is provided by the KleenScreen PLUS® stainless steel mesh filter.
The cabinet and fry tank of this fryer is made from stainless steel for durability ad ease of maintenance. This fryer comes mounted on adjustable 6” casters making it easy to move around while keeping it level. Twin fry baskets with plastic coated handles, a cleanout rod, and tank brush are also included.
A NEMA 5-15P cord and plug are included to connect the fryer to a 120-volt outlet and in total 80,000 BTU/hr of gas input is required.
Standard Features:
- Hi-limit shut-off.
- Stainless steel cabinet.
- Electronic matchless ignition.
- Tank brush and clean-out rod.
- 1 1⁄4" port ball type drain valve.
- Set of four 6" adjustable (2 locking) casters.
- Twin fry baskets with plastic coated handles.
- Maintains idle temperature setting with only 5,049 BTU/hr. to save energy.
- Stainless steel fry tank, 65 - 70 lb. capacity. Includes 10 year limited tank warranty.
- Energy saving SoftStart™ ignition system extends oil life while requiring lower BTU’s.
- Energy Efficient ThreePass™ heat transfer system yielding 60.0% cooking efficiency and 72% Thermal Efficiency. ENERGY STAR® qualified.
- FRYMATE-VX15 add-on frymate.
- 3⁄4" Flexible gas hose with quick disconnect.
- Set of twin baskets - 9 1⁄4"w x 13 1⁄4"d x 6"h.
- 10" high stainless steel removable splash guard.
- Single large basket - 18 3⁄4"w x 13 1⁄4"d x 5 1⁄2"h.
- Stainless steel tank cover - doubles as a work surface top.
- Connecting Kit(s) - Connects two fryers together (brackets, grease strip and hardware included).
- Second year extended limited parts and labor warranty
65 - 70 lbs. capacity free standing gas fryer, Vulcan-Hart Model No. (1TR65A) (1TR65D) (1TR65C). 80,000 BTU/hr. input. Stainless steel cabinet. Set of four 6" adjustable casters (2 locking). Stainless steel fry tank with ThreePass™ heat transfer system. Energy Star® qualified. SoftStart™ ignition system using 40,000 BTU/hr. to extend oil life during start up. Idle rate of 5,049 BTU/hr. to maintain cooking temperature. 1 1⁄4" port ball type drain valve. Twin fry baskets with plastic coated handles. Solid state analog knob control, digital, or programmable computer control systems all standard with electronic matchless ignition. Tank brush and clean-out rod included. CSA design certified. NSF listed.
