Vulcan 2ER85AF (2) 85 lb. Full Frypots Electric Floor Fryer with Analog Controls and KleenScreen PLUS® Filter System, 208 Volts
Energy Star ?Chat Now
Calculate
Vulcan 2ER85AF Specifications
| Number of Fry Pots | 2 |
|---|---|
| Control Type | Analog |
| Plug Type | Hardwire |
| Filtration System | KleenScreen PLUSВ® Filter System |
| Burner Style | Ribbon |
| Cabinet | Stainless Steel |
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Made in | USA |
| Certifications | NSF |
| Capacity | (2) 85 lb. Frypots |
| Heat | Electric |
| Voltage | 208 Volts |
| Wattage | 48.0 Kilowatts |
| Width (in) | 42 |
| Height (in) | 39.44 |
| Depth (in) | 34.38 |
| Weight | 700.00 |
Additional Information on Vulcan 2ER85AF
parts-catalog.pdf
fry-tank-warranty.pdf
parts-list.pdf
warranty.pdf
vulcan-2er85af.specsheet.pdf
service-manual.pdf
owner-s-manual.pdf
warranty-sheet.pdf

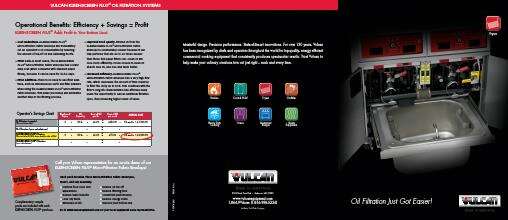

brochure.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 2ER85AF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 2ER85AF Description
For commercial kitchens that use electric equipment and do a lot of deep-frying, a reliable dual fryer battery like the 2ER85AF from Vulcan is a great asset. This fryer has 85 lbs capacity fry tanks and comes complete with oil filtration that lowers operational costs by allowing frying oil to be used for much longer without detriment to flavor. The Commercial Deep Fryers in this battery are all ENERGY STAR® qualified for efficiency.
The fry tanks are made from 16 gauge stainless steel and the frying oil is heated evenly with 24 kW low watt density ribbon style heating elements.
To easily set the frying temperature, this fryer has a simple solid state analog knob behind the door with a range from 200° to 390°F. For additional convenience, this fryer has electronic ignition and selectable fat melt modes.
This fryer system’s KleenScreen PLUS® filtration system uses a stainless steel mesh to remove most particles. The filtration system is protected by a filter vessel made from 18 gauge stainless steel. If you need to filter out particles down to .5 microns, optional KleenScreen PLUS® filter envelopes can be ordered. Filtration time is kept to a minimum by a ⅓ HP pump that moves oil at 8 GPM.
The stainless steel construction of the cabinet and fry tank make this fryer durable and easy to clean. The 6” legs included with this fryer make it easy to keep level. A pair of twin fry baskets with plastic coated handles are included.
Standard Features:
- High limit control.
- Four 6" adjustable legs.
- Multiple fat melt modes.
- Stainless steel front and sides.
- Ten year limited fry tank warranty.
- 1 1⁄4" full port ball type drain valve.
- One year limited parts and labor warranty.
- Twin fry baskets with plastic coated handles.
- 16 gauge stainless steel fry tank, 85 lb. capacity.
- 24 kW low watt density ribbon style heating elements.
- Second year extended limited parts and labor warranty
- 480 volt, 3 phase. (Separate 120 volt, 20 amp electric supply required.)
- Frymate™ VX21S dump station
- Set of four 6" adjustable casters (2 locking).
- 10" high stainless steel removable splash guard
- Large single fry basket - 18 3⁄4"w x 15 1⁄4"d x 6"h
- Extra set of twin fry baskets - 9 1⁄4"w x 15 1⁄4"d x 6"h
- Stainless steel tank cover - doubles as a work surface top
- Connecting Kit(s) - connect two fryers together (banking strip, brackets and hardware)
Electric deep fat fryer, Vulcan-Hart Model No. 1ER85A: Solid analog state knob, 1ER85D: Solid state digital, 1ER85C: Computer temperature controls are adjustable from 200° to 390°F and include 3 melt cycle and high limit control. Stainless steel cabinet with four 6" adjustable legs. 16 gauge stainless steel fry tank holds 85 lbs. of frying compound. 1 1⁄4" full port ball type drain valve. 24 kW low watt density ribbon style heating elements. Twin fry baskets. Power supply is 208 volt, 50/60 Hz, 3 phase. NSF listed. CSA design certified.
