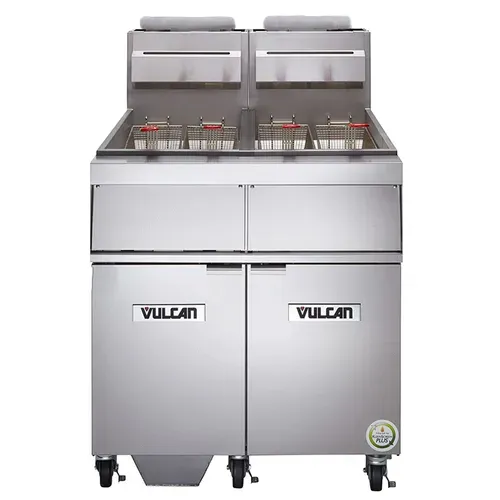

Vulcan 3GR85MF Hart Model (3) 85-90 lb. Fryers Gas Floor Fryer with Millivolt Thermostatic Controls and KleenScreen PLUS® Filtration System, 120 Volts - 450,000 BTU
Calculate
Vulcan 3GR85MF Specifications
| Series | Hart Model |
|---|---|
| Filtration System | KleenScreen PLUS® Filtration System |
| Control Type | Millivolt Thermostatic |
| Cabinet | Stainless Steel |
| Brand | Vulcan |
| Fry Pot | Stainless Steel |
| Made in | USA |
| Certifications | NSF |
| Battery | 3 |
| Basket | Twin |
| Basket Lifts | No |
| BTU | 450,000 BTU |
| Exterior Finish | Stainless Steel Front & Sides |
| Controls | Мillivolt thermostat |
| Capacity | (3) 85-90 lb. Fryers |
| Voltage | 120 Volts |
| Width (in) | 63 |
| Height (in) | 46.25 |
| Depth (in) | 34.38 |
| Weight | 922.00 |
Additional Information on Vulcan 3GR85MF
fry-tank-warranty.pdf
parts-catalog.pdf
warranty.pdf
service-manual.pdf
parts-list.pdf
sell-sheet.pdf
warranty-sheet.pdf
vulcan-3gr85mf.specsheet.pdf
brochure.pdf
owner-s-manual.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 3GR85MF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 3GR85MF Description
The 3GR85MF Fryer from Vulcan is an excellent triple fryer battery that offers 85-90 lbs of oil capacity in each fry tank complete with built-in filtration. To keep up with high volume frying Floor Model Gas Fryers from Vulcan are an easy pick
Oil in each fry tank is evenly heated with five heat exchanger tubes that can be removed for cleaning. The oil’s flavor is protected by V-shaped cool zones in the fry tanks that collect crumbs to prevent carbonization.
The oil temperature of each fryer can be set between 200°F and 400°F with simple to use millivolt thermostats behind the doors.
To maintain the quality of the oil for extended periods, this fryer system has the KleenScreen PLUS® filtration system that utilizes a stainless steel mesh filter. The filtration system is kept inside an 18 gauge stainless steel filter vessel and particles down to .5 microns can be filtered out with the use of optional KleenScreen PLUS® filter envelopes. Oil is circulated at a rate of 8 GPM by a ⅓ HP motor to quickly filter oil while keeping downtime to a minimum.
This fryer is designed to stand up to the rigors of daily commercial use with a stainless steel cabinet and fry tank. The 6” casters included with this fryer make it easy to move around for maintenance and cleaning. The casters are also adjustable to make sure the fryer is always level. A tank brush, twin fry baskets with plastic coated handles, stainless steel crumb scoop, and a clean-out rod is also included.
The total gas input required by this fryer is 450,000 BTU/hr and it is configured to use standard 120v power.
Standard Features:
- Hi-limit shut-off.
- 150,000 BTU/hr. input.
- Stainless steel cabinet.
- 1 1⁄4" full port ball type drain valve.
- One year limited parts and labor warranty.
- Set of four 6" adjustable casters (2 locking).
- Twin fry baskets with plastic coated handles.
- Five heat exchanger tubes positioned for easy cleaning.
- Combination gas shut-off valve and pilot ignition system.
- Tank brush, stainless steel crumb scoop and clean-out rod.
- Stainless steel fry tank, 85 - 90 lb. capacity. Includes limited 10 year tank warranty.
- FRYMATE-VX21S add-on frymate.
- 3⁄4" Flexible gas hose with quick disconnect.
- Set of twin baskets - 8 3⁄4"w x 16 3⁄4"d x 6"h.
- Single large basket - 18 3⁄4"w x 17 1⁄4"d x 6"h.
- 10" high stainless steel removable splash guard.
- Stainless steel tank cover - doubles as a work surface top.
- Connecting Kit(s) - Connects two Commercial Deep Fryers together (brackets, grease strip and hardware included).
- Second year extended limited parts and labor warranty
70 - 85 lbs. capacity free standing gas fryer, Vulcan-Hart Model No. (1GR85M) (1GR85A) (1GR85D) (1GR85C). Stainless steel cabinet. Set of four 6" adjustable casters (2 locking). Stainless steel fry tank with five heat exchanger tubes and a “V” shaped cold zone. 1 1⁄4" full port ball type drain valve. Twin fry baskets with plastic coated handles. 150,000 BTU/hr. input. Millivolt (M), solid state analog knob control (A), solid state digital (D), or programmable computer (C) control system. Electronic ignition standard with solid state and computer control models. Tank brush, stainless steel crumb scoop and clean-out rod. CSA design certified. NSF listed.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
