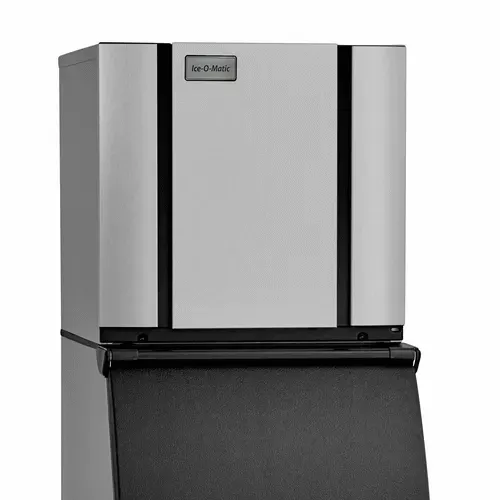

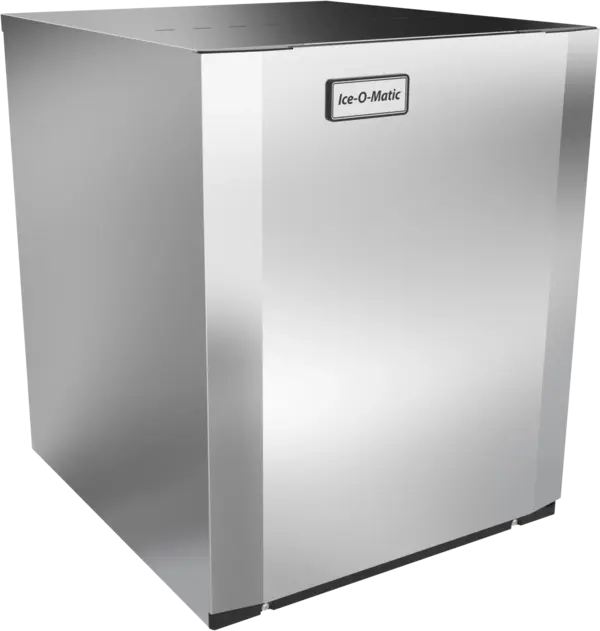

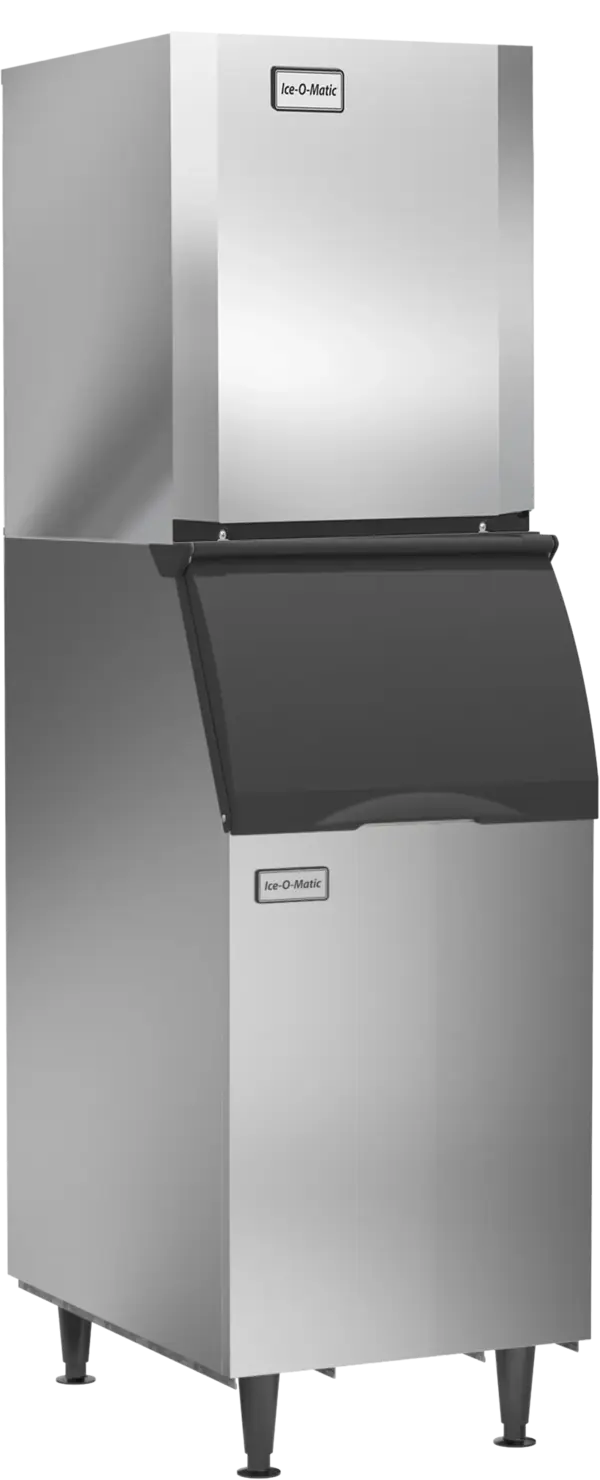

ICE-O-Matic CIM0320HW 22.25" Half-Dice Ice Maker, Cube-Style - 300-400 lb/24 Hr Ice Production, Water-Cooled, 115 Volts
Calculate
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- Better tasting ice
- Reduce service calls by up to 65%
- 7 Year evaporator warranty w/filter purchase (see below)
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM0320HW Specifications
| Type of Cooling | Water-Cooled |
|---|---|
| 24 Hr Production | 300-400 lbs |
| Type of Ice | Half-Dice |
| Model | Elevation Series™ |
| Brand | Ice-O-Matic |
| Refrigerant Type | R-404A |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Voltage | 115 Volts |
| Width (in) | 22.25 |
| Height (in) | 21.25 |
| Depth (in) | 24.25 |
| Weight | 150.00 |
Additional Information on ICE-O-Matic CIM0320HW

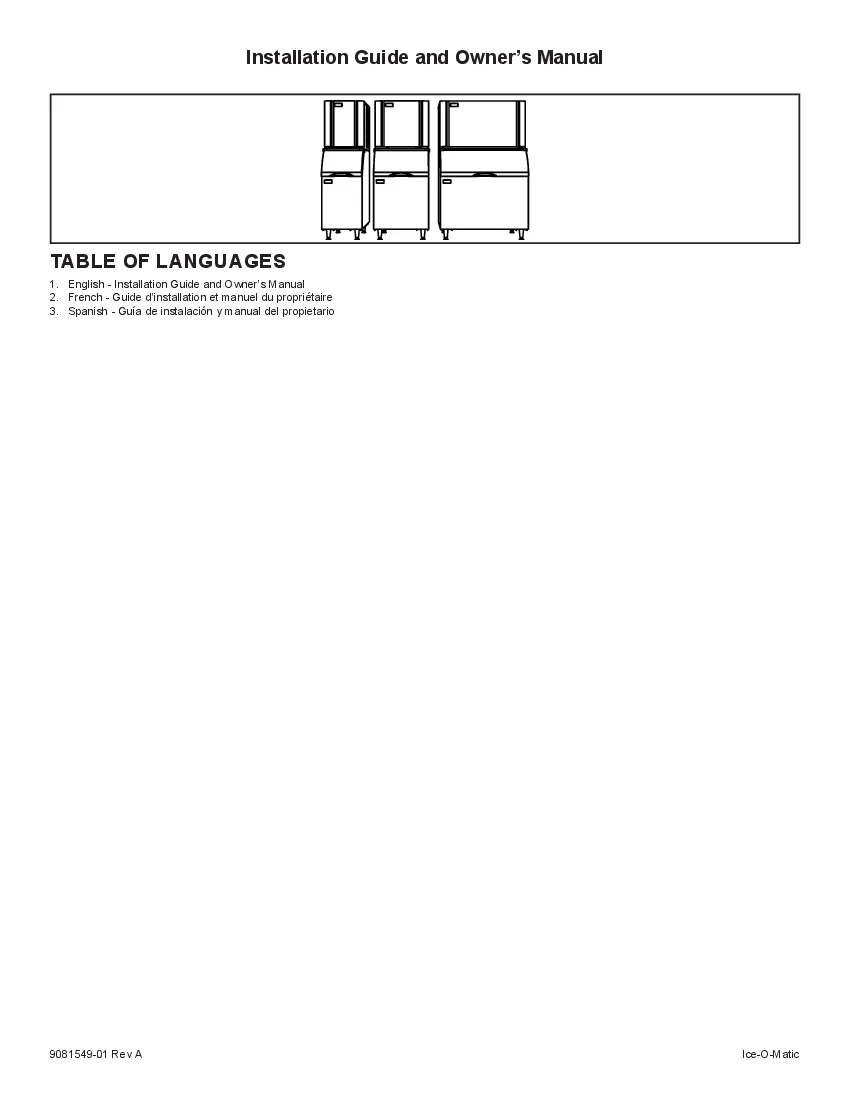

owner-s-manual.pdf

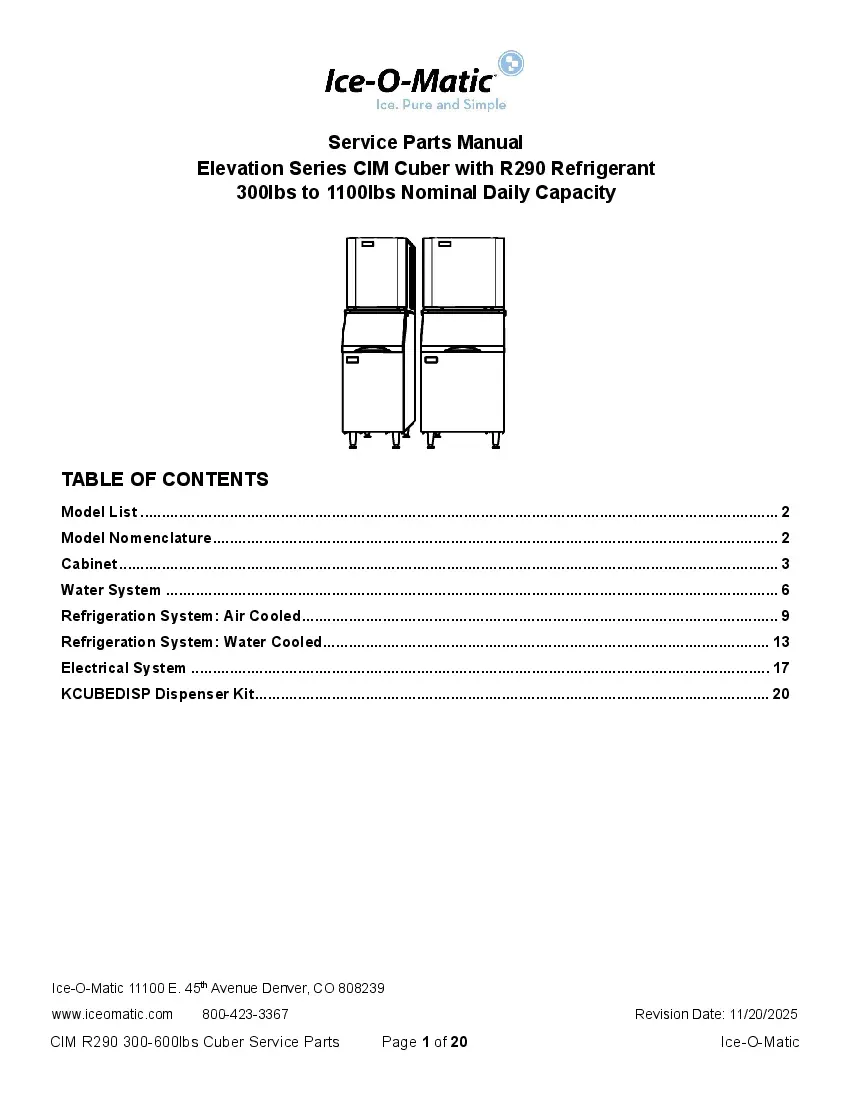

parts-manual.pdf
brochure.pdf
slope-front-storage-bins.pdf
diagram.pdf
warranty-sheet.pdf

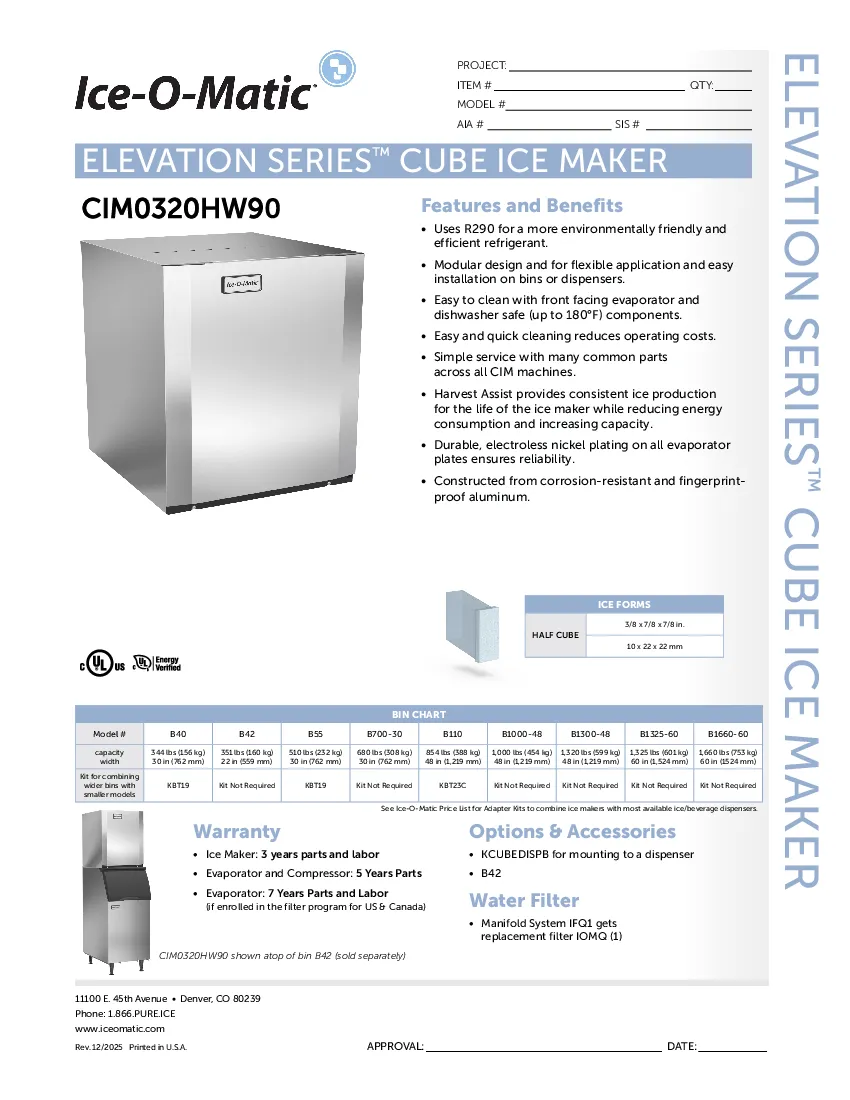

ice-o-matic-cim0320hw.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM0320HW Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM0320HW Description
This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that features water cooled ice machine with 316 lbs of ice production per 24 hours (Tested with air and water temperatures of 70°F and 50°F respectively.). The ice machine produced by this unit measures 7/8” x 3/8” x 7/8”. The water cooled condenser unit uses 179 gallons of water for every 100 lbs of ice produced along with 5.19 kWh of power and 20 gallons of potable water. This unit is configured to utilize 115v/60/1-ph power at 10.7 amps.
BPA-free plastic is used for the construction of the Plastic Food Zone parts. These parts are dishwasher safe and are designed to snap apart for tool-free disassembly. The Agion® treatment to internal parts allows the unit to go for extended periods without cleaning without any adverse effects to the taste of ice produced. The Interior of this water-cooled ice maker is accessed by removing the front panel making it convenient to clean and service without relocating the entire ice maker.
- 22.25" (565 mm) wide space-saving design.
- Produces up to 316 lbs (143 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
