Southbend P24C-CC Platinum Heavy Duty Range

Southbend P24C-CC Platinum Heavy Duty Range

P24C-CC
Southbend P24C-CC Platinum Heavy Duty Range
$6,328.85
Free Freight
$5,523.36
Free Freight

You will earn 5523 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

Web price is showing. Call
Web price is showing. Call

FINANCEFOR $118.70/mo.
  • Please see specification sheet for installation clearance requirements
Description

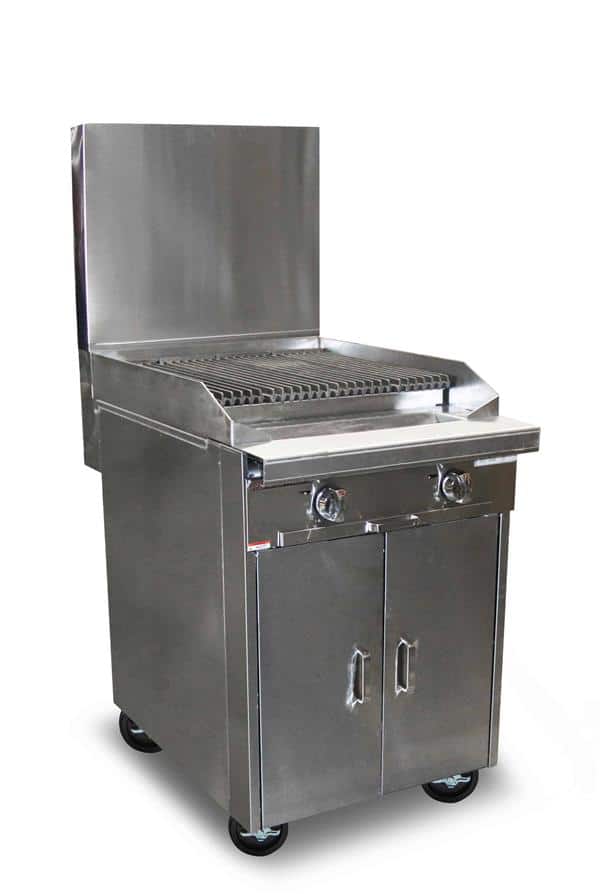

Platinum Heavy Duty Range, gas, 24", charbroiler, cast iron grates, stainless steel radiants, manual controls, cabinet base, stainless steel front sides, rear, exterior bottom & 6" adjustable legs, 64,000 BTU, CSA, NSF (Note: Qualifies for Southbend's Service First™ Program, see Service First document for details)
Platinum Heavy Duty Commercial Gas Range, 24", charbroiler, cast iron grates, stainless steel radiants, manual controls, cabinet base, stainless steel front sides, rear, exterior bottom & 6" adjustable legs, 64,000 BTU, CSA, NSF (more commercial restaurant ranges and cooking equipment also available)

Standard Features:
  • Removable drip tray
  • 9-1/4" deep front rail
  • Stainless steel burner radiants
  • Free battery-design assistance
  • 5" high stainless steel flue riser
  • Fully insulated lining and burner box
  • 600°F even surface temperature on high setting
  • Stainless steel front, sides, rear, and exterior bottom
  • 1-1/4" front gas manifold and 1" rear gas connection
  • Four 16,000 BTU NAT (14,000 BTU LP) burners with two high/low control knobs
  • Removable cast-iron grates with adjustable front-to-back slope that flip over for either 1/8" or 1/4" grid width
  • 24" wide sectional range with full-width charbroiler available with a cabinet base or as a modular unit (for mounting on countertop, refrigerated or freezer base)
Standard Features of Cabinet-Base Model
  • Stainless steel cabinet with removable doors that open from the center
Options & Accessories
  • Plated fish grids
  • 24" or 36" high flue riser
  • External pressure regulator
  • Casters (front two casters lock)
  • Removable shelf inside cabinet
  • Extra-deep rear-extending flue riser
  • Open-frame base with casters for battery
  • Cable restraint kit (to restrict movement when on casters)
  • Front rail options:
    • Cutouts in front rail for saucepans
    • 7-1/4" deep front rail (to match old style sectional)
    • Square belly bar mounted on 7-1/4" deep front rail
Standard Construction Specifications
Exterior Finish: Front, sides, rear, and exterior bottom constructed of #3 polished 430 and 304 stainless steel. Range: 24"-wide front-manifold sectional range with 64,000 BTU NAT (56,000 BTU LP) full-width charbroiler with removable cast iron grates and operating surface temperature of up to 600°F (315°C). Front Rail: 9-1/4" deep front rail. Flue Riser: 5" high stainless steel flue riser. Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold). Legs: 6" stainless steel adjustable legs standard. Model 24C: Stainless steel cabinet base with two removable doors that open from the center.
Options
Charbroiler options
Continuous front rail & belly bar
Range depth
Spreaders
Gas types
Prison options
Factory note
Stainless steel options
Standard warranty
Extended warranty
Accessories
Mounting options
Specifications
BTU 64,000 BTU
Total BTU16000 - 130000
Number of Burners3 - 5
Installation TypeFreestanding
Burner StyleGrates
Range Base StyleStorage Base
BrandSouthbend
CertificationsNSF
Control TypeManual
HeatGas
Number of OvensNone
Width (in)24
Height (in)41
Depth (in)37.5
Weight330.00
