Vulcan 4ER50CF (4) 50 lb. Full Frypots Electric Floor Fryer with Computer Controls and KleenScreen PLUS® Filter System, 208 Volts
Energy Star ?Chat Now
Calculate
Vulcan 4ER50CF Specifications
| Number of Fry Pots | 4 |
|---|---|
| Control Type | Computer |
| Plug Type | Hardwire |
| Filtration System | KleenScreen PLUSВ® Filter System |
| Burner Style | Ribbon |
| Cabinet | Stainless Steel |
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Made in | USA |
| Certifications | NSF |
| Capacity | (4) 50 lb. Frypots |
| Heat | Electric |
| Voltage | 208 Volts |
| Wattage | 68.0 Kilowatts |
| Width (in) | 62 |
| Height (in) | 36.25 |
| Depth (in) | 34.38 |
| Weight | 927.00 |
Additional Information on Vulcan 4ER50CF
fry-tank-warranty.pdf
computer-control-brochure.pdf
parts-catalog.pdf
warranty.pdf
parts-list.pdf
service-manual.pdf

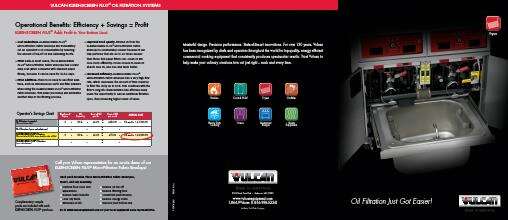

brochure.pdf
owner-s-manual.pdf
warranty-sheet.pdf
vulcan-4er50cf.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 4ER50CF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 4ER50CF Description
For restaurants that use electric equipment and need to do a lot of frying the 4ER50CF from Vulcan is a great option that offers four 50 lbs capacity fry tanks and built-in filtration. The Commercial Deep Fryers in this battery are ENERGY STAR® qualified. The Floor Model Electric Fryers from Vulcan are designed for ease of use and durability, each one is built to last to serve for several years in a busy commercial kitchen.
The fry tanks are made from durable 16 gauge stainless steel and the frying oil in them is heated with 17 kW ribbon style heating elements with low watt density.
The computer controls on this fryer make it extremely easy to get consistent results with up to 10 menu items. The system is easy to update with a USB drive making updating and tweaking settings simple to deploy to multiple fryers. The product name and cook times are shown on the digital display letting users know that they have selected the right menu item. The temperature can be accurately controlled between 200° and 390°F with fast recovery. This fryer features multiple fat melt modes, fast recovery, and boil out mode making it simple to use.
To maintain the quality of the oil for extended periods, this fryer system has the KleenScreen PLUS® filtration system that utilizes a stainless steel mesh filter. The filtration system is kept inside an 18 gauge stainless steel filter vessel and particles down to .5 microns can be filtered out with the use of optional KleenScreen PLUS® filter envelopes. Filtration is done as quickly as possible with a ⅓ HP motor that circulates oil at a rate of 8 GPM.
The cabinet and fry tank are made from stainless steel for durability while making it easy to clean. Included with this fryer are adjustable 6” legs to keep it level and twin fry baskets with plastic coated handles.
- High limit control.
- 208 volt, 3 phase.
- Stainless steel cabinet.
- Multiple fat melt modes.
- Set of four 6" adjustable legs.
- 1 1⁄4" full port ball type drain valve.
- Ten year limited fry tank warranty.
- One year limited parts and labor warranty.
- Twin fry baskets with plastic coated handles.
- 16 gauge stainless steel fry tank, 50 lb. capacity.
- 17 kW low watt density ribbon style heating elements.
- 1ER50A - Solid state knob control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery.
- 1ER50D - Solid state digital read temperature control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery and boil out mode and two countdown timers.
- 1ER50C - Computer control digital read temperature control. Accurate temperature control 200°F to 390°F within +/- 2°. Multiple fat melt modes, fast recovery and boil out mode. Ten programmable product keys and ten countdown timers. Secondary and advanced programming options.
- Second year extended limited parts and labor warranty.
- 480 volt, 3 phase. (Separate 120 volt, 20 amp electric supply required.)
- Frymate™ VX15S Dump Station
- Set of four 6" adjustable casters (2 locking)
- 10" high stainless steel removable splash guard
- Large Single Fry Basket – 13"w x 13 1⁄4"d x 5 1⁄2"h
- Extra set of Twin Fry Baskets – 6 1⁄2"w x 13 1⁄4"d x 6"h
- Stainless Steel Tank Cover – doubles as a work surface top
- Connecting Kit(s) – connect two fryers together (banking strip, brackets and hardware)
- 15 1⁄2"w x 34 1⁄8"d x 41 1⁄16"h. working height is 36 1⁄4".
Electric deep fat fryer, Vulcan-Hart Model No. 1ER50A: Solid state analog knob, 1ER50D: Solid state digital, 1ER50C: Computer temperature controls are adjustable from 200°F to 390°F and multiple fat melt cycles and high limit control. Stainless steel cabinet with four 6" adjustable legs. 16 gauge stainless steel fry tank holds 50 lbs. of frying compound. 1 1⁄4" full port ball type drain valve. 17kW low watt density ribbon style heating elements. Twin fry baskets. Power supply is 208 volt, 50/60 Hz, 3 phase. NSF listed. CSA design certified. Specify voltage when ordering.
