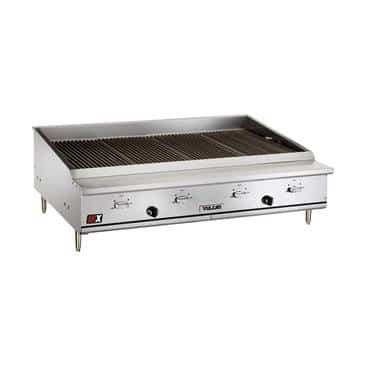

Vulcan VTEC60 58.38" Gas Countertop Standard Duty Infrared Charbroiler with Manual Control - 110,000 BTU
MPN#: VTEC60
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Vulcan VTEC60 Accessories
Vulcan LEGS-GRD6 6" Legs
$590.00
Vulcan PLTRAIL-VTEC60 Plate Rail
$802.00
Vulcan STAND/C-60 Equipment Stand
$2,985.00
Vulcan CUTBD-VTEC60 Cutting Board
$2,125.00
Description
Vulcan VTEC60 Description
IRX™ Infrared Charbroiler, gas, countertop, 58-1/2", (5) 22,000 BTU burner, manual control, piezo ignition, crumb tray, stainless steel cooking grids, sides, control panel, top trim, removable heat shield & backsplash, 4" adjustable legs, 110,000 BTU, CSA, NSF
IRX™ Infrared Charbroiler, gas, countertop, 58-1/2", (5) 22,000 BTU burner, manual control, piezo ignition, crumb tray, stainless steel cooking grids, sides, control panel, top trim, removable heat shield & backsplash, 4" adjustable legs, 110,000 BTU, CSA, NSF, Commercial Charbroilers
Standard Features:
- 4" Adjustable legs
- Chrome burner control knobs
- Direct ignition piezo spark igniters
- Heavy duty steel infrared emitter panels
- Full width, stainless steel front crumb tray
- One year limited parts and labor warranty
- One high range heat control valve for each burner
- Removable, stainless steel heat shield and splash guard
- Stainless steel sides, control panel, top trim and backsplash
- 3⁄4" NPT rear gas connection and gas pressure regulator provided
- Energy efficient 22,000 BTU/hr., patented infrared burner system in each cooking zone
- 11" x 25" stainless steel cooking grids (providing 275 square inches of cooking area in each burner zone)
- 1 replacement emitter panel standard with VTEC14, 2 replacement emitter panels standard for VTEC25 and larger.
- Ordered separately and field installed
- Stainless steel stand with undershelf and casters.
- Stainless steel “Fish Grates” with smaller, 1⁄4" rib spacing.
High efficiency gas infrared charbroiler. Stainless steel front, sides and top trim. Full width, stainless steel front crumb tray. Heavy duty, steel infrared emitter panels. 11" x 25" stainless steel cooking grids. One 22,000 BTU/hr. patented infrared burner system for each cooking grid. Direct ignition piezo spark igniters. One high range heat control valve for each burner. Chrome burner knobs. 4" adjustable legs. 3⁄4" NPT rear gas connection and gas pressure regulator. CSA design certified. NSF listed.
Q & A
Videos
NOTE! This is a general product line video and does not necessarily reflect the listed model.
Vulcan VTEC60 Specifications
| Total BTU | 105000 - 156000 |
|---|---|
| Installation Type | Countertop |
| Burner Style | Grates |
| Heating Source | Infrared |
| Power Type | Natural or Propane Gas |
| With Griddle | No |
| Brand | Vulcan |
| Made in | USA |
| Certifications | NSF |
| Number of Burners | 5 |
| Control Type | Manual |
| Exterior Finish | Stainless Steel |
| BTU | 110,000 BTU |
| BTU per Burner | 22,000 BTU, 22,000 |
| Category | Char Broilers & Outdoor Grills |
| Heat | Gas |
| Range Configuration | Burners |
| Usage | Standard Duty |
| Width (in) | 58.38 |
| Height (in) | 16.38 |
| Depth (in) | 35.13 |
| Weight | 309.00 |
Additional Information on Vulcan VTEC60
Vulcan VTEC60 Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
