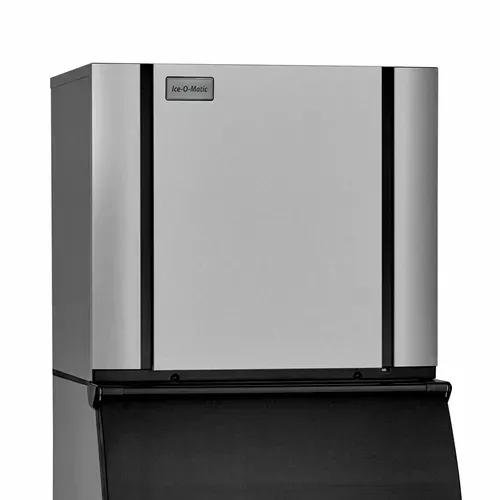

ICE-O-Matic CIM1136FR 30.25" Full-Dice Ice Maker, Cube-Style - 900-1000 lbs/24 Hr Ice Production, Air-Cooled, 208-230 Volts
Calculate
- Exclusive offer: 50% OFF (already discounted price) Ice-O-Matic matching filter.
- 7 Year evaporator warranty w/filter purchase (see below)
- Reduce service calls by up to 65%
- Better tasting ice
- 2023 model, meets the newest EPA and DOE codes.
ICE-O-Matic CIM1136FR Specifications
| Type of Cooling | Air-Cooled |
|---|---|
| 24 Hr Production | 900-1000 lbs |
| Type of Ice | Full-Dice |
| Brand | Ice-O-Matic |
| Made in | USA |
| Certifications | CE |
| Vendor | Ice-O-Matic |
| Condenser | Remote |
| Type | Ice Machines |
| Voltage | 208-230 Volts |
| Width (in) | 30.25 |
| Height (in) | 26.9 |
| Depth (in) | 24.25 |
| Weight | 235.00 |
Additional Information on ICE-O-Matic CIM1136FR
owner-s-manual.pdf
slope-front-storage-bins.pdf
service-manual.pdf
ice-o-matic-cim1136fr.specsheet.pdf
warranty-sheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
ICE-O-Matic CIM1136FR Certifications
CE
The product complies with the essential requirements of the relevant European health, safety and environmental protection legislations.
cULus
UL (Underwriters Laboratories) approval for the US and Canada
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
ICE-O-Matic CIM1136FR Description
This Ice-O-Matic Ice Machine is a Elevation Series Modular Cube Ice Maker that is a full-dice producing remotely cooled unit capable of a maximum 24-hour output of 968 lbs. This Ice Machine is configured for use with 208-230v/60/1-ph power and it draws 12.8 amps of power. When this unit produces 100 lbs of ice it uses 5.0 kWh of power and 19 gallons of potable water. This unit should be paired with an RCA-2061 remote condenser unit.
The simple one-touch controls inside this unit make descaling and sanitization tasks easy and the Smart LED light will indicate when these tasks need to be undertaken.
The BPA Free Plastic Food Zone within this unit is easy to wipe down for superior sanitation. When these parts require servicing or deep cleaning they can be easily removed without any tools and placed into a dishwasher. The sanitation of this ice maker is further enhanced with the inclusion of built-in Agion® to prevent microbial growth.
Ice-O-Matic Ice Machines provides crystal-clear ice with a full line of cubers, flakers and the patented Pearl Ice Machine. A premier manufacturer, distributor and supplier of commercial ice machines & ice machine head only.
- 30.25" (768 mm) wide space-saving design.
- Produces up to 1035 lbs (469 kg) of ice per day.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Energy and Environment
- Up to 20% more energy efficient than other models.
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Environmentally friendly, including BPA-free plastic and recyclable parts.
- Sanitation
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
ICE-O-Matic CIM1136FR Accessories
SKU#: CIM1136FR_1935
