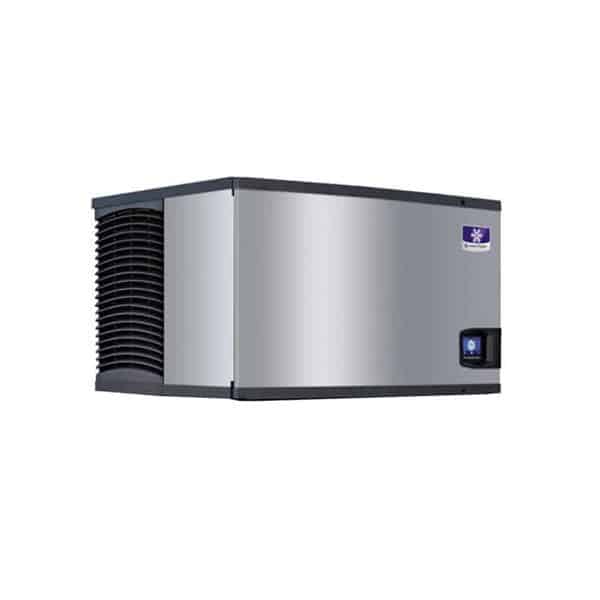

Manitowoc IDT1500A 48" Full-Dice Ice Maker, Cube-Style - 1500-2000 lbs/24 Hr Ice Production, Air-Cooled, 208-230 Volts

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 48"W x 24"D x 29-1/2"H, production capacity up to 1688 lb/24 hours at 70°/50° (1350 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Specifically designed to handle large ice-making demands, the 48" wide IDT-1500A air-cooled ice machine from the Indigo NXT™ series by Manitowoc Ice has a daily production capacity of 1,688 lbs of full dice ice. This commercial ice machine is engineered to produce 9% more ice compared to older models using 9% less condenser water and 6% less energy.

This cubes ice maker runs preventative maintenance and self-diagnosis regularly on its own to avoid unexpected failure during use. Its new icon-based EasyTouch display connects you to everything you need to operate this unit! From here, you can initiate various ice-making tasks, receive cleaning alerts, and access diagnostic reports for potential issues. This full-dice ice machine also allows you to adjust the volume of ice to produce while the acoustical ice-sensing technology works to make sure you can harvest a consistent amount of ice with cubes that have the same density and thickness.

This is an ice machine head only unit with a DuraTech exterior that is easy to scrub clean, but hard to rust and corrode. The exposed parts of the foodzone are coated with AlphaSan antimicrobial protection so they stay cleaner for longer. You can also install the LuminIce II Growth Inhibitor (sold separately) so you won’t have to worry about bacteria and yeast growth sullying the ice in your foodzone. This Indigo Series ice machine is compatible with excellent accessories including the ChillTech heat exchange system designed to help increase your yield.

Installs without hassle

• An air-cooled system is supported in most locations and commercial buildings
• Uses air to move heat out of the machine at no additional water costs
• Self-contained condenser for plug-and-play use!

Minimizes manual labor

• 2.5" EasyTouch Display provides touchscreen access to a litany of ice-making features, preference settings, asset info, and maintenance support
• Provides a clear view of production status right from the homescreen
• Can be set up to alarm at desired cleaning time
• Gives detailed cleaning instructions to make sure every maintenance session counts
• Runs preventative maintenance every 24 hours and immediately informs operators of potential issues complete with info
• Acoustical ice-sensing probe freezes dice ice cubes to uniform thickness and powers through challenging water conditions
• Ice programming feature allows operators to adjust their ice output for the day according to demands to avoid waste and unnecessary extra expenses

Boosts water and energy savings

• Uses 6% less energy than standard models and increases ice production by 9%
• Configurable shut-down times to manage peak electrical rates
• Cools using a CFC-free and ozone-friendly R410A refrigerant

Solidly built and a breeze to maintain

• DuraTech™ boasts superior resistance to corrosion
• Anti-scratch and anti-fingerprint clear-coat layer
• Front evaporator access and removable water-trough, distribution tube, curtain, and sensing probes
• AlphaSan® on refrigeration parts where ice and water go through destroys microorganisms
• LuminIce® Growth Inhibitor (available separately) runs quietly 24 hours a day recirculates air over a UV light to wipe out bacteria and yeast build-up on exposed foodzone parts

Why dice ice?

• Dimensions: 3/8" x 1 1/8" x 7/8"
• 96 cubes per pound of ice
• Nearly 100% ice-to-water ratio achieves maximum cooling
• Makes for fast and inexpensive production
• Thaws out slowly for a prolonged cooling effect and decreased ice consumption
• Blender-friendly

Standard Features:

• Production: Up to 1,688 lbs. of regular dice ice every 24 hours
• Ambient Temperature Range: 40-110 ̊F
• Overall Dimensions: 48"W x 24"D x 29 1/2"H
• Electrical Connection: 208-230/60/1 standard (208-230/60/3 also available)
• Minimum Circuit Ampacity: 18.5 1ph/12.8 3ph
• Maximum Fuse Size: 30 1ph/20 3ph
• BTUH: 23,000 (average), and 27,000 (peak)
• Safety Certifications: NSF, cULus, CE
• Performance Certification: AHRI at 90°/70°



• Intelligent Diagnostics - Provides 24 hour preventative maintenance and diagnostic feedback for trouble free operation.
• easyTouch® Display - New icon based touch screen takes the guess work out of owning and operating an ice machine.
• Acoustical Ice Sensing Probe - Unique patented technology allows for reliable operation in challenging water conditions and environments.
• DuraTech® Exterior - Provides superior corrosion resistant above stainless steel. Innovative clear-coat resists fingerprints and dirt making it easier to keep clean.
• Easy to Clean Foodzone - Easy Access front door panel. Removable water-trough, distribution tube, curtain, and sensing probes for fast and efficient cleaning. Select components made with AlphaSan® antimicrobial.
• Available LuminIce® II Growth Inhibitor - Controls the growth of bacteria and yeast within the Food zone keeping the machine cleaner longer. A new indicator in the display keeps you abreast of the operational status.
• Programmable Ice Production - Now its super easy to program your ice machine to be off at certain times of the day to save money with fluctuating electrical rates. Also programmable by daily ice production volume.
• New levels of Performance - Showcasing an average of 6% lower energy consumption, up to 9% increase in ice production and a 9% reduction in condenser water usage. This translates into lower cost of ownership over the life of your machine.

• Refrigerant: R-410 CFC-free
• BTU Per Hour: 23,000 (average) and 27,000 (peak)

• Dice 7⁄8" x 7⁄8" x 7⁄8" (2.22 x 2.22 x 2.22 cm)
• Half Dice 3⁄8" x 1 1⁄8" x 7⁄8" (.95 x 2.86 x 2.22 cm)
• Regular 1 1⁄8" x 1 1⁄8" x 7⁄8" (2.86 x 2.86 x 2.22 cm)

• iAuCS® - schedules and performs routine ice machine cleaning automatically
• Arctic Pure® Water Filters - reduces sediment and chlorine odors for better tasting ice.
• External Scoop holder - protect the ice scoop with the NSF approved versatile scoop holder.
• LuminIce® II Growth Inhibitor - reduces yeast and bacteria growth for a cleaner ice machine.
