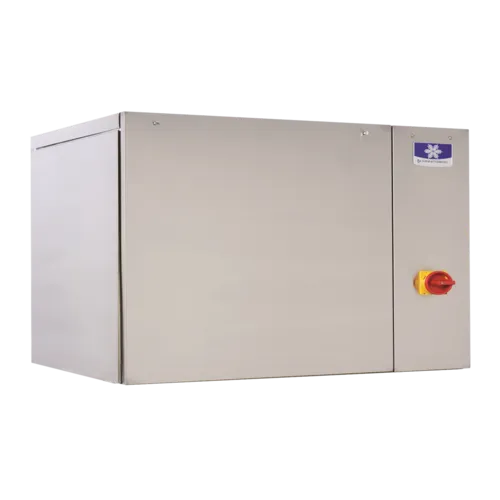

Manitowoc IYT1900WM 48" Indigo NXT Marine Half-Dice Ice Machine, 1,740 lb/24 Hr, Water-Cooled

Description

Manitowoc IYT1900WM Description

Indigo NXT™ Series Marine Ice Maker, cube-style, water-cooled, self-contained condenser, 48"W x 24"D x 29-1/2"H, production capacity up to 1740 lb/24 hours at 70°/50° (1550 lb AHRI certified at 90°70°, isolation switch, removable top cover, back & sides, stainless steel bulkhead, stainless steel exterior, half-dice size cubes, R410 refrigerant, NSF, cULus

The Manitowoc IYT-1900WM Marine water-cooled ice machine from the renowned Indigo NXT line can produce up to 1,930 lbs of half-dice ice cubes on a yacht or similar locations with unique engineering requirements. This cubes ice maker is optimized for enhanced performance compared to units in its category, reducing condenser water consumption by 23 % and potable water usage by 10% while running on 10 - 15 % less energy.

With high-grade stainless steel construction from the panels, bulkhead, fasteners, and brackets, this commercial ice machine will perform well in heavy applications and challenging conditions. This Manitowoc Ice unit is self-contained and is sealed from the front, top, bottom, and sides. With a cupro-nickel condenser in tow, there’s no need to worry about saltwater damage.

This Indigo Series ice machine automatically shifts into cleaning mode and returns to ice production without manual operator input. An isolation switch gives you control of the main power so you can immediately cut it off the unit when needed, such as when it’s time for some electrical work or service.

The Manitowoc IYT-1900WM is an ice machine head only unit with NSF and cULus certifications. Consider our recommended accessories below to further streamline your ice production.

Increased performance levels

• 23% reduction in condenser water usage
• 10% reduction in potable water usage
• 10-15% less energy consumption

Reduced labor expenses

• Transitions into cleaning mode and goes back to making ice without any manual input
• Isolation switch installed on the side for mechanical control of the main power

Why half-dice ice?

• Dimensions: 3/8" x 1 1/8" x 7/8"
• 96 rhomboid-shaped cubes per pound of ice
• High ice-to-water ratio for maximum cooling
• Cheaper and quick to produce
• Melts slower than most ice
• Great for a variety of applications - drinks, bulk cooling, ice bagging and more
• Easy to process in blenders and crushers

Specifications:

• Production: Up to 1,930 lbs of half-dice ice every 24 hours
• Ambient Temperature Range: 40-110  °F
• Water Temperature Range for Potable Water: 40-90  °F
• Water Pressure Ice Maker Water In: 20 psi (137.9 kPA) to 80 psi (551.1 kPA)
• Condenser Inlet Water In: 20 psi (137.9 kPA) to 150 psi (1,034.2 kPA)
• Refrigerant: CFC-Free R404A
• Commercial Ice Machine Head Only
• Overall Dimensions: 47" x 24 1/2" x 29 1/2"
• Electrical Connection: 208-230/60/1 available
• Minimum Circuit Ampacity: 16.5/1ph, 12.8/3ph
• Maximum Fuse Size: 25 amps/1ph, 20 amps/3ph
• BTUH: 26,100 (average) 30,500 (Peak)
• Safety Certifications: NSF, cULus
• AHRI Certification at 90°/70°

The IYT1900WM is the marine build of the 48" Indigo NXT half-dice head: 48"W x 24"D x 29-1/2"H, water-cooled with a self-contained condenser, rated up to 1,740 lb per 24 hours at 70°/50° and 1,550 lb AHRI certified at 90°/70°. Plan the installation around 1,550 lb, which is what the machine will actually deliver in a working galley.

What separates the marine variant from the standard IYT1900W is construction rather than output. The bulkhead, panels, fasteners and brackets are stainless throughout, the cabinet is sealed on all sides, and the top cover, back and sides come off for service. That specification is aimed squarely at salt air and constant vibration, which is why the marine unit certifies lower than the shore version of the same cabinet — the engineering priority is survival, not the headline number.

An isolation switch lets an engineer kill main power at the unit before any electrical work, and the machine steps into cleaning mode and back into production without an operator standing over it. Half-dice at 96 cubes per pound packs densely into a bin and melts slowly, which matters when bin space is tight. Head only, NSF and cULus listed; matching bins and filtration sit with the other Manitowoc ice machines at CKitchen.
