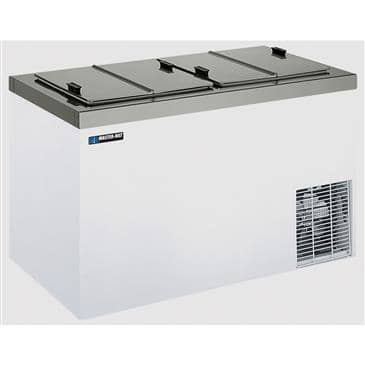

Master-Bilt Products DC-8D Ice Cream Dipping Cabinet

Made in USA
Master-Bilt Products DC-8D Ice Cream Dipping Cabinet
Free Freight
Retail Price $3,078
Price $2,430

FINANCEFOR $60.94/mo.

Number of Gallon3 gallon
Made inUSA
Interior FinishGalvanized
Exterior FinishGalvanized Steel
Temperature Range10 to -10 F
Width (in)54.00
Height (in)34.13
Depth (in)30.13
You May Also Need
A060-20400 Dipper Well
A043-11129 Lid Locking Kit
44-00471 Lids
A039-11140 Casters
A039-11170 Leg Kit

Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Ice Cream Dipping Cabinet, dip (11) 3 gallon, store (8) 3 gallon, cold-wall evaporator, painted textured galvanized steel exterior, galvanized steel interior, stainless steel top with anti-condensate heater, flip lid, temperature range 10 to -10F, 1/3 hp, 115v/60/1-ph, 7.3 amps, 9' cord, NEMA 5-15P, cULus, NSF

Standard Features:
  • Construction:
    • Gasket
    • Stainless steel
    • Hinged with handles
    • Galvanized steel interior
    • Seamless stainless steel top
    • Floor drain with garden hose fitting
    • Anti-condensate heaters under stainless top cap
    • 24 gauge painted textured galvanized steel cabinet
    • Galvanized steel inner liner with cold wall evaporator
    • 21/4" foamed-in-place “zero ODP” urethane insulation LIDS
    • Equipped with leveling legs to correct for unlevel flooring situations
  • Refrigeration:
    • R-factor (insulation efficiency rating): 19.40
    • Temperature range: 10° to -10°F (-12° to -23°C)
    • Self-contained, factory tested refrigeration system
    • Refrigerant: DC-12D - R-404A, All other models - R-134a
    • Minimum 4" clearance required between cabinet back and wall
    • Force draft hermetic condensing unit (semi-hermetic unit on DC-12D with wire and tube condenser for low maintenance)
  • Standard limited two year parts and labor
  • Additional three year coverage on compressor part
  • Legs
  • Casters
  • Lid locks
  • Dipper well
  • Additional lids
  • Custom colors
  • Load level shelves
  • Add suffix “SE” for all stainless exterior
Cabinet will feature textured finish on exterior with galvanized steel interior. Cabinet to have flip lids, seamless stainless steel top, 24 gauge steel walls, galvanized steel inner liner with cold wall evaporator, anti-condensate heaters under stainless steel top, 21/4" foamed-in-place “zero ODP” urethane insulation and baked-on polyester enamel finish. Standard leveling legs provided to correct for unlevel flooring situations. The refrigeration system will be self-contained. DC-12D will contain R-404A refrigerant and all other models will contain R-134a. The temperature range will be 10° to -10°F (-12° to -23°C). Cabinet to have standard limited two year parts and labor with additional three year coverage on compressor part. Cabinet to be UL, C-UL (on all except DC-12D) and NSF listed.

Finish options (exterior) - PLEASE CHOOSE ONE
Compressor warranty
What is included
  • Compressor warranty: Five year compressor part warranty
  • Warranty: Two year parts and labor warranty
