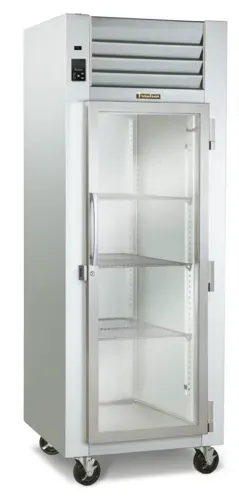

Traulsen AHT132DUT-HHG 24'' 17.7 cu. ft. Top Mounted 1 Section Glass Half Door Reach-In Refrigerator

Traulsen AHT132DUT-HHG 24'' 17.7 cu. ft. Top Mounted 1 Section Glass Half Door Reach-In Refrigerator

AHT132DUT-HHG
Stock Status
Updating. Please wait...
Free Freight
$15,287.58

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

$14,592.69

Contact us for your price

Call 1 (800) 555-0666
Mon-Fri 9AM-8PM, Sun 12-6PM ET

Why don't we show the price for this item?

You will earn 15288 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$313.60
* The above amount may vary depending on the applicant's credit history.
  • 2023 model, meets the newest EPA and DOE codes.
  • Usually ships in 4-6 weeks

Traulsen AHT132DUT-HHG Specifications

Refrigerator Capacity17.7 cu. ft.
Amps8 Amps
Door SizeHalf
Hinge LocationLeft
ConstructionStainless Steel and Aluminum
Half DoorsYes
BrandTraulsen
Refrigerant TypeR-134A
CertificationscULus
Split DoorsYes
Number of Doors2
Interior FinishAluminum
Number of Shelves3
TypeReach In
Refrigeration SystemSelf-contained
Capacity11 - 30 cu. ft.
Compressor LocationTop Mounted
Door TypeGlass
Door DesignSwing
MaterialAluminium
Sections1
Temperature Range34 - 38 Degrees F
Voltage115 Volts
Width (in)24
Height (in)83.25
Depth (in)35
Weight380

Traulsen AHT132DUT-HHG Certifications

cULus

cULus

UL (Underwriters Laboratories) approval for the US and Canada

NSF

NSF

This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.

Traulsen AHT132DUT-HHG Description

Spec-Line Refrigerator, Reach-in Display, 24" wide, 17.7 cu. ft., self-contained refrigeration, stainless steel exterior, aluminum interior, standard depth, glass half-height doors, interior lights, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, 1/3 HP, cULus, NSF
Spec-Line Refrigerator, Reach-in Display, 24" wide, 17.7 cu. ft., self-contained refrigeration, stainless steel exterior, aluminum interior, standard depth, glass half-height doors, interior lights, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, 1/3 HP, cULus, NSF

Standard Features:
The R & A Series represent Traulsen's Top-of-the-Line product offering. These "D-Width" reach-in refrigerator models are equipped with hinged glass doors in order to maximize product visibility. Each is supplied standard with such high-quality features as balanced refrigeration systems, microprocessor controls, communications ability, and stainless steel exteriors. Additionally, they offer the widest range of optional accessories to choose from, and can be specified for use with many different applications, including: Foodservice, Correctional, Institutional, Export, etc.
  • Biased Return Air Duct
  • 9' Cord & Plug Attached
  • Stainless Steel Breaker Caps
  • Five Year Compressor Warranty
  • Scroll Blower Type Evaporator Fan
  • Guaranteed For Life Cam-Lift Hinges
  • Three Year Parts And Labor Warranty
  • Stainless Steel Vertical Door Handle(s)
  • Incandescent Lights With Exterior Switch
  • R-Series: Stainless Steel Exterior & Interior
  • Magnetic Snap-In EZ-Clean Door Gasket(s)
  • Stainless Steel One-Piece Louver Assembly
  • Automatic Non-Electric Condensate Evaporator
  • Thermostatic Expansion Valve Metering Device
  • INTELA-TRAUL® Microprocessor Control System
  • Full or Half Length Hinged Glass Doors With Locks
  • Controllable Anti-Condensate Door Perimeter Heaters
  • Set of Four (4) 6" High Adjustable Stainless Steel Legs
  • Self-Closing Doors With Stay Open Feature At 120 Degrees
  • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
  • Balanced, Self-Contained Refrigeration System Using R-134a
  • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory)
  • Standard Door Hinging: 132D = Right, 232D = Left/Right, (other hingings not available for two-section models)
Options & Accessories:
  • Fluorescent Lights
  • Export 220/50/1 Voltage
  • Kool Klad Exterior Laminate Decor
  • Set of Four (4) 6" High Casters In Lieu of Legs
  • 4-1/2" High Stainless Steel Base In Lieu of Legs
  • Stainless Steel Finished Back With Rear Louvers
  • 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
  • Set of Four (4) 4-5/8" High Casters In Lieu of Legs
  • Remote Applications (see spec sheet TR35837 for details)
  • 6" High Stainless Steel Kickplate (for use with standard legs)
  • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans
  • Please Note: Tray slides are not available for these models when ordered with optional fluorescent lighting.
Specifications:
Construction, Hardware, and Insulation
  • Cabinet exterior front, one-piece sides, and louver assembly are constructed of 20 gauge stainless steel with a #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back, and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with a stay-open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane.
Refrigeration System
  • A top-mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone, and a top-mounted non-electric condensate evaporator. Biased return air duct protects against the introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F.
Controller
  • The easy to use water-resistant INTELA-TRAUL® microprocessor control system is supplied standard. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition, it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Interior
  • Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory.
Warranties
  • Both a three-year parts and labor warranty and a five-year compressor warranty (self-contained models only) are provided standard.

Options for Traulsen AHT132DUT-HHG

Tray slides & shelves
Glycol system option
Locking devices
Correctional options
Options & accessories
Mounting options
What is included
  • Warranty: 6-year parts & labor and 7 year compressor, standard. Visit www.traulsen.com for details
Voltages
Door hinging

Features
Options & Accessories: • Stainless Steel Finished Back With Rear Louvers • Fluorescent Lights • No. 1 Type Tray Slides To Accommodate either (1) 18" x 26" or (2) 14" x 18" Pans • Export 220/50/1 Voltage • 208/115/60/1 Voltage In Lieu Of Standard 115/60/1 • Kool Klad Exterior Laminate Decor • Set of Four (4) 6" High Casters In Lieu of Legs • Set of Four (4) 4-5/8" High Casters In Lieu of Legs • 4-1/2" High Stainless Steel Base In Lieu of Legs • 6" High Stainless Steel Kickplate (for use with standard legs) • Remote Applications (see spec sheet TR35837 for details) • Remote Monitoring (monitoring supplied by E-Control)
Warranties: Both a three year parts and labor warranty and a five year compressor warranty (self-contained models only) are provided standard.
Controller: The easy to use water resistant INTELA-TRAUL® microprocessor control system is supplied standard. RS485 data port enables data communications for remote monitoring such as NAFEM Data Protocol, E-Control Systems® and others. It includes a 3-Digit LED Display and Fahrenheit or Celsius Temperature Scale Display Capability, In addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply Interruption.
Construction, Hardware and Insulation: Cabinet exterior front, one piece sides and louver assembly are constructed of 20 gauge stainless steel with #4 finish. Cabinet interior is constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabinet top, back and bottom are constructed of heavy gauge aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included. Doors are equipped with removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. An external switch is provided to activate the interior incandescent lighting. Gasket profile and Santoprene® material simplify cleaning and increase overall gasket life. Anti condensate heaters are located behind each door opening. The cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in place polyurethane
Interior: Standard interior arrangements include three (3) wire shelves per section, mounted on shelf pins. Shelves are full-width, and do not have any large gaps between them requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf should not exceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these. Standard interior arrangements are installed at the factory.
Standard Product Features: • R-Series: Stainless Steel Exterior & Interior • A-Series: Stainless Steel Exterior/Anodized Aluminum Interior • INTELA-TRAUL® Microprocessor Control System • Balanced, Self-Contained Refrigeration System Using R-134a • Scroll Blower Type Evaporator Fan • Biased Return Air Duct • Full or Half Length Hinged Glass Doors With Locks • Self-Closing Doors With Stay Open Feature At 120 Degrees • Guaranteed For Life Cam-Lift Hinges • Stainless Steel Vertical Door Handle(s) • Standard Door Hinging: 132D = Right, 232D = Left/Right, (other hingings not available for two-section models) • Incandescent Lights With Exterior Switch • Stainless Steel Breaker Caps • Three Adjustable Wire Shelves Per Section, Supported On Shelf Pins (installed at the factory) • Automatic Non-Electric Condensate Evaporator • Magnetic Snap-In EZ-Clean Door Gasket(s) • Controllable Anti-Condensate Door Perimeter Heaters • Thermostatic Expansion Valve Metering Device • Stainless Steel One-Piece Louver Assembly • 9' Cord & Plug Attached • Set of Four (4) 6" High Adjustable Stainless Steel Legs • Three Year Parts And Labor Warranty • Five Year Compressor Warranty
Refrigeration System: A top mounted, self-contained, balanced refrigeration system using R-134a refrigerant is conveniently located behind the one piece louver assembly. It features an easy to clean front facing condenser, thermostatic expansion valve, air-cooled hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil located outside the food zone and a top mounted non-electric condensate evaporator. Biased return air duct protects against introduction of warm kitchen air, promoting even temperature maintenance and efficient operation. A 9' cord and plug is provided. Standard operating temperature is 34 to 38°F
