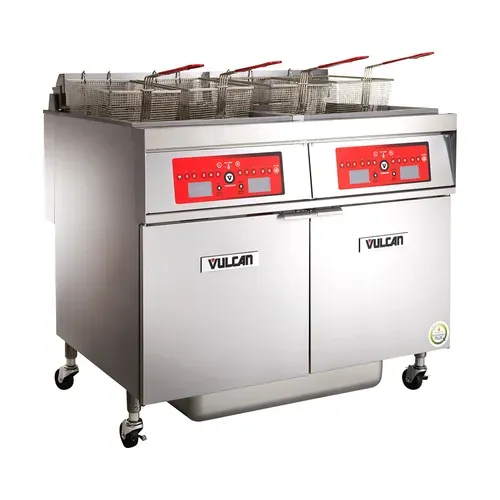

Vulcan 2ER50AF Two 50 lb. Full Frypots Electric Floor Fryer with Analog Controls and KleenScreen PLUS® Filter System, 208 Volts
Energy Star ?Chat Now
Calculate
Vulcan 2ER50AF Specifications
| Number of Fry Pots | 2 |
|---|---|
| Control Type | Analog |
| Plug Type | Hardwire |
| Filtration System | KleenScreen PLUSВ® Filter System |
| Burner Style | Ribbon |
| Cabinet | Stainless Steel |
| Brand | Vulcan |
| Energy Efficiency | Energy Star |
| Made in | USA |
| Certifications | NSF |
| Capacity | (2) 50 lb. Frypots |
| Heat | Electric |
| Voltage | 208 Volts |
| Wattage | 34.0 Kilowatts |
| Width (in) | 31 |
| Height (in) | 36.25 |
| Depth (in) | 34.38 |
| Weight | 530.00 |
Additional Information on Vulcan 2ER50AF
parts-catalog.pdf
fry-tank-warranty.pdf
parts-list.pdf
warranty.pdf
warranty-sheet.pdf
service-manual.pdf
vulcan-2er50af.specsheet.pdf
brochure.pdf
owner-s-manual.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 2ER50AF Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 2ER50AF Description
The Vulcan 2ER50AF Fryer is a great option for commercial kitchens using electric equipment and have multiple deep-fried items on the menu. This dual fryer system comes with 50 lbs capacity fry tanks and built-in filtration to keep downtime and operational costs to a minimum. These Commercial Deep Fryers feature ENERGY STAR® qualification. The Floor Model Electric Fryers in Vulcan’s lineup are extremely reliable and simple to use making them well suited for high demand use day in and day out.
The fry tanks in this fryer battery are made from 16 gauge stainless steel and the oil is evenly heated by 17 kW low watt density ribbon style heating elements.
The simple to use solid state analog knob protected behind the fryer's door allows for temperature control between 200° and 390°F. To make using this fryer simple it features multiple fat melt modes.
The stainless steel mesh KleenScreen PLUS® filtration system in this fryer system is housed inside an 18 gauge stainless steel filter vessel. For additional filtration efficiency optional KleenScreen PLUS® envelopes are available to filter out particles down to .5 microns. To make sure filtration is done as quickly as possible oil is circulated at a rate of 8 GPM by a ⅓ HP pump motor.
Stainless steel construction of the cabinet and fry tank make sure cleaning and maintenance is as easy as possible. The fryer is easy to keep level thanks to the adjustable 6” legs and a pair of twin fry baskets with plastic coated handles are included.
Standard Features:
- High limit control.
- 208 volt, 3 phase.
- Stainless steel cabinet.
- Multiple fat melt modes.
- Set of four 6" adjustable legs.
- Ten year limited fry tank warranty.
- 1 1⁄4" full port ball type drain valve.
- One year limited parts and labor warranty.
- Twin fry baskets with plastic coated handles.
- 16 gauge stainless steel fry tank, 50 lb. capacity.
- 17 kW low watt density ribbon style heating elements.
- Second year extended limited parts and labor warranty.
- 480 volt, 3 phase. (Separate 120 volt, 20 amp electric supply required.)
- Frymate™ VX15S Dump Station
- Set of four 6" adjustable casters (2 locking)
- 10" high stainless steel removable splash guard
- Large Single Fry Basket – 13"w x 13 1⁄4"d x 5 1⁄2"h
- Extra set of Twin Fry Baskets – 6 1⁄2"w x 13 1⁄4"d x 6"h
- Stainless Steel Tank Cover – doubles as a work surface top
- Connecting Kit(s) – connect two fryers together (banking strip, brackets and hardware)
Electric deep fat fryer, Vulcan-Hart Model No. 1ER50A: Solid state analog knob, 1ER50D: Solid state digital, 1ER50C: Computer temperature controls are adjustable from 200°F to 390°F and multiple fat melt cycles and high limit control. Stainless steel cabinet with four 6" adjustable legs. 16 gauge stainless steel fry tank holds 50 lbs. of frying compound. 1 1⁄4" full port ball type drain valve. 17kW low watt density ribbon style heating elements. Twin fry baskets. Power supply is 208 volt, 50/60 Hz, 3 phase. NSF listed. CSA design certified.
