Vulcan VGM18 V Series Heavy Duty Range
MPN#: VGM18

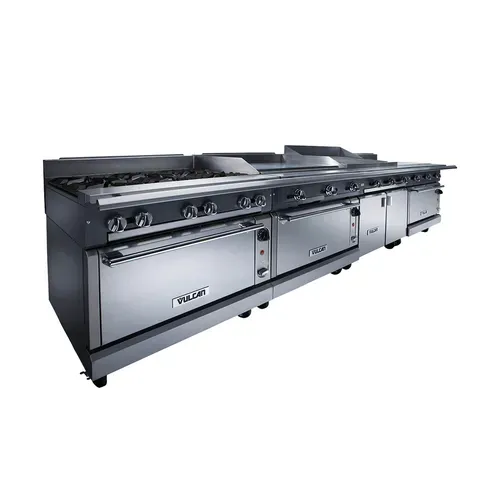

Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
- Please see specification sheet for installation clearance requirements
- Requires optional flue with back-splash or back-shelf.
- Additional required flue riser sold separately
Vulcan VGM18 Accessories
Vulcan STAND/F-VCCB36 Equipment Stand
$2,644.00
Vulcan STAND/F-VCCB48 Equipment Stand
$2,685.00
Vulcan STAND/F-VCCB60 Equipment Stand
$3,508.00
Vulcan STAND/F-VCCB72 Equipment Stand
$3,943.00
Vulcan STAND/C-VCCB36 Equipment Stand
$2,314.00
Vulcan STAND/C-VCCB48 Equipment Stand
$2,445.00
Vulcan STAND/C-VCCB60 Equipment Stand
$3,063.00
Vulcan STAND/C-VCCB72 Equipment Stand
$3,496.00
Vulcan WRENCH HDNEW Union wrench
$236.00
Vulcan VOVER-48ST Stub Riser
$1,245.00
Vulcan V18ST22 Single deck height riser
$1,005.00
Vulcan STAND/F-HD42 Equipment Stand
$2,227.00
Vulcan VOVER-54ST Stub Riser
$1,391.00
Vulcan V18ST34 Double deck height riser
$1,133.00
Vulcan V18SD Single deck hi-shelf riser
$1,357.00
Vulcan VOVER-60ST Stub Riser
$1,510.00
Vulcan VOVER-72ST Stub Riser
$1,787.00
Vulcan V18DD Double deck hi-shelf riser
$2,644.00
Vulcan STAND/F-HD54 Equipment Stand
$3,469.00
Vulcan FRTTOP-60WLD Front Top Ledge
$1,098.00
Vulcan STAND/C-HD42 Equipment Stand
$2,437.00
Vulcan FRTTOP-66WLD Front Top Ledge
$1,216.00
Vulcan FRTTOP-72WLD Front Top Ledge
$1,266.00
Vulcan STAND/C-HD54 Equipment Stand
$3,068.00
Vulcan FRTTOP-78WLD Front Top Ledge
$1,242.00
Vulcan FRTTOP-84WLD Front Top Ledge
$1,479.00
Vulcan FRTTOP-90WLD Front Top Ledge
$1,717.00
Vulcan FRTTOP-96WLD Front Top Ledge
$1,867.00
Vulcan FRTTOP-102WLD Front Top Ledge
$2,154.00
Vulcan FRTTOP-108WLD Front Top Ledge
$1,957.00
Description
Vulcan VGM18 Description
V Series Heavy Duty Range, gas, 18", modular, griddle, 3/4" thick polished steel plate, manual controls, individual pilots & controls, side splashes, stainless steel front, front top ledge, side, base, burner box & stub back, 4" flanged feet, 30,000 BTU, CSA Flame, CSA Star, NSF
V Series Heavy Duty Range, gas, 18", modular, griddle, 3/4" thick polished steel plate, manual controls, individual pilots & controls, side splashes, stainless steel front, front top ledge, side, base, burner box & stub back, 4" flanged feet, 30,000 BTU, CSA Flame, CSA Star, NSF, Commercial Gas Ranges
Standard Features:
- 4" high side splash
- 30,000 BTU/hr. burner
- 4" stainless steel stub riser
- 3⁄4" ground steel griddle plate
- Stainless steel cabinet base door
- One year limited parts and labor warranty
- Individual pilots and controls for each burner
- Universal rack guides, with one removable shelf (cabinet base)
- 1 1⁄4" diameter front gas manifold with 1 1⁄4" rear gas connection (capped)
- Stainless steel front, front top ledge, burner box, sides, base and stub back
- 6" adjustable stainless steel legs for “B” models (no legs for modular model)
- Cap and cover front manifold
- 4" adjustable flanged feet for modular models
- Less legs for dolly mounting of cabinet base models
- Universal rack guides, with one shelf (shelf is removable)
- 3" high toe base for curb mounting of cabinet base models
- Banking strip
- Set of 4 casters, 6" high (two locking)
- 10", 22", or 34" high back risers (no shelf)
- 22" single deck solid or flo-thru high shelf risers
- 34" double deck solid or flo-thru high shelf risers
- 6" adjustable flanged feet for cabinet base models
- Flexible gas hose with quick disconnect and restraining device
- 3⁄4", 1" or 1 1⁄4" gas pressure regulator (specify gas type – pack loose)
- Extra removable shelves for use with Universal rack guides (cabinet base)
Q & A
Videos
NOTE! This is a general product line video and does not necessarily reflect the listed model.
Vulcan VGM18 Specifications
| BTU | 30,000 BTU |
|---|---|
| Number of Burners | 1 - 2 |
| Total BTU | 16000 - 130000 |
| Burner Style | Griddle Top |
| Installation Type | Modular |
| Range Base Style | Modular Base |
| Brand | Vulcan |
| Made in | USA |
| Certifications | NSF |
| Control Type | Manual |
| Exterior Finish | Stainless Steel |
| Base | Modular |
| Controls | Manual |
| Category | Range 18" Heavy Duty, Gas |
| Heat | Gas |
| Number of Ovens | None |
| Range Configuration | Griddle |
| Width (in) | 18 |
| Height (in) | 13.75 |
| Depth (in) | 36.75 |
| Weight | 255.00 |
