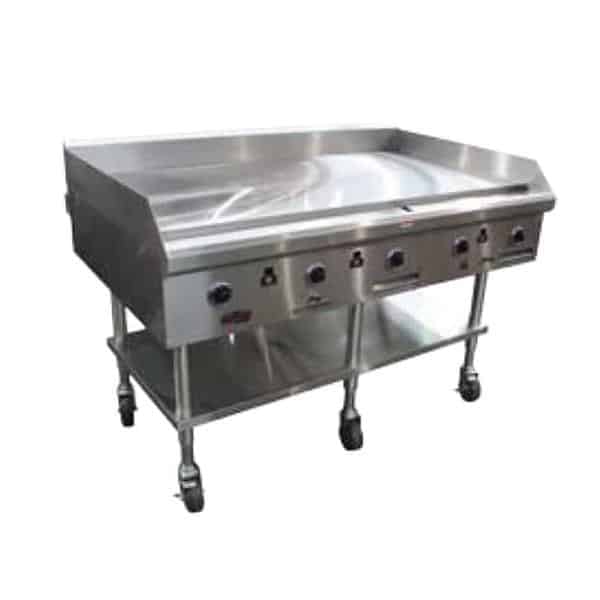

Southbend HDG-60-30 Griddle

HDG-60-30
Free Freight
Price $7,604.30

You will earn 5,615 Reward Points. Earn 1 reward point for every 1 dollar spent.
Read more.

FINANCEFOR $140.82/mo.



Specs
BrandSouthbend
Width (in)60.00
Height (in)16.13
Depth (in)37.80
Weight807.00
You May Also Need
Southbend 30048SB Freezer Base
$10,060
Southbend 30060SB Freezer Base
$11,285
Southbend 30064SB Freezer Base
$11,894
Southbend 30072SB Freezer Base
$12,187
Southbend 30084SB Freezer Base
$13,292
Southbend 30096SB Freezer Base
$13,801
Southbend 30108SB Freezer Base
$14,941


Additional Information

A PDF viewer is required to view this product's information.
Download Adobe Acrobat software

Description
Griddle, countertop, gas, 60" W x 30" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 150,000 BTU, CSA, NSF

Standard Features:
  • Protected flue opening
  • Electronic spark ignition (battery)
  • Grease drawers with large capacity
  • 5” high rear and 4” side splash guards
  • Reinforced, insulated double wall sides
  • Each burner equipped with runner tube
  • 1” thick polished rolled steel plate, 30” deep
  • 3/4” rear gas connection and pressure regulator
  • Fully welded griddle plate with protected exhaust vent
  • 30,000 BTU (NAT or LP) burner per 12” Thermostatic Models
  • Exclusive “NO COLD” Zone - Uniform heat distribution across  surface
  • Stainless steel front, vent and sides are standard, rear and bottom panels are aluminized steel.
Standard Features of Thermostatic Griddle Models
  • Flame failure safety device
  • Embedded load sensing thermostat
  • “Instant-on” thermostatic controls for precise settings between 200°F and 400°F
Options & Accessories
  • Casters for stand
  • Stainless steel stand
  • Grooved griddle plates
  • Chrome plated griddle plates
  • Stainless steel plate shelf with or without cutting board
  • 2” high insulator base for mounting on refrigerated base
Standard Construction Specifications
Exterior Finish: Front, sides and vent are constructed of #3 polished 430 and 304 stainless steel. Bottom and rear are aluminized steel. Sides are reinforced and fully insulated. 5” rear and 4” side splash. Griddle Plate: 48” and 60” wide by 30” deep cooking surface with one 30,000 BTU (NAT or LP) burners every 12” on thermostatic models and one 20,000 BTU (NAT or LP) burners every 12” on manual models. Fully welded, 1” thick polished steel griddle plate with side splash guards, and grease drawer. Griddle Controls: Independent, “Insta-on” thermostatic controls with uniform temperature range of 200°F to 400°F. (Thermostatic models ONLY). Casters: 4” casters for stand. Gas Heat Control System: Each foot of griddle is heated by a “U” shaped burner. Each burner is controlled by a thermostatic control. For safety, each pilot has a flame failure device. A 3/4” rear gas connection is standard. Units over 48” wide are constructed of two bodies. (Thermostatic models ONLY)
Options
Griddle controls
Filler strip
Grooving or chrome options
Correctional & prison options
Rear trough
Gas types
Standard warranty
Extended warranty
