  • 2023 model, meets the newest EPA and DOE codes.

Nor-Lake KLF87810-C Specifications

SeriesKold Locker
Gauge26 Gauge
CategoryWalk In Freezer, Modular, Self-Contained
Compressor LocationCeiling Mounted/Wall Mounted
With FloorFloorless
Width (in)96
Height (in)103
Depth (in)120

Nor-Lake KLF87810-C Description

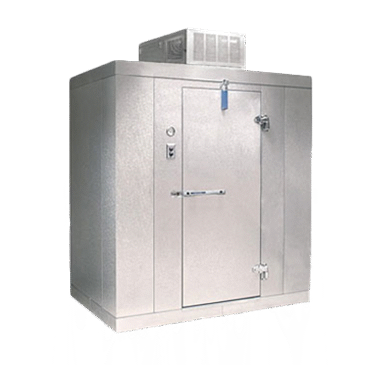

Kold Locker™, Indoor -10°F Freezer, 8' x 10' x 8'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, CPF150PC-S-4, R290 Capsule Pak Refrigeration, 208-230v/60/1-ph

If your business needs to reliably and efficiently handle and store frozen goods in bulk, a walk-in freezer like the KLF87810-C 8' x 10' x 8'-7" H Kold Locker from Nor-Lake is a solid investment.

Both the interior and exterior of panels feature 26 gauge steel with a corrosion-resistant embossed stucco coating. The 4” thick panels are filled in with foamed-in-place insulation and have an R-value of 32. The panels that make up the Kold Locker have male and female rails that mate together and foamed-in-place cam locking fasteners secure them tightly. The exterior perimeter is wrapped with a continuous panel gasket without cuts or breaks. The floor is made from similar panels to the wall panels but features a smooth aluminum surface for rust resistance. The floor is designed to hold a uniform load of up to 800 pounds per square foot. Both floor and ceiling panels feature foamed-in-place edge caps that will keep things secure for the lifetime of the walk-in.

Kold Locker walk-in units come standard with a 26” wide door, This door is designed with a stepped profile that acts as a barrier decreasing airflow for better energy-efficiency. For a more durable option, you can select the 30” wide door kit that comes with a stainless steel kick plate. This is a free upgrade. Two cam-lift hinges allow the door to open and close smoothly, they are field adjustable to compensate for any settling over the years to make sure the door always opens and closes smoothly while maintaining a proper seal. The door can be ordered hinged on the left or right to best fit your needs. A spring-loaded door closer makes sure the door is never left ajar.

The door comes pre-hung in a 4’ wide panel with a replaceable perimeter heating wire, magnetic stainless steel trim, a digital thermometer, a vapor proof LED lighting fixture and a switch with exterior indicator light. The door can be secured with an NL 9800 deadbolt locking handle with an independent key/padlock feature. To prevent workers from being locked inside, a safety release is included.

The interior temperature can be set as low as -10°F, RCPB075JC-S-4-EV  BTU/hr of cooling is provided by the 6250 Capsule Pak Refrigeration System on the roof of this unit. The Capsule Pak unit comes with the Enviro-Control™ electronic control system to adjust the temperature and set the timing for automatic defrosting. An automatic condensate vaporizer is shipped loose and wired in the field removing the need for a drain line.

Nor-Lake KLF87810-C 8' x 10' x 8'-7 H Kold Locker Indoor Freezer with floor

Kold Locker *Indoor Walk-In Freezers*
Standard Features:
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KLF87810-C

Door width
Door ramp & non-skid strips
Flat freight program
Lift gate delivery
Capsule Pak refrigeration
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
