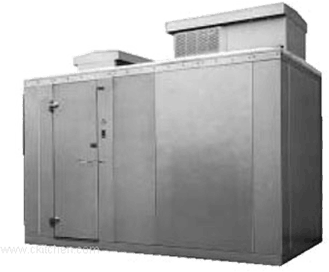

Nor-Lake KODF68-C 6' x 8' x 6'-7" H Kold Locker Outdoor Freezer with floor

KODF68-C
Made in USA
Stock Status
Updating. Please wait...
Free Freight
$16,380.00

for more information

$12,270.96

You will earn 16380 Reward Points.

Product Protection
Coverage starting at
FINANCE

Monthly Payment *

Finance Payment Calculator
$263.70
* The above amount may vary depending on the applicant's credit history.
  • A refrigeration Technician is not required.
  • 2023 model, meets the newest EPA and DOE codes.
  • Our Exclusive FREE extras:
  • Stainless Steel 30'' x 36'' door kick-plate
  • Standard features
  • Full 4” thick panels foamed-in-place with HFC-245fa polyurethane insulation which is CFC and HCFC free
  • Outdoor boxes may have special requirements from your state or municipality (building dept. etc.) Please enquire.
  • Note! Refrigeration systems weigh 175lbs to 350lbs. and may require a hoist. The electrical hook-up may require a licensed electrician.

Nor-Lake KODF68-C Specifications

SeriesKold Locker
BrandNor-Lake
Made inUSA
Temperature-10
Gauge26 Gauge
CategoryWalk In Freezer, Modular, Self-Contained
Compressor LocationTop Mounted
With FloorFloorless
UsageOutdoor
Width (in)72
Height (in)79
Depth (in)96
Weight1377.00

Nor-Lake KODF68-C Description

Kold Locker™, Outdoor -10°F Freezer, 6' x 8' x 6'-7" H, with floor, 26 gauge embossed coated steel interior & exterior finish, self-closing door, locking deadbolt handle, membrane roof, CPF100JC-E-4-EV, R449 Capsule Pak Refrigeration, 208-230v/60/1-ph

The Nor-Lake KODF68-C 6' x 8' x 6'-7" H Kold Locker is a great option for anyone looking for a dependable outdoor walk-in freezer that can stand up to the elements. The 231 cu. ft. interior of this walk-in unit provides users with refrigerated storage options.

The cooler is constructed from 4” thick panels that feature 26 gauge steel with a stucco embossed, corrosion-resistant coating. EPA-compliant foamed-in-place polyurethane insulation is used. For ease-of-installation, each panel has male and female rails that come together to ensure proper alignment. To maintain an air-tight seal between each panel foamed-in-place cam locking fasteners are used. A continuous panel gasket wraps around outer perimeter free from breaks or cuts at the corners. Instead of using overlapping or mechanical fasteners, the ceiling and floor panels’ edge caps are foamed-in-place which will keep them secure for the life of the walk-in.

The stock door that comes with this walk-in unit is 26” wide and features a stepped profile design to provide a barrier to airflow. Two cam-lift hinges are included with the door and can be installed on the right or left. These hinges are field-adjustable to make sure the door swings freely while providing an airtight seal. A spring-assisted door closer is included to keep the door from being left ajar. The door comes pre-hung in a 4’ wide panel with a replaceable perimeter heating wire, magnetic stainless steel trim, a digital thermometer, A vapor proof LED lighting fixture and a switch with exterior indicator light. The door can be secured with an NL 9800 deadbolt locking handle with an independent key/padlock feature. To prevent workers from being locked inside, a safety release is included.

A temperature of -10°F keeps items inside this walk-in frozen safely with a top-mounted RCPF100JC-E-4-EV Capsule Pak Refrigeration System producing 3220 BTU/hr of cooling. The refrigeration system is controlled by the Enviro-Control™ electronic control system which sets the temperature, defrost timer, and can be used to manually start a defrost cycle. The roof is protected from the weather with a 35 mill white membrane roof material that requires no seaming or gluing. The weatherproof membrane is held in place with metal trim flashing that is held in place by self-drilling, self-tapping TEK screws.

Nor-Lake KODF68-C 6' x 8' x 6'-7 H Kold Locker Outdoor Freezer with floor

Kold Locker *Outdoor Walk-In Freezers*
Standard Features:
  • STANDARD MODELS SHIP THE SAME DAY
  • DOE compliant
  • USDA accepted
  • Magnetic gasket
  • 15 year panel warranty
  • Cooler or freezer models
  • Indoor or outdoor models
  • 26" wide, self-closing door
  • CN UL flame spread listed
  • Perimeter door heater wire
  • Floor double sweep gasket
  • Spring actuated door closer
  • Sizes from 4' x 6' to 10' x 14'
  • Two temperatures: +35°F, -10°F
  • 18 months parts & labor warranty
  • Digital thermometer and light switch
  • Heavy duty adjustable cam-lift hinges
  • Three heights: 6'7" & 7'7" with floor; 7'4" floorless
  • Air-cooled condensing unit (wall mount - 10 day ship)
  • Smooth aluminum interior floor (on models with floor)
  • Floorless models supplied with NSF listed vinyl sealers
  • Oregon State listed, City of Houston listed & California State listed
  • Automatic condensate vaporizer. No drain line required on indoor units
  • Capsule Pak™ refrigeration system (ceiling or wall mount) (ordered separately)
  • Full 4" thick panels foamed-in-place with EPA-compliant polyurethane insulation
  • Deadbolt locking handle with independent key/padlock feature and inside safety release
  • Time clock or electronic control provided for automatic defrost on both coolers and freezers
  • 26 gauge corrosion resistant stucco embossed coated steel on all surfaces except interior floor
  • NSF, UL flame spread 25 or less on all foam cores; UL and CSA electrical listing on door sections
  • UL, C-UL listing on complete Capsule Pak™ refrigeration systems (see page 11 for listed components)
  • High output low profile LED light positioned above the door to prevent interference with shelving or product
Indoor Models
  • Hot gas condensate vaporizer available on many models
Outdoor Models
  • Refrigeration hood
  • -20°F ambient controls
  • White membrane roof and trim
Optional Features
  • Exterior ramp
  • Electric vaporizer
  • Floor tread plate kit
  • U-shaped shelving system
  • Door hood (outdoor models)
  • Five year compressor warranty
  • Condensing unit air deflector kit
  • Heights: 8'7" with floor, 8'4" without floor
  • Leak detector/alarm (may be a requirement in some areas)
  • Heater kit for outdoor use where ambient conditions may go below 32°F
  • Note: (Most options are available two weeks from receipt of order. Please contact us for specific questions)

Options for Nor-Lake KODF68-C

Door width
Celsius thermometer, lights & trim
Door rain hood
Door ramp & non-skid strips
Flat freight program
Lift gate delivery
NOTE:
What is included
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • NOTE:: Outdoor walk-ins shipping to the state of Florida or any other area requiring hurricane wind load ratings are NOT INCLUDED in the Kold Locker™ program, please contact factory for pricing
  • Panel warranty: 15 year original equipment panel warranty
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Compressor warranty: 18 Month Labor/Service and original equipment parts warranty
Door hinging
