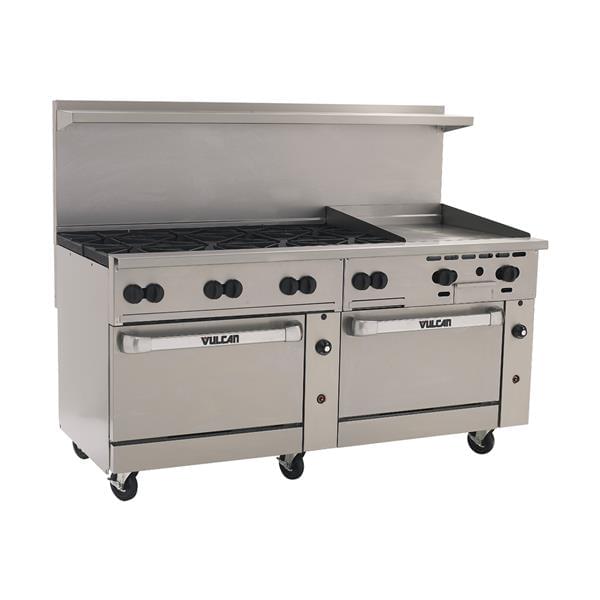

Vulcan 72CC-8B24GT Endurance" Restaurant Range

Specs
Brand	Vulcan
Vent	Backriser With Hi-shelf
Energy Efficiency	Best in Class
Oven Type	Standard
Quantity of Burners	8
Legs	6" adjustable legs
Exterior Finish	Stainless Steel Front & Sides
Base	Standard Oven
BTU/Burner	30000
Controls	Thermostatic
Category	Range, 72" Restaurant, Gas
Heat	Gas
Range Configuration	Burners
Width (in)	72
Height (in)	72
Depth (in)	35.38
Weight	1170

Specs

Brand

Vulcan

Vent

Backriser With Hi-shelf

Energy Efficiency

Best in Class

Oven Type

Standard

Quantity of Burners

Legs

6" adjustable legs

Exterior Finish

Stainless Steel Front & Sides

Base

Standard Oven

BTU/Burner

30000

Controls

Thermostatic

Category

Range, 72" Restaurant, Gas

Heat

Gas

Range Configuration

Burners

Width (in)

Height (in)

Depth (in)

35.38

Weight

1170

Gas hose

1" X 4' flex hose & quick disconnect with restraining device +$675.40 1-1/4" dia. x 4' flex hose & quick disconnect with restraining device +$826.67 3/4" x 4' long gas flex hose & quick disconnect with restraining device +$500.99

Blow motor voltage

115v/60/1-ph, 4.0 amps, 6' cord and plug, standard

Flame failure device

Spark igniter with flame safety device, for open top burners, thermostatic griddles & oven pilots +$455.56 Spark igniter with flame safety device, for open top burners, thermostatic griddles & oven pilots (one required per 12" section) +$453.82

Standard warranty

1 year limited parts & labor warranty, standard

Salamander

Salamander Broiler, Electric, 36" wide, dual temperature controls, six-position adjustable grid, removable drip pan, stainless steel top, front &, sides, 208v/3-ph (Field convertible to 1-ph) +$3,822.78 Salamander Broiler, Electric, 36" wide, dual temperature controls, six-position adjustable grid, removable drip pan, stainless steel top, front &, sides, 240v/3-ph (Field convertible to 1-ph) +$3,822.78 Salamander Broiler, Electric, 36" wide, dual temperature controls, six-position adjustable grid, removable drip pan, stainless steel top, front &, sides, 480v/3-ph (Field convertible to 1-ph) +$4,175.17 Salamander Broiler, gas, 36" wide, 30,000 BTU heavy duty infrared burner, dual control, (6) grid positions, removable pan, stainless steel front, top and sides, 3/4" gas rear connection & pressure regulator +$2,977.43 Salamander Broiler, gas, 36" wide, 50,000 BTU heavy duty burner, dual control, (6) grid positions, removable pan, stainless steel front, top and sides, 3/4" gas rear connection & pressure regulator +$2,649.97

Notes

NOTE: Specification subject to change without notice NOTE: View specification sheets for features and benefits

Backriser

10" Stub back, for 72" ranges, stainless steel +$660.27 Stainless steel backriser and lift-off high shelf, standard

Oven rack

Extra oven rack, 26", guides are included (shipped in separate carton) +$121.01

Griddle options

Griddle on left side, in lieu of right side +$323.01 Griddle on right side, standard

Gas type

Gas type to be specified LP gas (add -2 suffix) (specify elevation if over 2,000 ft.) Natural gas (add -1 suffix) (specify elevation if over 2,000 ft.)

Accessories

Condiment Rail, for 72" ranges +$557.05 Convert a rear open top burner to a step-up rear open top burner (1-12" section) Factory installed option +$281.19 Cutting Board, for 72" ranges +$1,063.37 Fryer Shield, left +$197.55 Fryer Shield, right +$197.55 Spark Ignition with flame safety device for Open-Top Burners /Griddles (per 12" section) +$612.50 Towel Bar, for 72" ranges +$562.38

Extended warranty

K-12 School Nutrition extended warranty extends the warranty for 12 months beyond the 12 month Original Equipment Warranty, not to exceed 24 months from date of installation K12 School Nutrition extended warranty extends the warranty for 12 months beyond the 12 month Original Equipment Warranty, not to exceed 24 months from date of installation. Optional extended warranty extends the warranty for a period of 12 months beyond the 12 month Original Equipment Warranty, not to exceed 24 months from date of installation +$1,039.60

Mounting options

Adjustable casters +$561.50 Casters (set of 8) +$447.59 Flanged feet, seismic legs (8) (shipped in separate carton) +$291.87
